Monitor connector panels

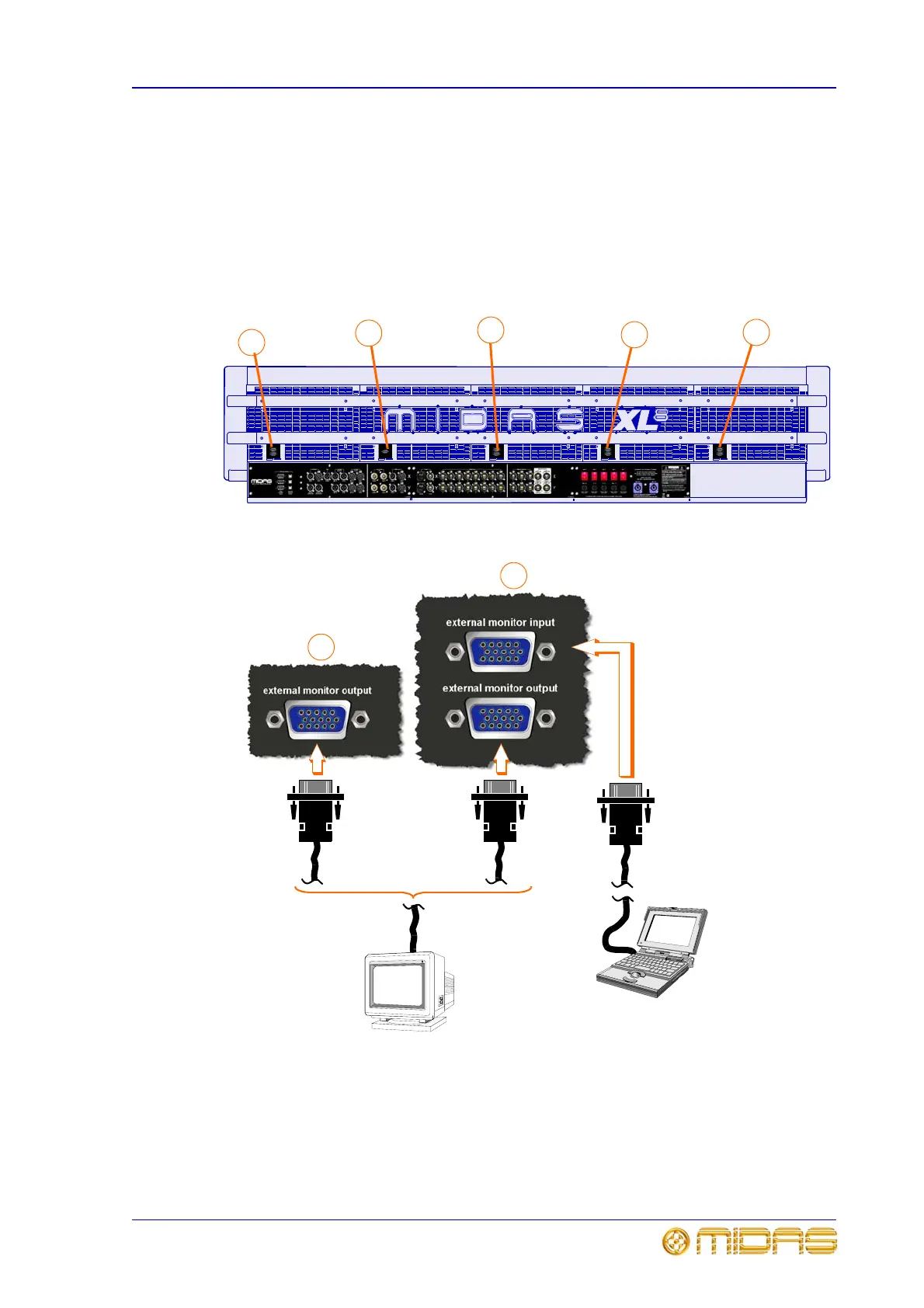

There are five connector panels on the rear of the control centre - one per bay - that
each contain two 15-way D-type connector(s), except the output bay, which only has
one. These connectors allow you to attach an external monitor or laptop PC/tablet to
the control centre.
By plugging in an external monitor at any of the bays you can view exactly what is
shown on the bay’s GUI. This is generally used for viewing the GUI screen’s display on
a large screen
2
1
1
Laptop PC, tablet etc.
Monitor
2
1
1
1
