150 Chapter 8: Connections, Setting Up And Powering Up
XL8 Control Centre
Operator Manual

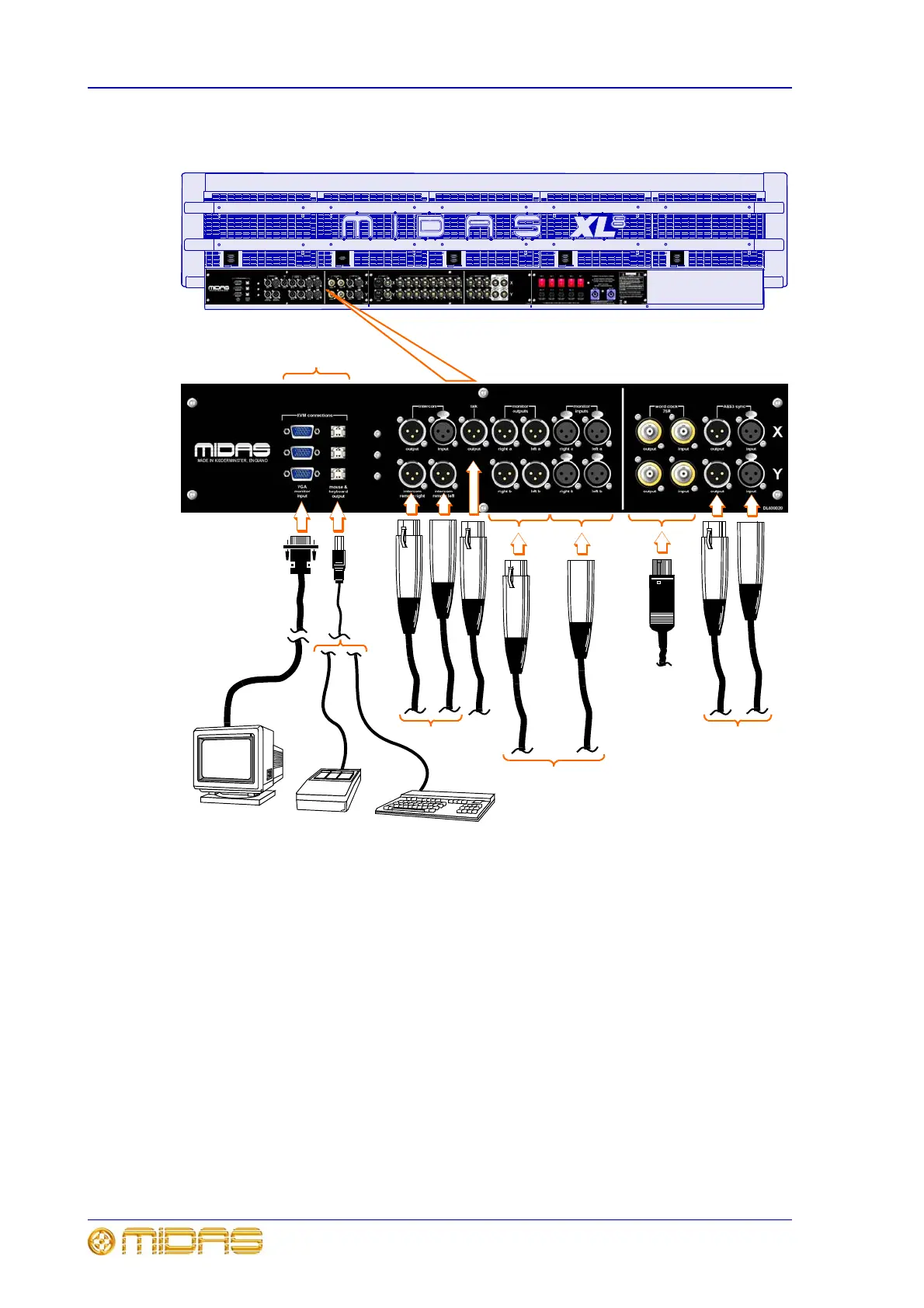

KVM, monitor and synchronisation connector panel
1 Three sets of KVM connections allow
three PCs to be connected to control centre.
Each set comprises a VGA monitor input
15-way, D-type socket and a mouse &
keyboard output socket, which can be used
for connection of a mouse or keyboard.
2 Four intercom sockets comprising an
output (female XLR) and an input (male XLR)
socket, and left and right intercom remote
(female XLR) sockets.
3 talk section has a male XLR output
socket.
4 monitor outputs (female XLR) and
monitor inputs (male XLR) sections each
comprise left a and left b, and right a and
right b connections.
5 word clock 75R section comprises X and
Y input and output BNC cable sockets for
synchronisation with routers.
6 AES3 sync section comprising X and Y
input (female) and output (male) XLR
sockets.
1
2
3
4
5
6
Monitor
Mouse
Keyboard
