GUI menu flowchart 121
XL8 Control Centre
Operator Manual
GUI menu flowchart

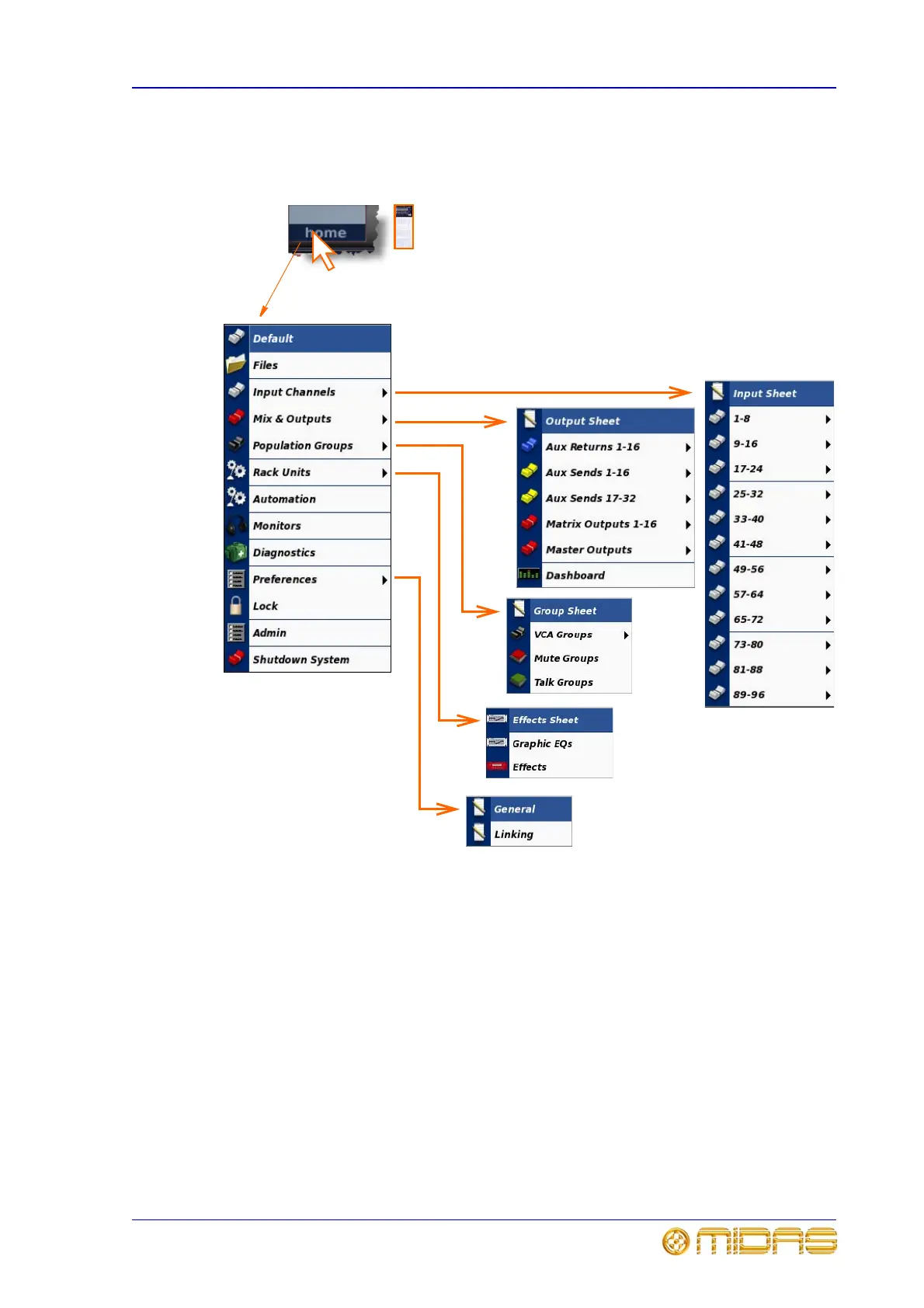

The following diagram shows all of the available GUI menu and submenu options.
In the “Input Channels” and “Mix & Outputs” options above, when selecting (clicking
on) one of the banks of channels in their submenus (shown above right), for example,
“57-64” or “Aux Sends 17-32”, the GUI channel strip in the subsequent screen will be
blank. However, if a single channel is selected from a sub-submenu, for example, input
channel 5 (IN5), the detail area already in the channel strip will be retained for the new
selection.
