232 Chapter 11: Graphic Equaliser (GEQ)

XL8 Control Centre

Operator Manual

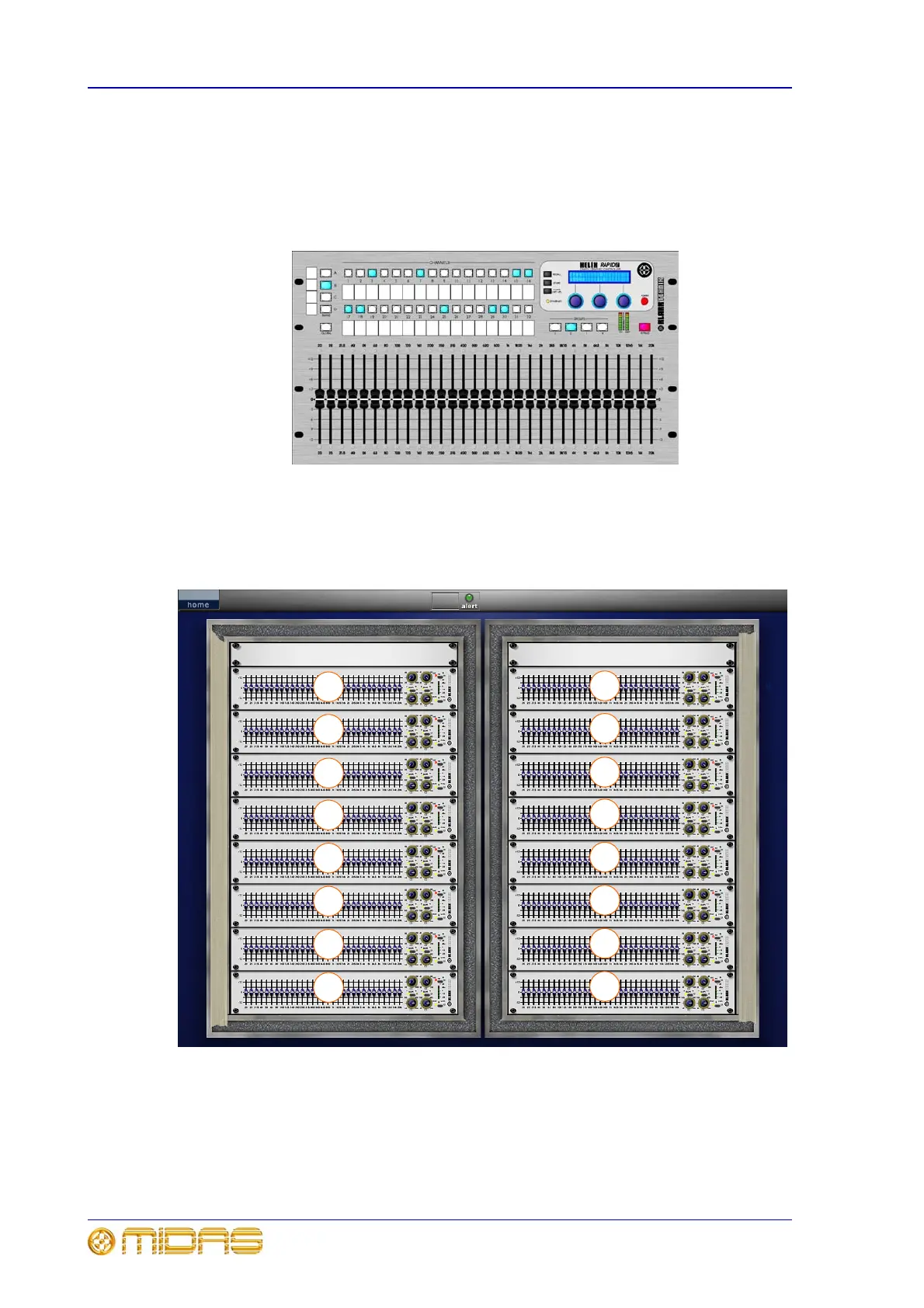

Using a RapidE with the GEQs

The 16 GEQs on the XL8 Control Centre can be controlled remotely from a Klark Teknik

DN9331 RapidE Graphic Controller (shown below). Any of the RapidE’s 128 channels

(4 banks of 32 channels) can be dedicated to any one of the GEQ units shown on the

GUI.

GEQ channel number allocation

Each GEQ unit in the GEQ rack (on the GUI) is allocated a channel number, which is

recognised by the RapidE unit, as shown in the following diagram.
