Midas XL8

58 Chapter 4: Input Bays
XL8 Control Surface
Operator Manual

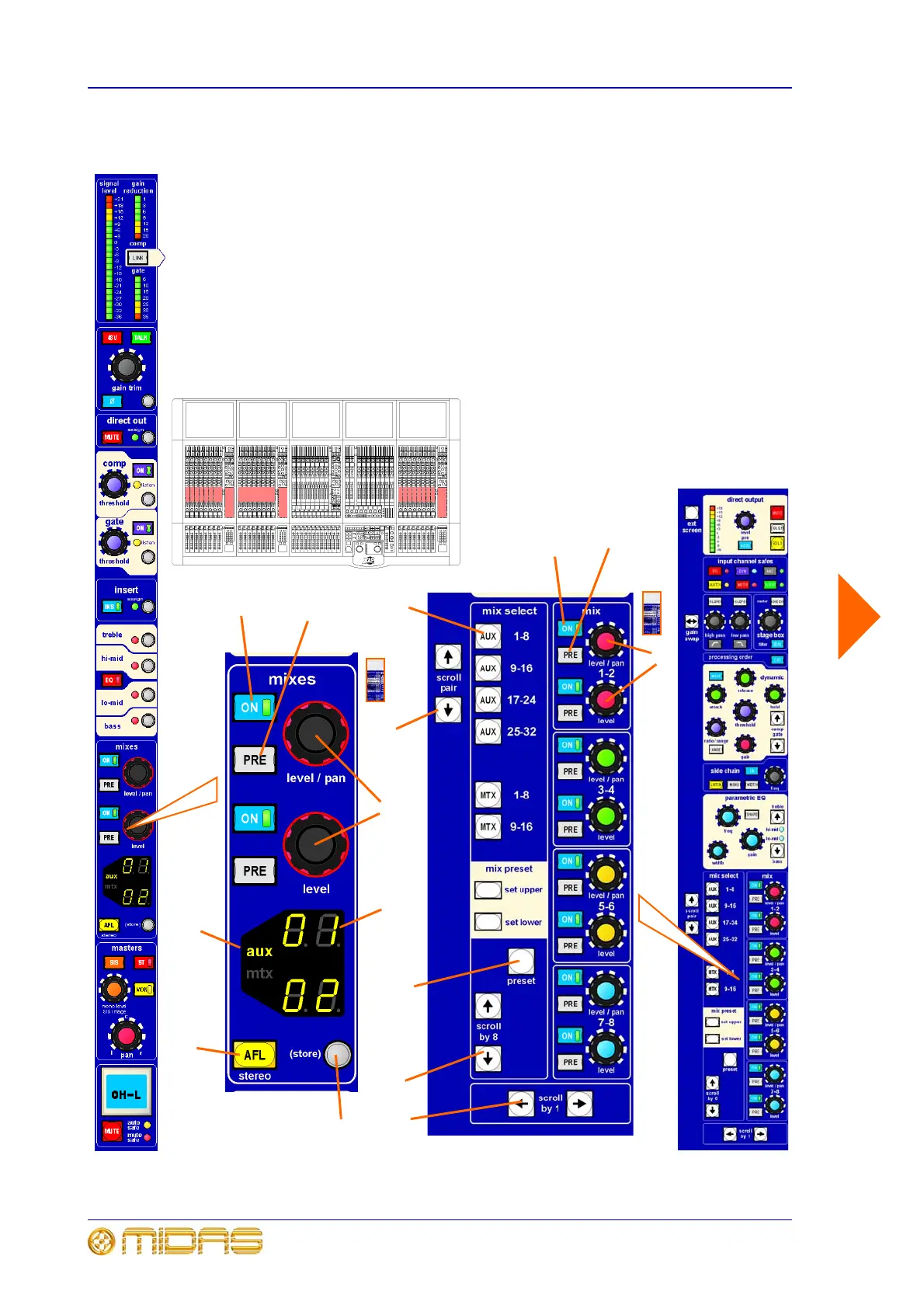

Auxes and matrices
Each input channel can send a variable contribution to each of the 32 auxes (aux sends)
and 16 matrix buses, which is done via eight rotary controls.
The control surface and GUI begin by addressing auxes 1 to 8, as indicated by the
AUX 1-8 mix select button illuminating. In addition, top two auxes (1 and 2) will be
assigned to the mixes section in the input fast strips. A faster way to select a particular
bank of eight auxes is to press the mix select button directly. There is also a pair of
scroll by 8 buttons to scroll in banks of eight.
Each aux has a level control knob, and ON and PRE switches. Additionally, each pair
of sends has an AFL switch in the input fast strip.
11
7
10
1
2
3
6
8
1
9
4
7
6
5
12
