Master overview strips 99
XL8 Control Surface
Operator Manual

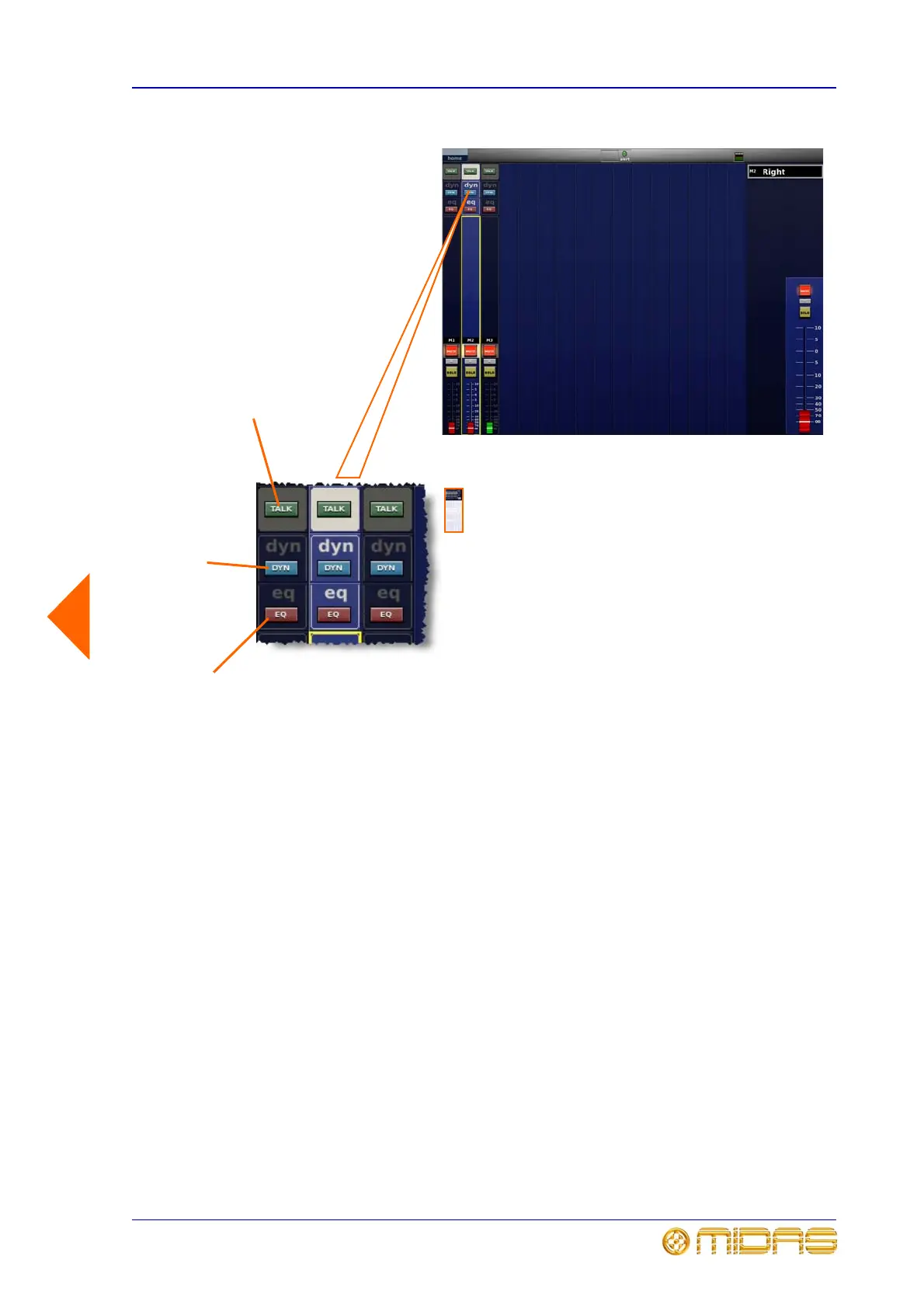

1 meters PRE changeover switch switches meters,
under global command, so that they show the level at
the summing bus input point.
2 EQ switches for left and right channels (stereo)
or single channel (mono) that switch EQ on/off. Each
have and integral LED that illuminates to show that
switch is on.
3 listen LEDs illuminate to show that listen is
active in output detail area.
4 DYN switches for left and right channels (stereo)
or single channel (mono) switch the dyanmics on/off.
Each have and integral LED that illuminates to show
that dynamics is on.
5 TALK switch for left and right channels (stereo)
or single channel (mono). If the TALK/internal in
talk mic section (see page 107) is on, these TALK
switches will illuminate to prompt the operator to
select a bus that the talk signals should be routed to.
6 Meters: Each output channel has a 20-segment
level meter, defaulting to monitor post-fader signal
level.
