Output fast strips 103
XL8 Control Surface
Operator Manual

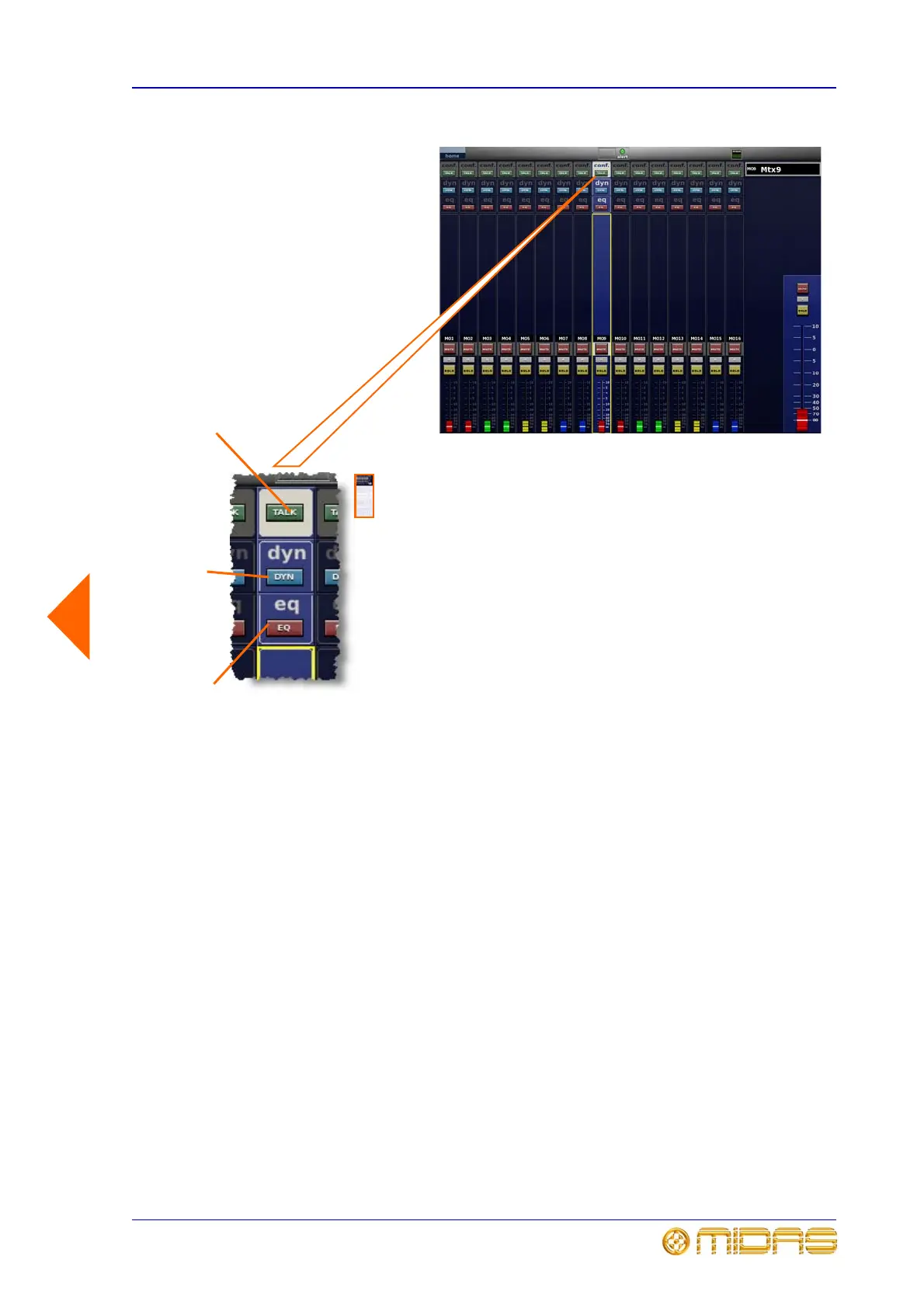

1 Two listen LEDs provide on/off indication
(illuminated/extinguished) when listen is active in
output detail area.
2 Two EQ switches (left and right) switch the EQ
on/off. Each have and integral LED that illuminates to
show that EQ is on.
3 Two DYN switches (left and right) switch the
dyanmics on/off. Each have and integral LED that
illuminates to show that dynamics is on.
4 TALK switches; see “Comms” on page 106. If
the TALK/internal switch in the talk mic section is
on these will illuminate (integral LED) to prompt the
operator to select a bus that the talk signals should be
routed to. These are also used to set up a talk group
after pressing one of the talk/osc routing panel
buttons.
5 kvm switch selects the screen keyboard and
mouse to one of the three sets of external KVM
connections, see “Rear panel connections” on
page 148. To operate this button, press it to switch it
on (button illuminates) and, to switch it off, press it
and hold down until its backlight extinguishes.
6 Meters: Each output channel has a 20-segment
level meter, defaulting to monitor post-fader signal
level.
7 meters PRE changeover switch switches meters,
under global command, so that they show the level at
the summing bus input point..
4
3
2
