14 Chapter 2: XL8 Live Performance System Overview
XL8 Control Centre
Operator Manual

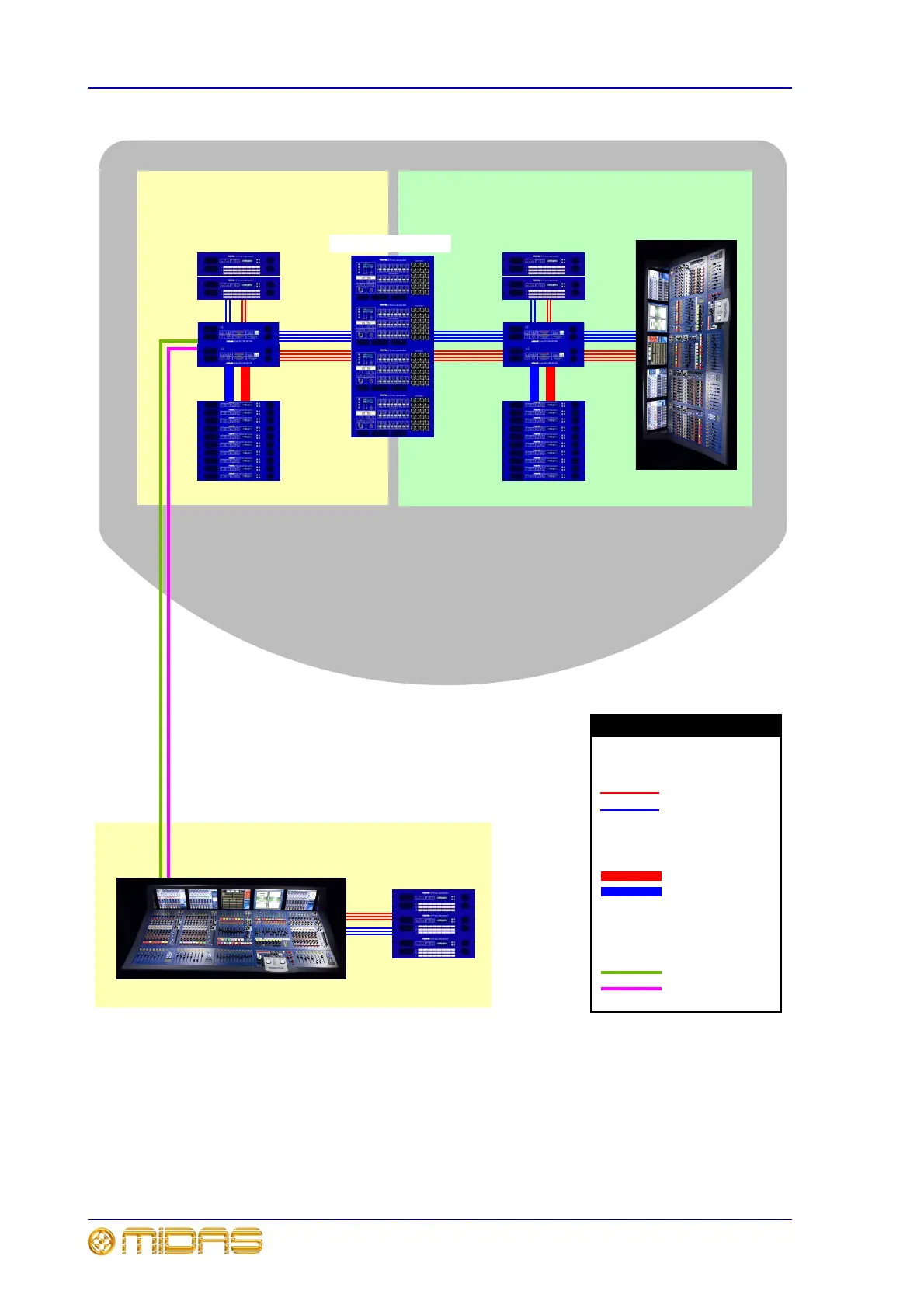

Figure 2: Typical XL8 Live Performance System FOH and MON set-up with
interconnections
Multiple MidasNET links
XL8 Control Centre
Routers
FOH
FOH (on stage)
Stage
Monitor
Mic splitters (shared)
Local I/O units
XL8 Control Centre
DSP units
I/O units (outs)
Key
24-channel bi-directional
MidasNET
Main
Duplicate
Main
Duplicate
192-channel bi-directional
MidasNET trunk link
Main
Duplicate
Routers
DSP units
I/O units (outs)
