16 Chapter 2: XL8 Live Performance System Overview
XL8 Control Centre
Operator Manual

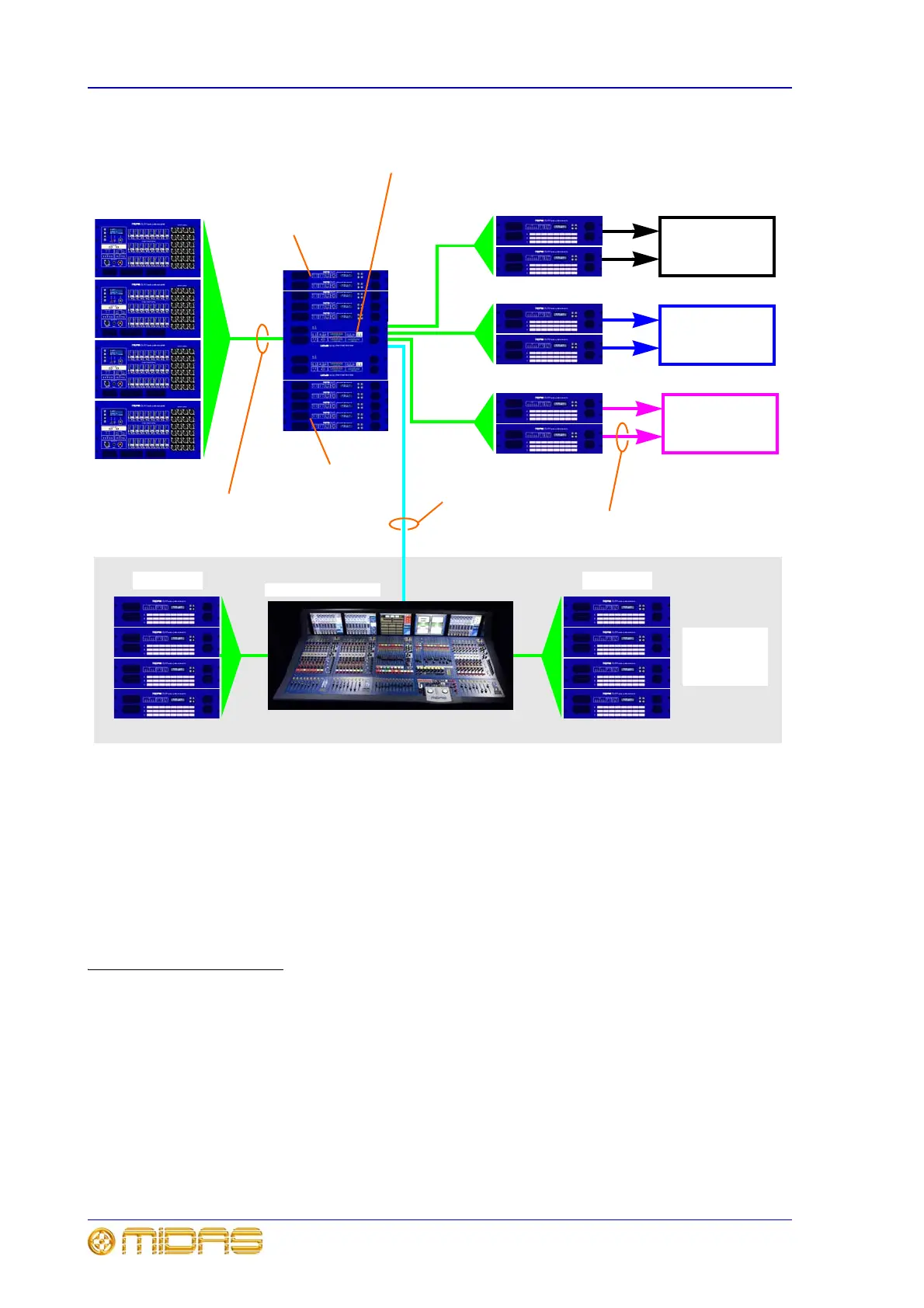

Figure 3: XL8 maximum system capacity (112 mic inputs)
However, the XL8 can have much more than the standard connectivity by adding
DL451 I/O units. As there are nine AES50 connections
1
(fully redundant) available,
potentially, another 432 audio connections can be achieved (subject to other system
limits). This gives a maximum XLR count of 720. Figure 3 shows a system
configuration containing the extra nine DL451 I/O units, but does not show the
redundant duplicated network.
All connectivity is controlled via the GUI.
1. These spare AES50 ports can also be used to directly connect any AES50 equipped units,
such as a hard disk recorder.
5-off DSP
units
Mic splitters
I/O units
XL8 Control Centre
Cat6/optical
‘snake’
2-off routers
5-off DSP
units
192
configurable
I/Os at mix
position
Cat5 cabling
I/O units
I/O units
I/O unitsI/O units
2 x 24 analogue
outputs to
speaker system
2 x 24 analogue
outputs
(remote areas)
48-track
hard disk
recorder
12 x AES/EBU
