Chapter 5 Troubleshooting (Engine Section and USB Controller Section)
5-112
No
Items to be Checked
Action

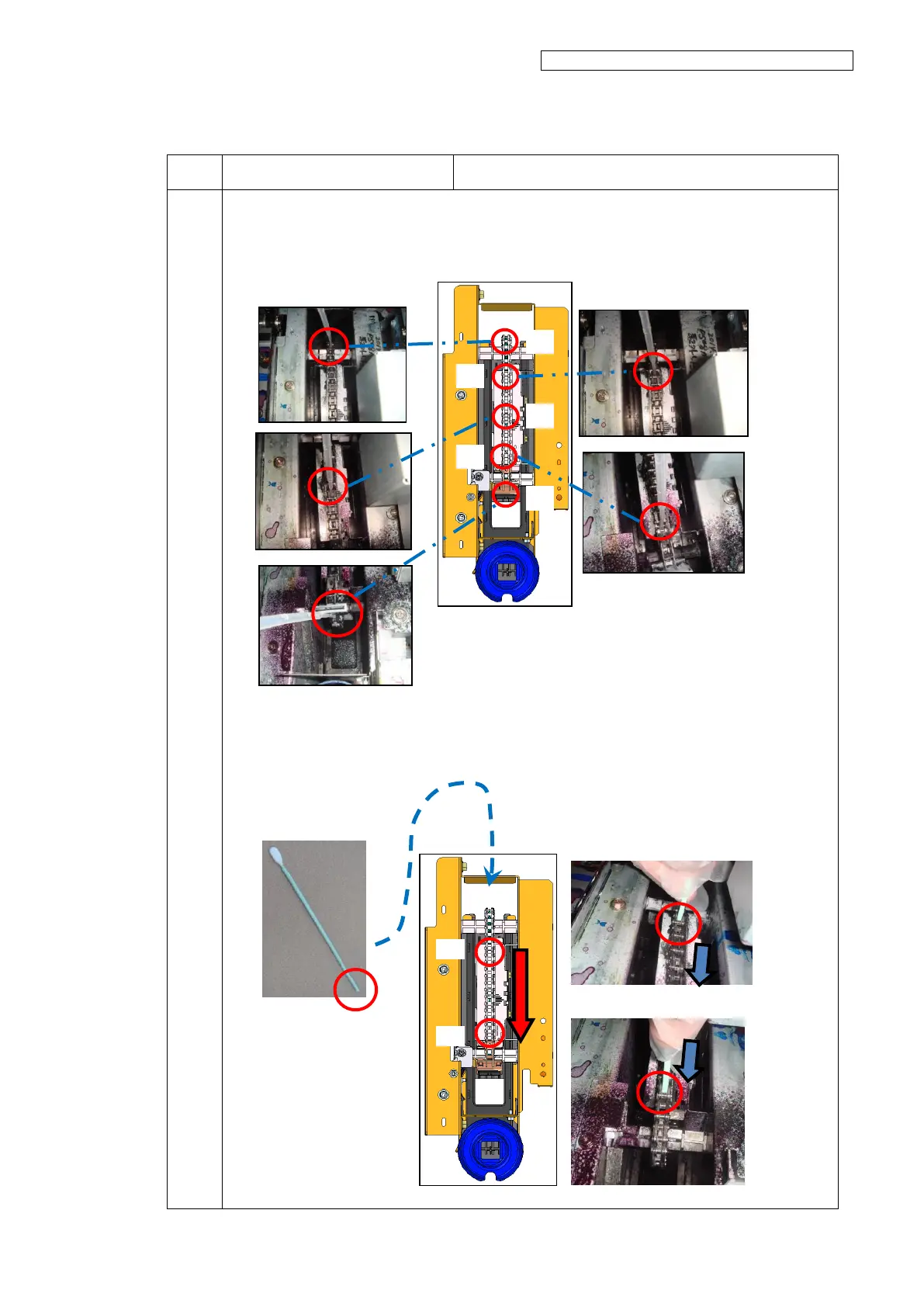

(3) Insert the dropper tip in the area (a) on the chain shown in the figure below, and inject the
sheet mount cleaning liquid.
In the same manner, inject 1 cc of sheet mount cleaning liquid to the areas (b), (c), (d), and
(e) shown in the figure.
(4) Wait 5 minutes.
(5) Insert the cleaning swab handle in the area (b) shown in the figure of the chain below and
move it in the direction of the arrow until it reaches the area (d).
Cleaning swab handle
(b)
(d)
(b)
(a)
(c)
(e)
(d)
