Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-36

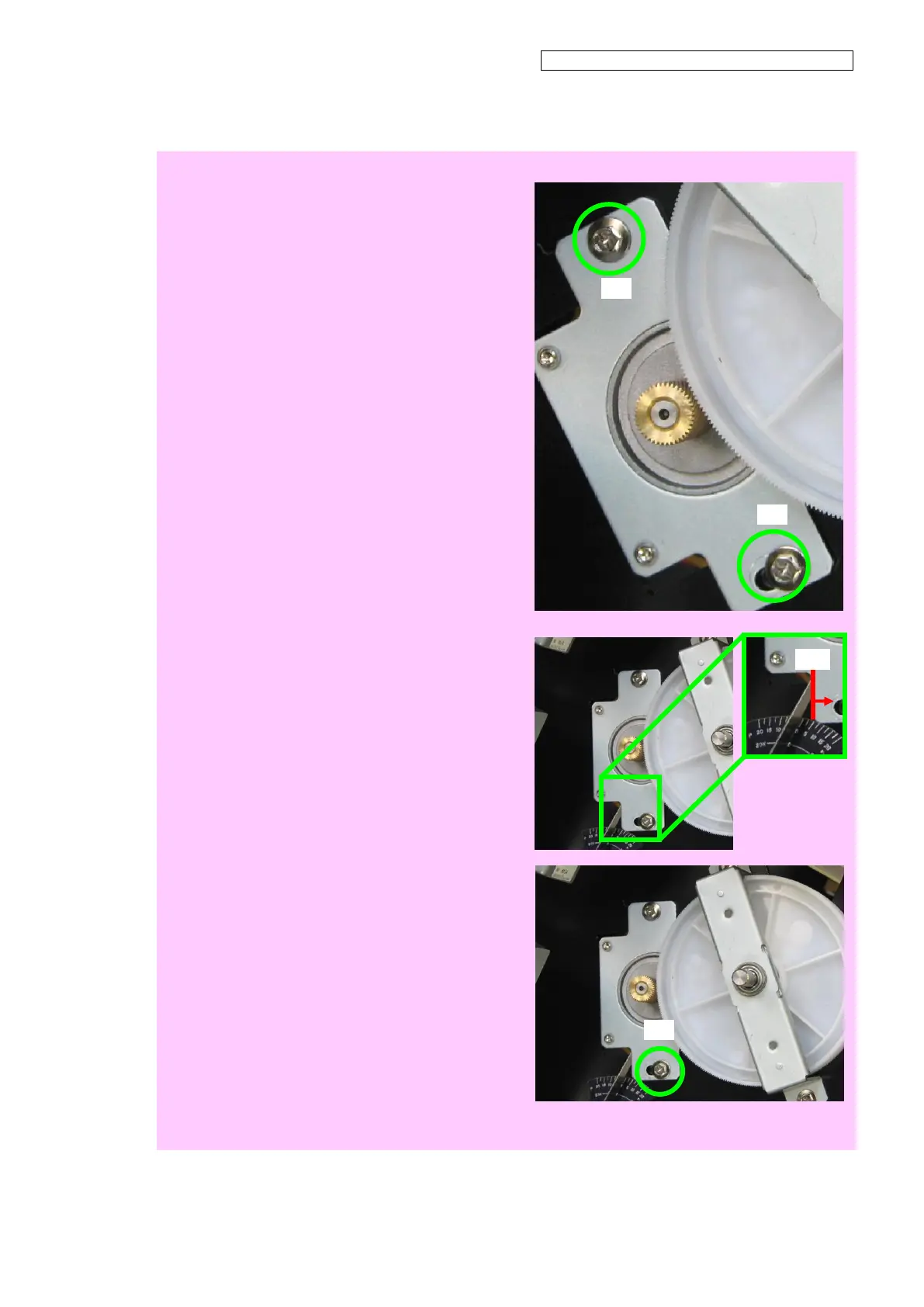

Loosen the screw (1) by 90 degrees.
Loosen the screw (2) by 180 degrees.
Push the part A to the arrow direction with the
fan-shaped tension gauge indicating 5 N to
engage the X-MOTOR-ASSY(with PINION)
and GEAR(GR) teeth.
Note
Do not hit the GEAR(GR) with the fan-shaped
tension gauge.
Scratch on the GEAR(GR) may cause
banding.
Tighten the screw (2) to the torque of 1.5 N･m
(153kg・cm).
