Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-43

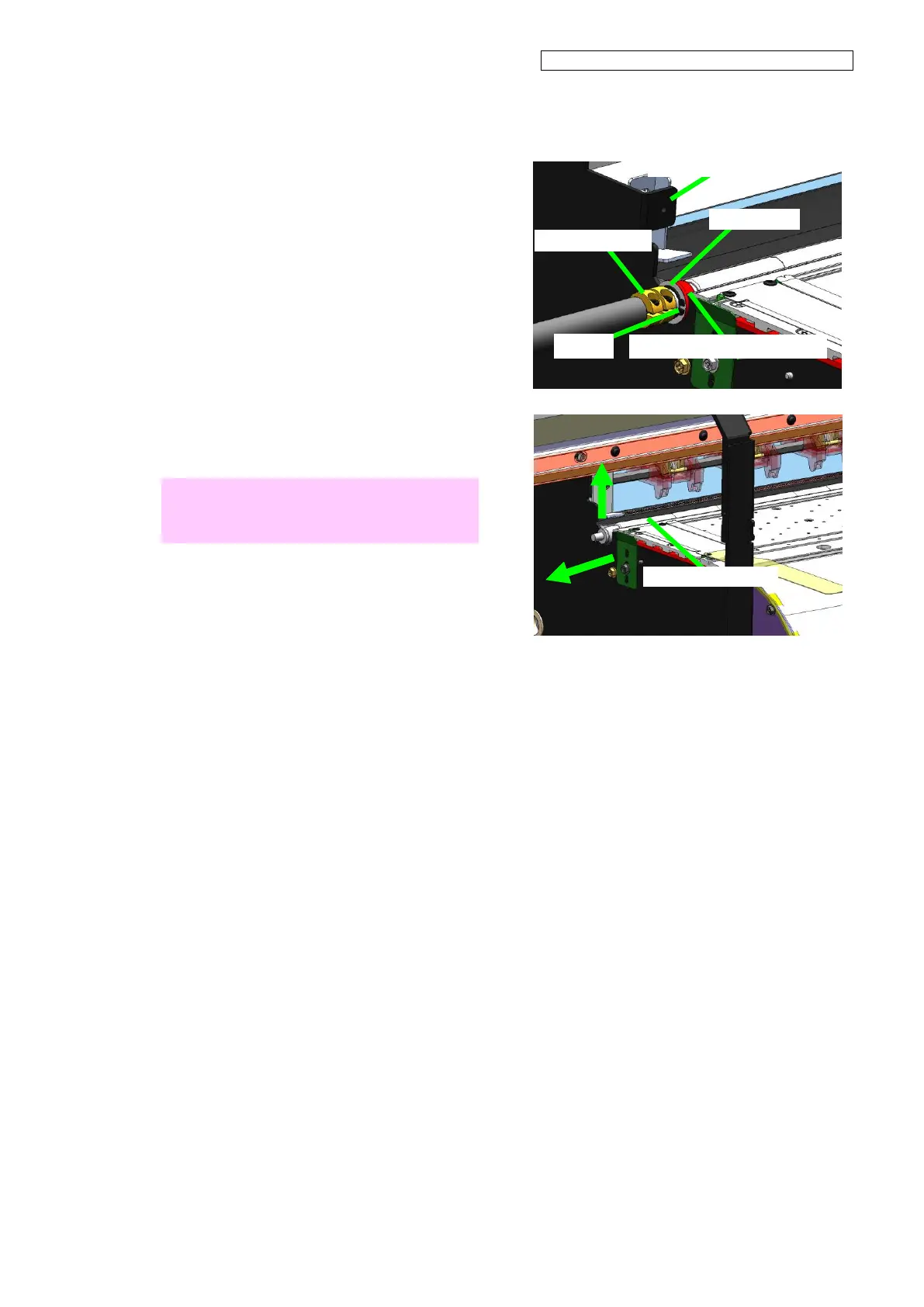

10. Do the same for the left side of the grit
roller. Loosen the screw on the grit roller
joint, and then slide:
- joint;
- retaining ring;
- washer; and
- OILES Glitron SE Flange Bushing
to the outside (the picture shows the
printer after moving the parts).
→ The unit is not secured to the
PLATE-LEFT-1-ASSY-MW anymore.
11. Move the GRIT-ROLLER(MW) upward to
remove it.
Note
Be careful so that the GRIT-ROLLER(MW)
does not get in contact with the platen.
PLATE-LEFT-1-ASSY-MW
OILES Glitron SE flange bushing
C ring
Grit roller joint
Washer
GRIT-ROLLER(MW)
