Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-84

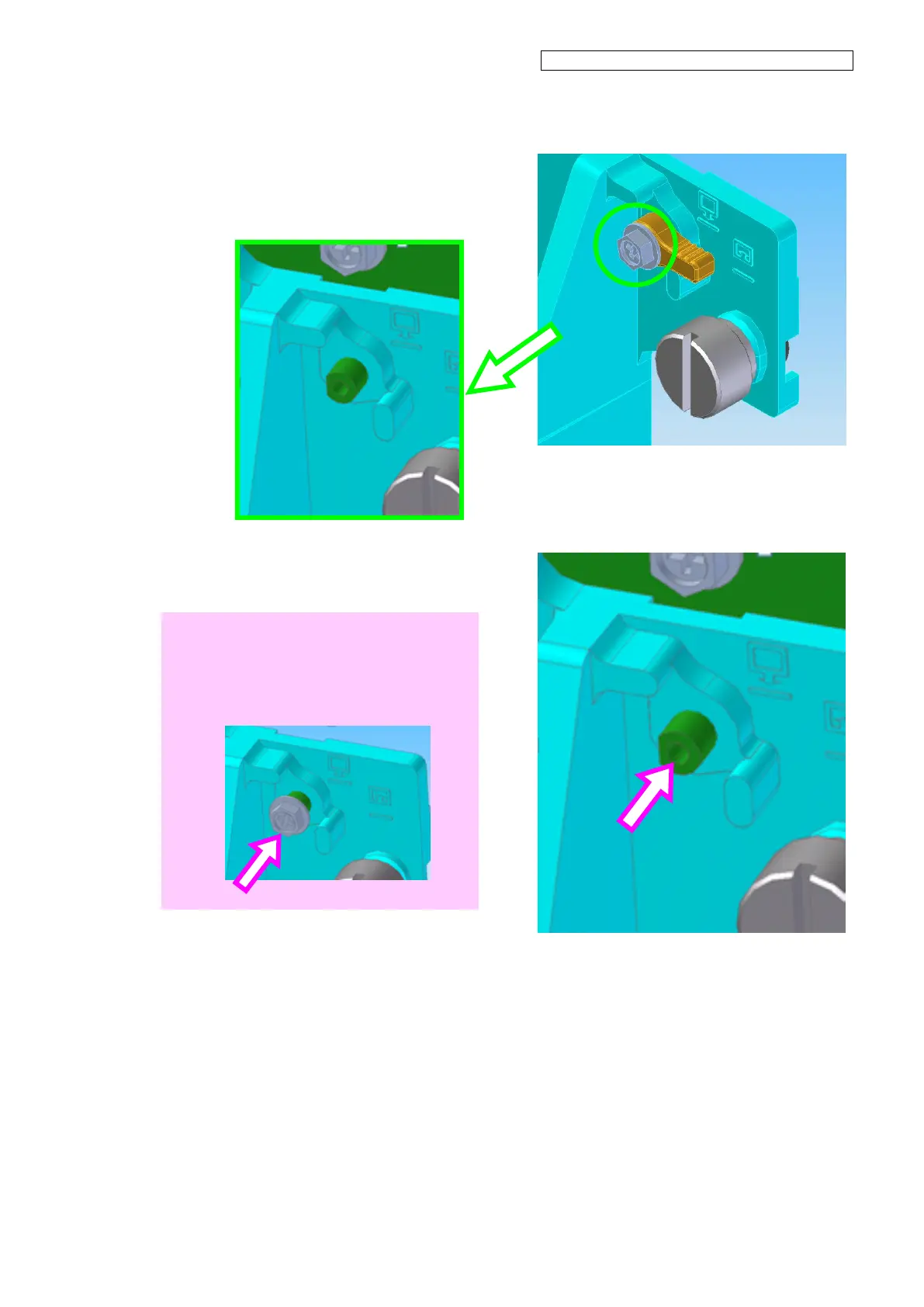

18. Remove the two screws securing the
LEVER-UD (on the right and left), and
remove the LEVER-UD.
19. Push the CAM-UD from the front, and
remove it from the head base.
Note
If the CAM-UD is strongly secured and cannot
be removed, insert a screw inside the
CAM-UD and push it inside while rotating the
screw with a screwdriver.
To Next Page
