OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-85

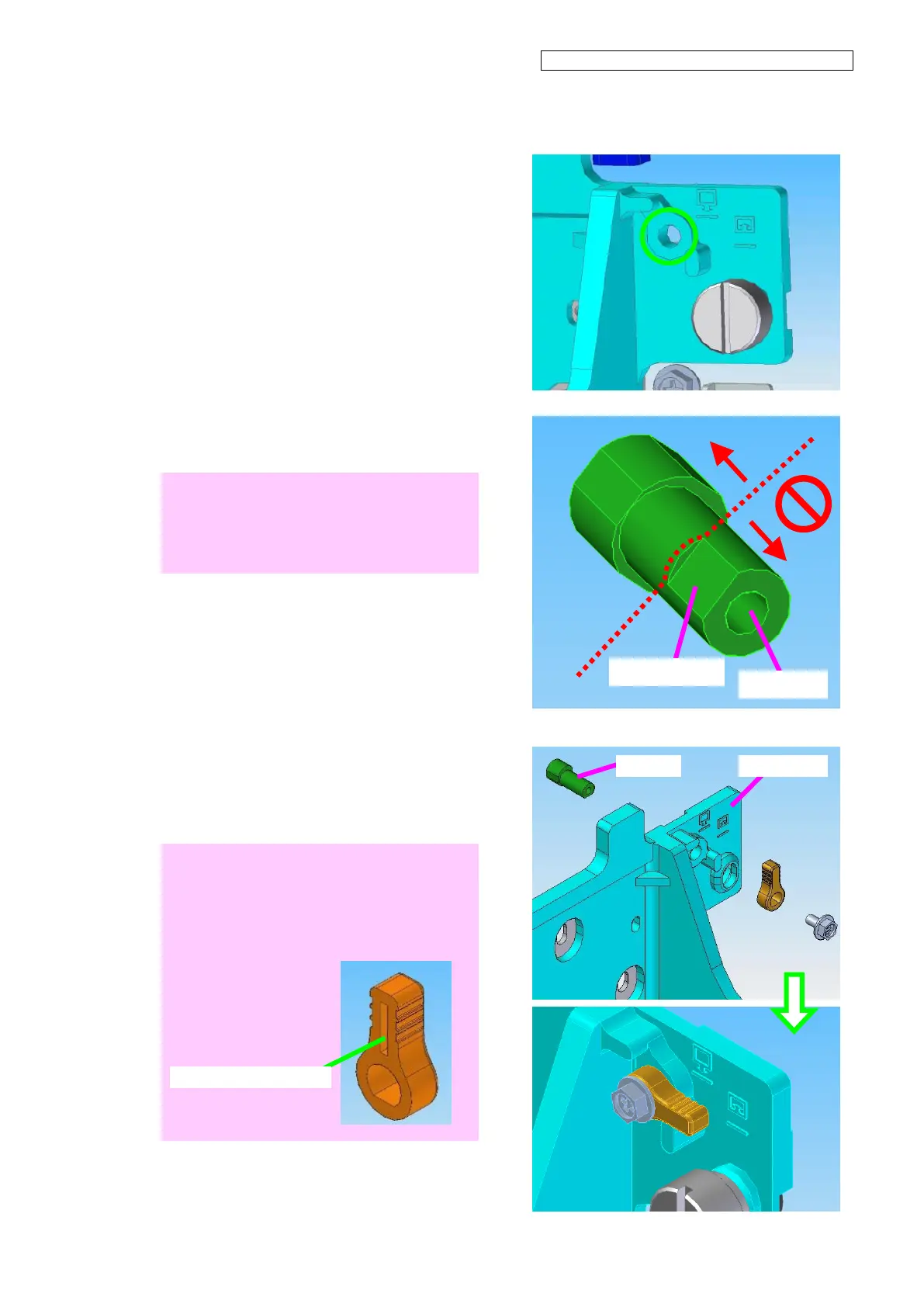

20. Clean the hole (remove metal dust) left
by the CAM-UD removed from the head
base.
21. Apply the supplied grease (EM-60L
GREASE) onto the new CAM-UD.
Note
Do not apply grease on the whole
circumference of the D-shaped surface on the
extremity with the screw hole. The
LEVER-UD will be installed to that side.
22. Insert the CAM-UD from the rear side of
the head base, and tighten the two
screws (on the right and left) to install the
LEVER-UD.
Notes
 Match the D-shaped surfaces of the
CAM-UD and the LEVER-UD.
 The side of the LEVER-UD with the groove
must be placed on the head base side.
CAM-UD
Head base
D-shaped surface
Screw hole
LEVER-UD groove-UD
