OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-145
5. Connect the new filter to the joint and
secure the tube with the two clamps.
Notes
ï‚— Place the front and reverse flat sides of the
filter (silver and white) with the same
orientation as the filter you removed.
ï‚— The orientation of the filter sides changes
between the right and left sides of the
drawer.

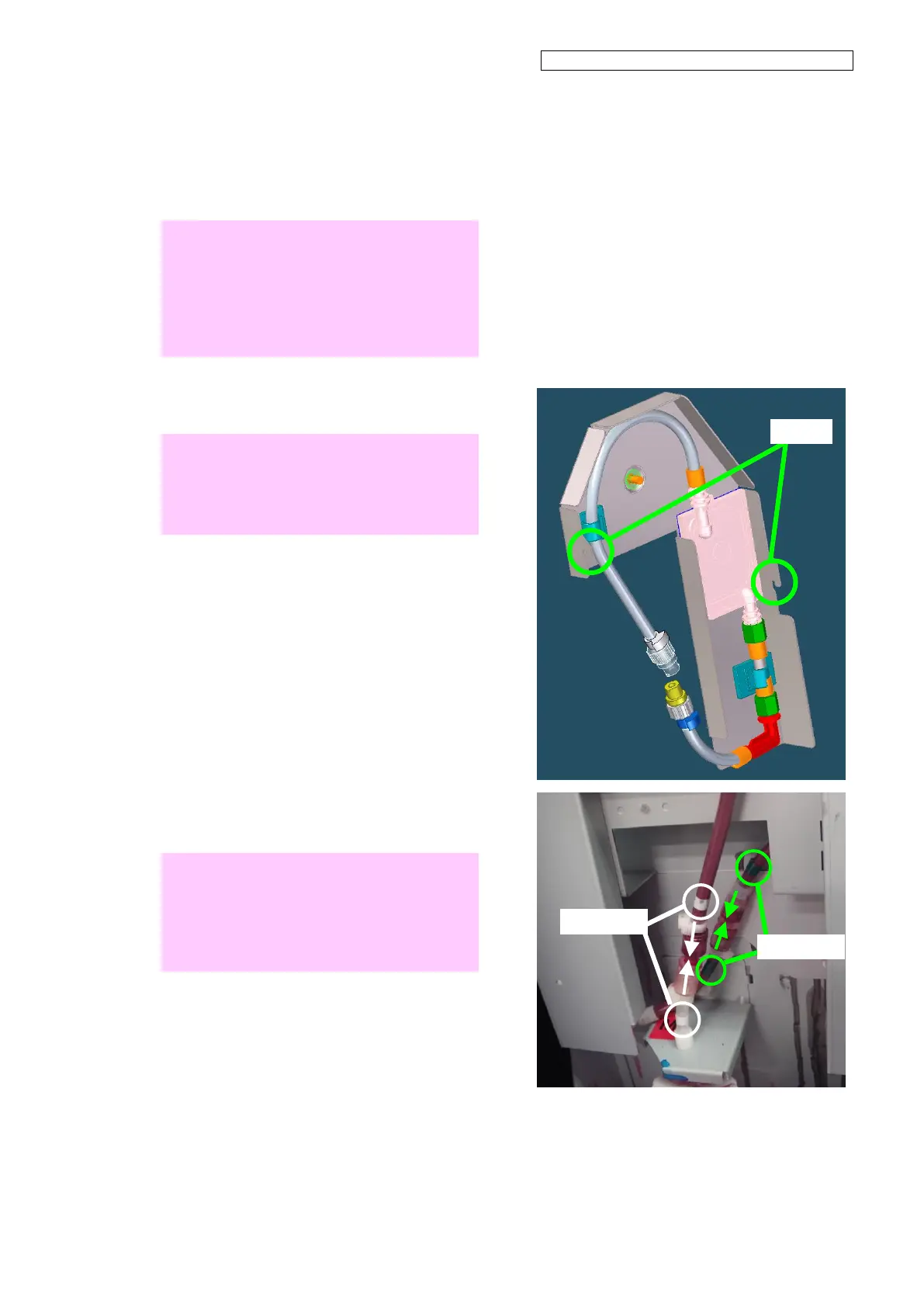

6. Secure the filter module to the drawer.
Notes
ï‚— Always reinstall the filter module to the
same color position.
ï‚— Check that the two tabs on the module
right and left are correctly inserted.
7. Connect the two joints of the filter
module.
Note
Connect the green marks together and the
white marks together when connecting the
joints.
Improper connection may cause damage to
the printer.
8. Close the LCIS unit drawer.
To Next Page
