Chapter 3 Maintenance Mode Functions and Operations
3-54
(b) FEED MEDIA and BACK FEED MEDIA
In the NOZZLE POS ADJ menu, select FEED MEDIA or BACK FEED MEDIA with the Up and
Down buttons.
Hold the OK button pressed to feed or backfeed the media.
Release the OK button to stop feeding or backfeeding and to return to the previous screen.
(c) Nozzle position adjutsment value

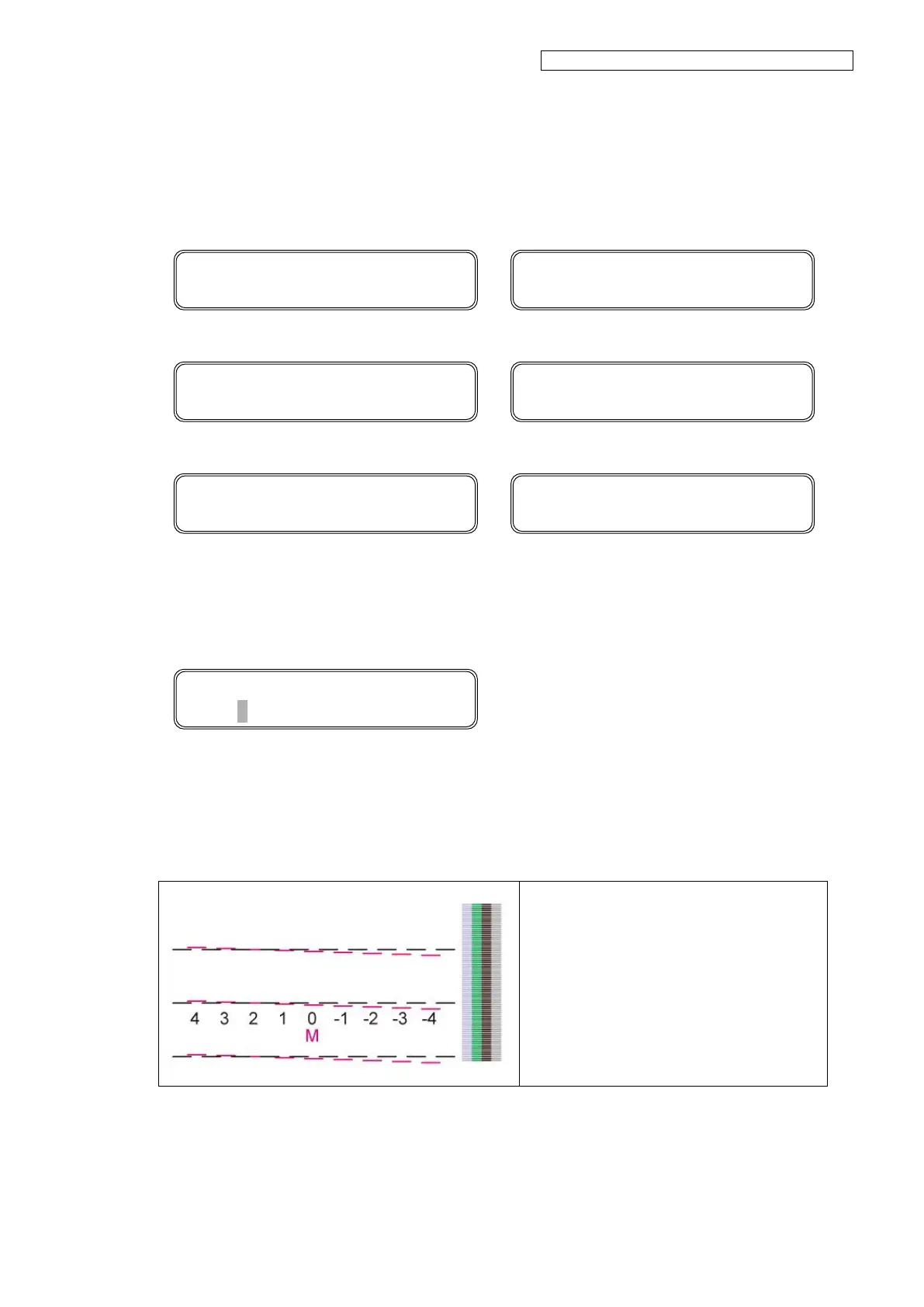

In the NOZZLE POS ADJ menu, select  ±X→±Y with the Up and Down buttons and press the
OK button.
CC: Print head color
±X: Current value
±Y: Value after change
Setting range: -4 to +4
Set the value where the line is aligned with the
K print head line. For example, the line for M is
aligned for +2, so the adjustment value to enter
is +2.
>>>NOZZLE ADJ VAL CC
↕ ±X→±Y ◎
>>NOZZLE POS ADJ
 BACK FEED MEDIA ◎
>>NOZZLE POS ADJ
 FEED MEDIA ◎
BACKFEEDING MEDIA…
FEEDING MEDIA...
>>NOZZLE POS ADJ
 BACK FEED MEDIA ◎
>>NOZZLE POS ADJ
 FEED MEDIA ◎
