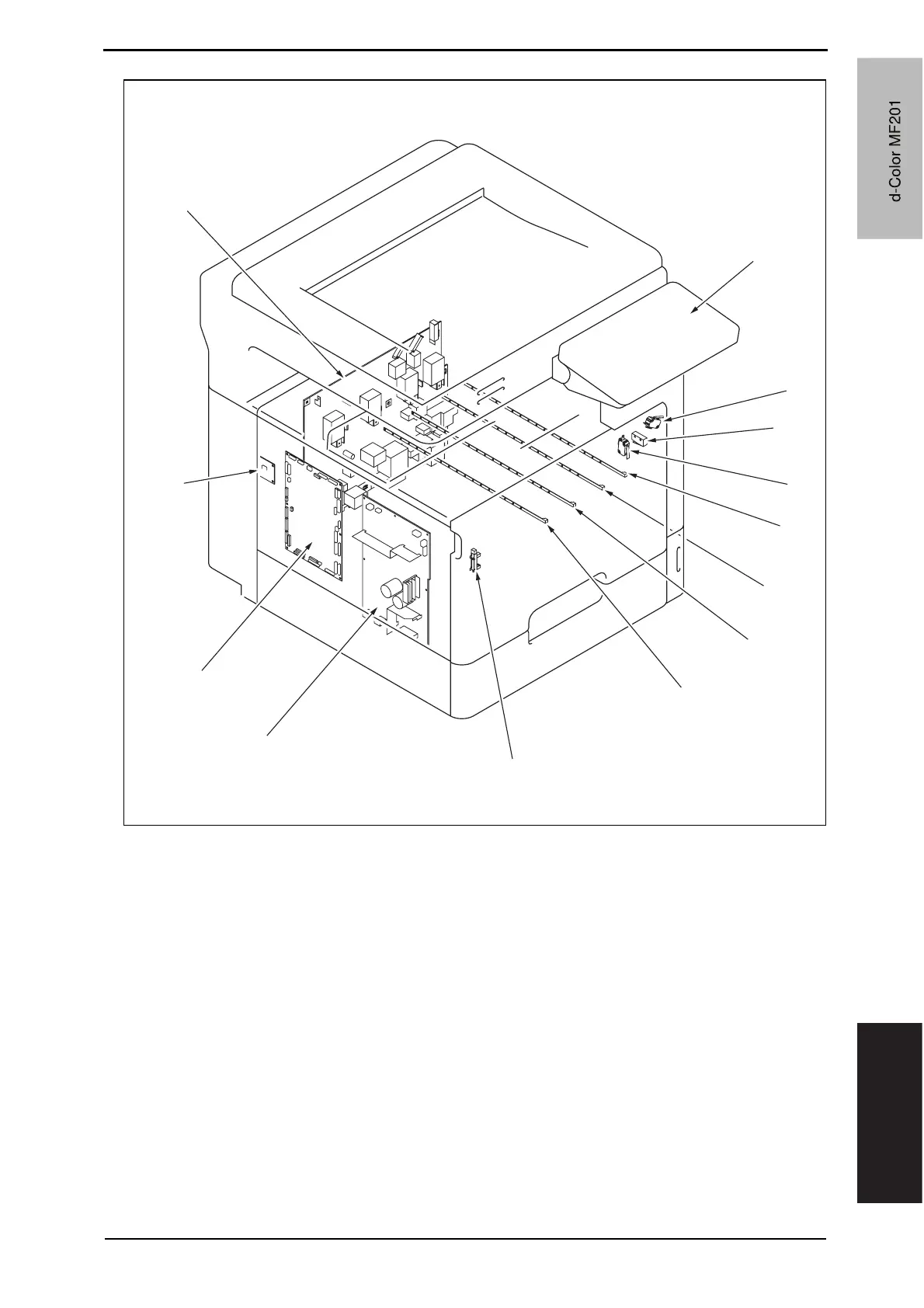

Field Service Ver. 1.0 Jun. 2008 20. Parts layout drawing
365
Appendix
[1] Control panel [8] Erase lamp/Y (EL/Y)
[2] Right door switch (MS5) [9] Waste toner full sensor (PS8)
[3] Front door switch/1 (MS3) [10] DC power supply (DCPU)
[4] Front door switch/2 (MS4) [11] Printer control board (PRCB)
[5] Erase lamp/K (EL/K) [12] Service EEPROM board (SVERB)
[6] Erase lamp/C (EL/C) [13] High voltage unit (HV)
[7] Erase lamp/M (EL/M)
A02FF5C502DA
[13]
[12]
[10]
[1]
[5]
[4]
[2]
[6]
[7]
[8]
[9]
[11]
[3]
d-Color MF201
Y109660-1 Sevice Manual
d-Color MF201
