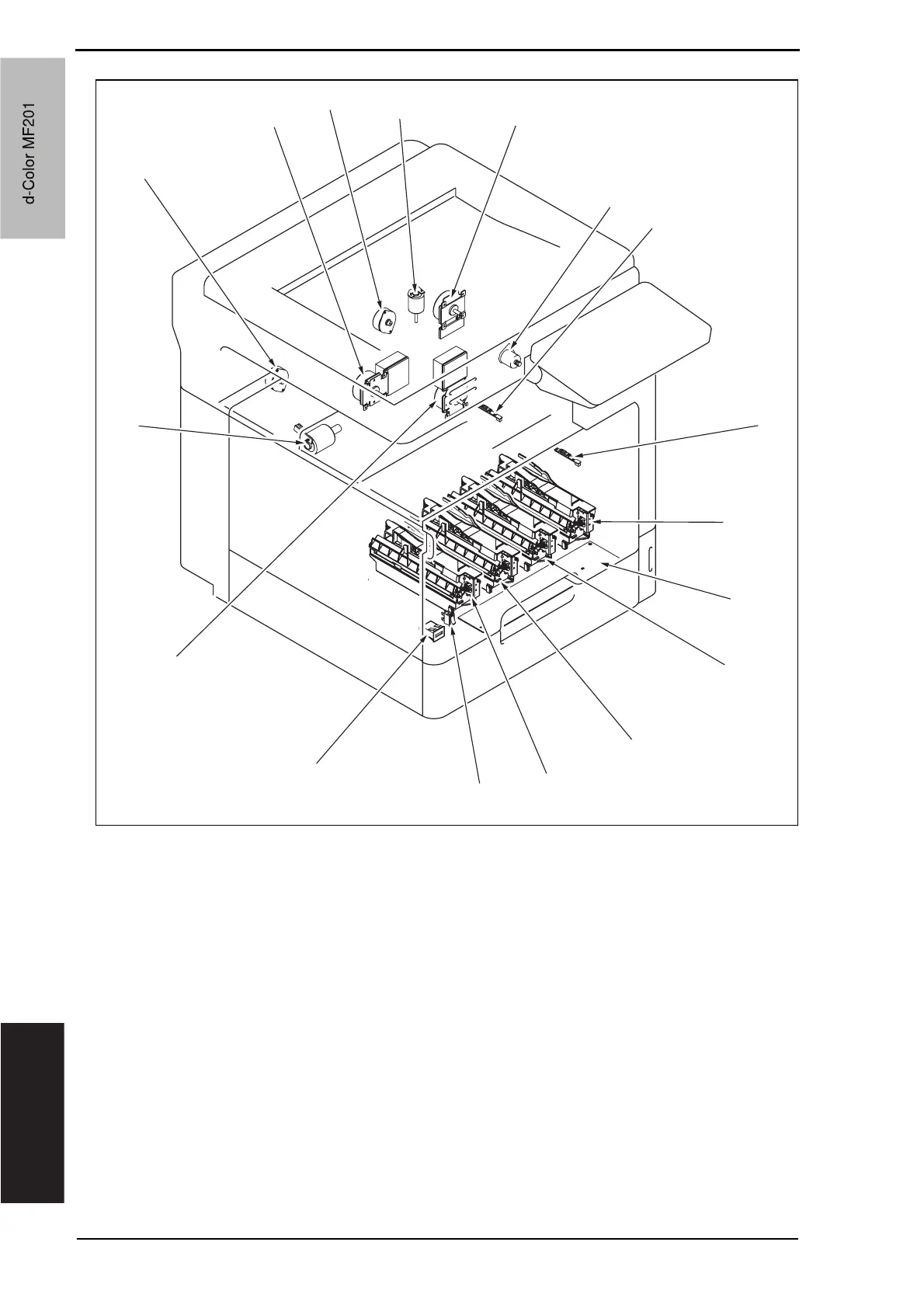

20. Parts layout drawing Field Service Ver. 1.0 Jun. 2008
366
Appendix
[1] Fusing motor (M2) [10] Main power switch (SW1)
[2] 2nd image transfer pressure retraction
motor (M5)
[11] Total counter (TCT)
[3] IDC registration sensor/YC (IDCS/YC) [12] Transport motor (M1)
[4] IDC registration sensor/MK (IDCS/MK) [13] Color dev. unit engaged motor (M4)
[5] PH unit/K [14] Toner supply motor/YM (M6)
[6] PH relay board (REYBPH) [15] Color PC motor (M3)
[7] PH unit/C [16] Toner supply motor/CK (M7)
[8] PH unit/M [17] Fusing pressure roller retraction motor
(M12)
[9] PH unit/Y
A02FF5C503DA
[14]
[15]
[16]
[17]
[11]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[1]
[3]
[2]
[13]
[12]
d-Color MF201
Service Manual Y109660-1
