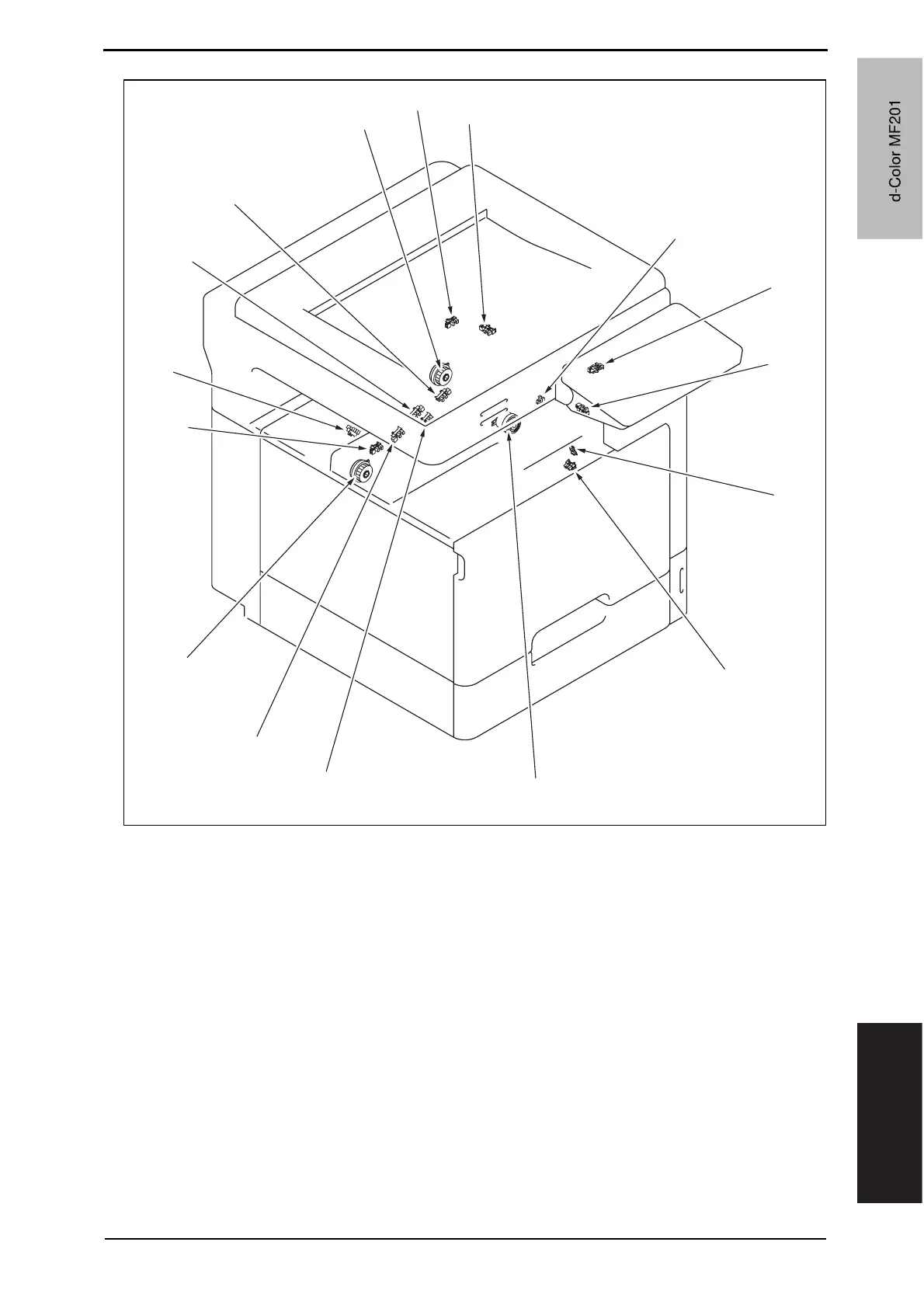

Field Service Ver. 1.0 Jun. 2008 20. Parts layout drawing
367
Appendix
[1] 2nd image transfer welding alienation
sensor (PS36)
[9] Transfer belt pressure retraction clutch
(CL3)
[2] Fusing pressure retraction sensor (PS37) [10] Transfer belt retraction sensor (PS6)
[3] Fusing loop detect sensor (PS3) [11] Color dev. unit engaged position sensor
(PS19)
[4] Temperature/humidity sensor (TEM/HUM) [12] Color PC drive sub sensor (PS17)
[5] Sensor in front of tim. roller (PS1) [13] Black PC drive sub sensor (PS18)
[6] Developing clutch/K (CL4) [14] Tim. roller clutch (CL1)
[7] Black PC drive main sensor (PS16) [15] Fusing pressure home sensor (PS38)
[8] Color PC drive main sensor (PS15) [16] Paper exit sensor (PS2)
