3.
Click the graph in the NTP Status Summary panel.
4.

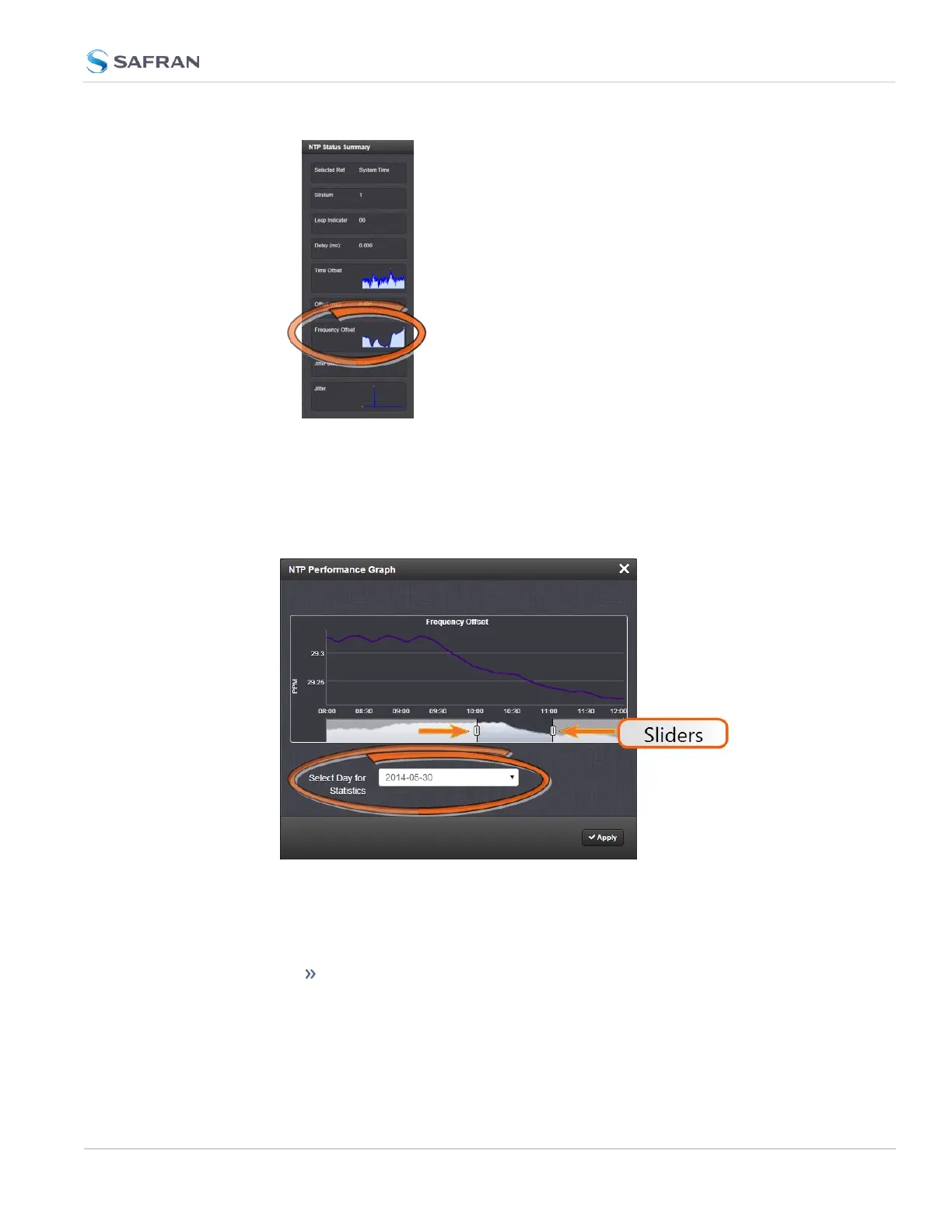

The NTP Performance Graph panel will appear (the data may be displayed
with a delay). The X-axis represents time, the Y-axis shows the frequency
offset in parts-per-million (PPM); e.g. 290PPM is equivalent to
.0290percent.
5. To select the statistics for a particular day, select a date from the drop-
down list in the Select Day for Statistics field (highlighted in green in the
illustration above). The default date is the present date. Click the Apply but-
ton.
To display a higher resolution graph of a shorter time frame, move
one or both of the two sliders inwards.
The NTP Jitter Performance Graph
