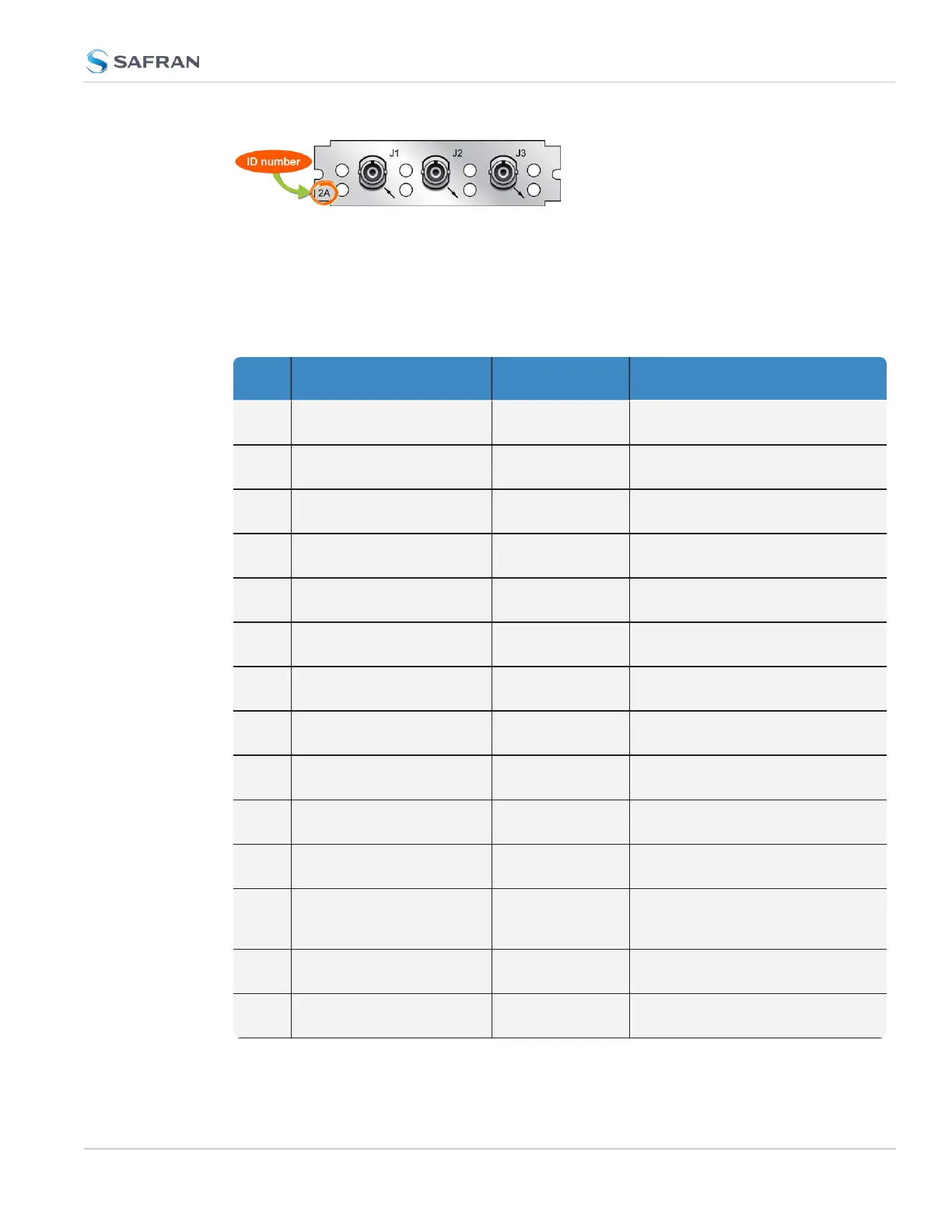

Figure 1-6: Option Card ID number
The table lists all option cards available at the publication date of this doc-
umentation, sorted by their ID number. Locate the option card ID number on its
cover plate, and follow the corresponding hyperlink in the right-hand column.
Table 1-5: Option cards listed by their ID number
Card
ID*
Card Name Name in UI See ...
01 1PPS/freq input (TTL
levels) module
1PPS/Frequency
BNC
"1PPS In/Out, 10MHz In [1204-
01, -03]" on page396
02 ASCII Time Code module
(RS-232)
ASCII Timecode
RS-232
"ASCII Time Code In/Out
[1204-02, -04]" on page483
03 1PPS/freq input (RS-485
levels) module
1PPS/Frequency
RS-485
"1PPS In/Out, 10MHz In [1204-
01, -03]" on page396
04 ASCII Time Code module
(RS-485)
ASCIITimecode
RS-485
"ASCII Time Code In/Out
[1204-02, -04]" on page483
05 IRIG module, BNC (1 input,
2 outputs)
IRIG In/Out BNC
"IRIG In/Out [1204-05, -27]"
on page438
08 5 MHz output module (3
outputs)
5 MHz Out
"Frequency Out [1204-08, -1C,
-26]" on page403
09 T1-1.544 (75 Ω ) or E1-2.048
(75 Ω) module
E1/T1 Out BNC
"T1/E1 Out [1204-09, -0A, -4C,
-53]" on page424
0A T1-1.544 (100 Ω ) or E1-
2.048 (120 Ω ) module
E1/T1 Out Ter-
minal
"T1/E1 Out [1204-09, -0A, -4C,
-53]" on page424
0F Alarm module Relay Output
"Alarm Relay Out [1204-0F]"
on page527
10 HaveQuick output module
(TTL)
HAVE QUICK Out,
BNC
"HAVE QUICK Out [1204-10, -
1B]" on page470
11 STANAG output module STANAG Out
"STANAG Out [1204-11, -25]"
on page454
13 Programmable Frequency
Output module (Sine
Wave)
Prog Freq Out,
Sine
"Programmable Frequency
Out [1204-13, -2F, -30]" on
page406
14 CTCSS, Data Sync/Clock
module ("Simulcast")
Simulcast
"Simulcast (CTCSS/Data
Clock) [1204-14]" on page415
15 IRIG module, BNC (4 out-
puts)
IRIG Out BNC
"IRIG Out [1204-15, -1E, -22]"
on page432
