Fiber Optic Compatibility: 50/125μm, 62.5/125μm multi-mode cable
Optical Connector: ST
Programmable Pulse Width: 100ns to 900ms with 20ns resolution
Absolute Phase Error: ±50ns (1σ)
Programmable Phase Shift: ±5ns to 500ms with 5ns resolution
Maximum Number of Cards: 6
Ordering Information: 1204-12B 1PPS Fiber Optic output module, ST con-
nector

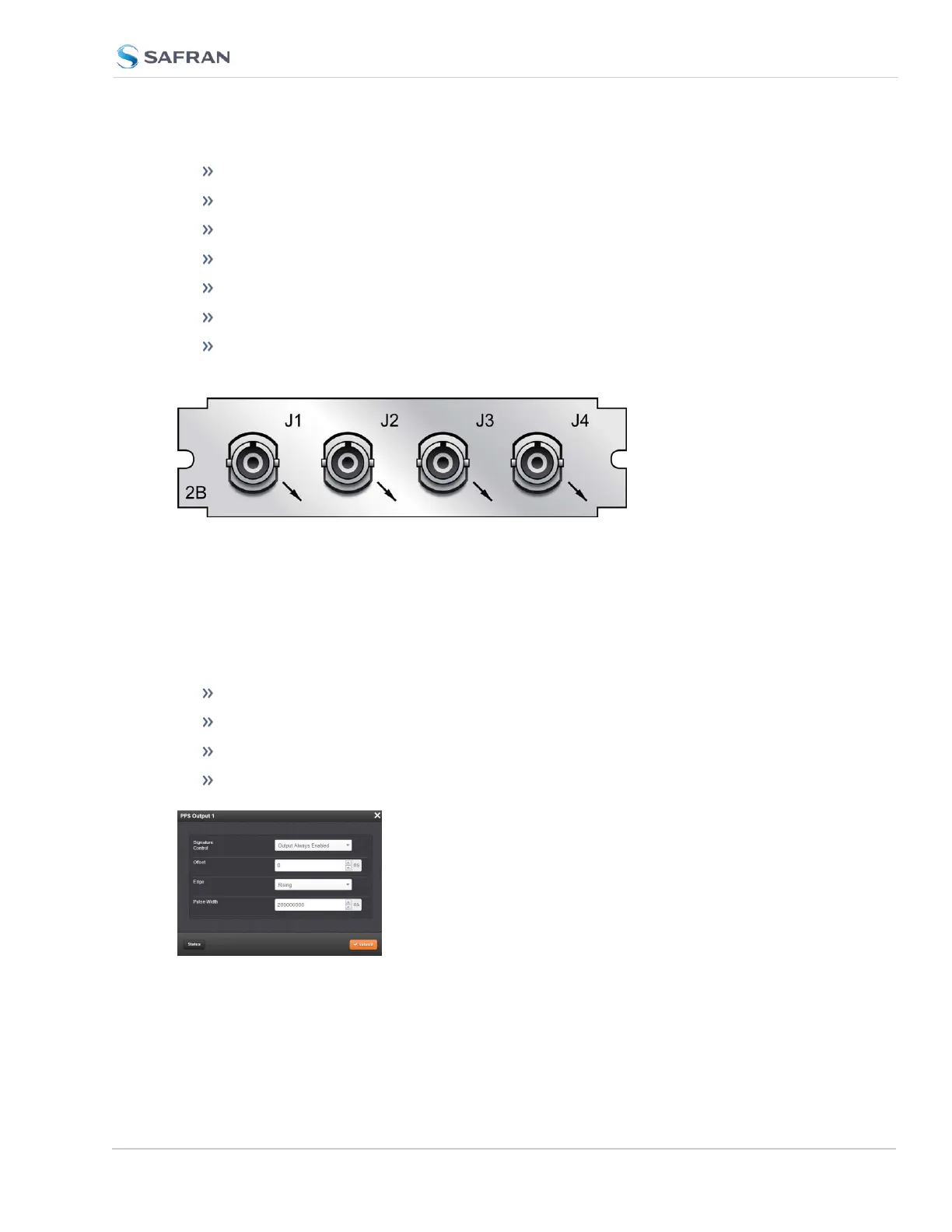

Figure 5-18: Model 1204-2B option card rear plate
1PPS Output: Edit Window
To configure the settings of a 1PPS Output, go to its Edit window. For instruc-
tions, see: "Configuring Option Card Inputs/Outputs" on page364.
The Web UI list entries for these option cards are:
1PPS OUT, 4-BNC
1PPS OUT, 10 V
1PPS OUT, RS-485
1PPS OUT, Fiber
The Edit window allows the configuration of the following settings:
