HAVE QUICK Out, BNC [1204-10]: Specifications
Outputs: (4) HAVE QUICK
Signal Type and Connector: TTL levels (BNC)
Formats Supported:
STANAG 4246 HAVE QUICK I
STANAG 4246 HAVE QUICK II
STANAG 4372 HAVE QUICK IIA
STANAG 4430 Extended HAVE QUICK
STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Output Load Impedance: 10kΩ
Start of Signal: <10μs after 1PPS output
Programmable Phase Shift: ±20ns to 500ms with 20ns resolution
Accuracy: ±50ns (1σ)
Maximum Number of Cards: 6
Ordering Information: 1204-10 HAVE QUICK outputs, BNC

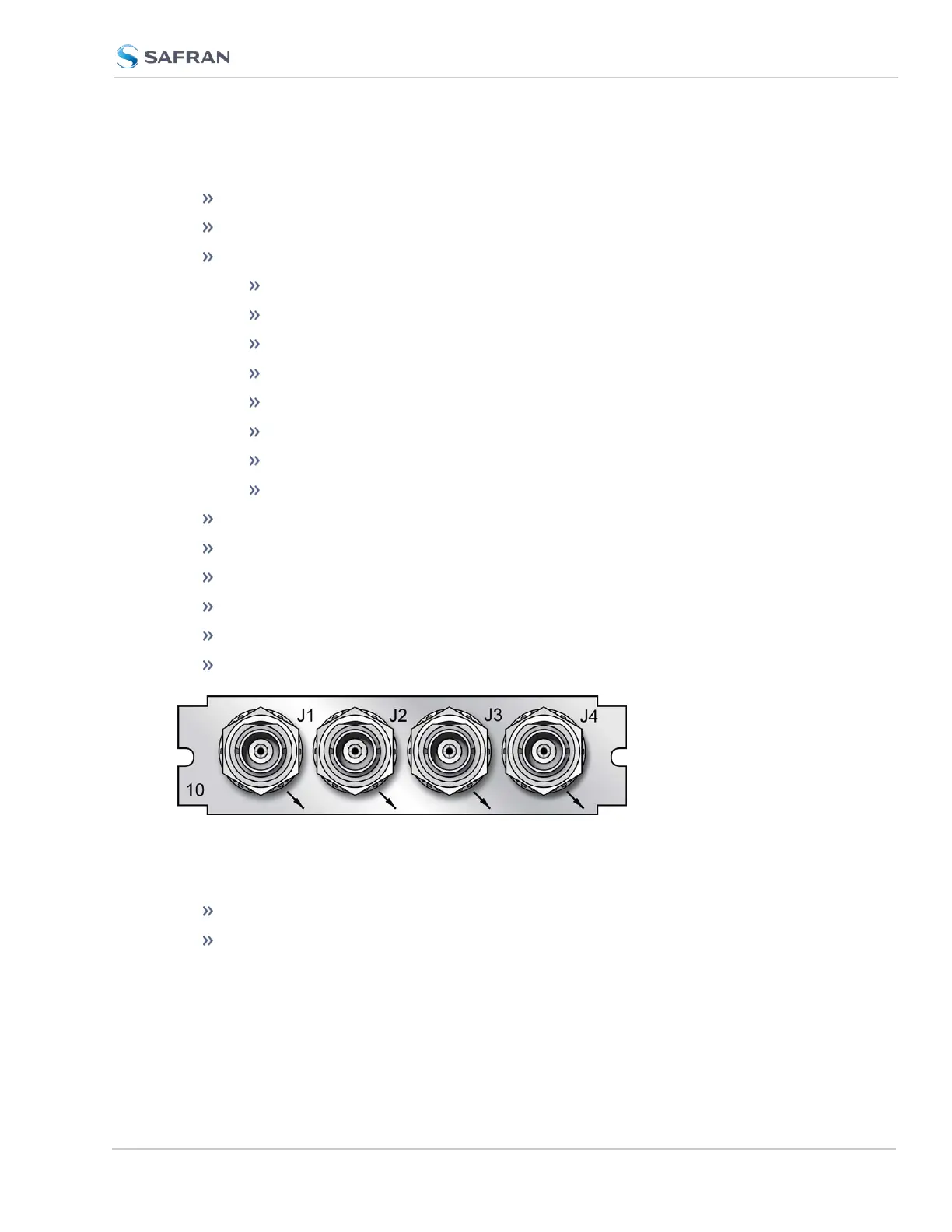

Figure 5-47: Model 1204-10 option card rear plate
HAVE QUICK Out, RS-485 [1204-1B]: Specifications
Outputs: (4) HAVE QUICK outputs
Signal Type and Connector: RS-485 levels (terminal block)
