Formats Supported:
STANAG 4246 HAVE QUICK I
STANAG 4246 HAVE QUICK II
STANAG 4372 HAVE QUICK IIA
STANAG 4430 Extended HAVE QUICK
STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Output Load Impedance: 120Ω
Start of Signal: <10μs after 1PPS output
Programmable Phase Shift: ±5ns to 500ms with 5ns resolution
Accuracy: ±50ns (1σ)
Maximum Number of Cards: 6
Ordering Information: 1204-1B HAVE QUICK outputs, RS-485

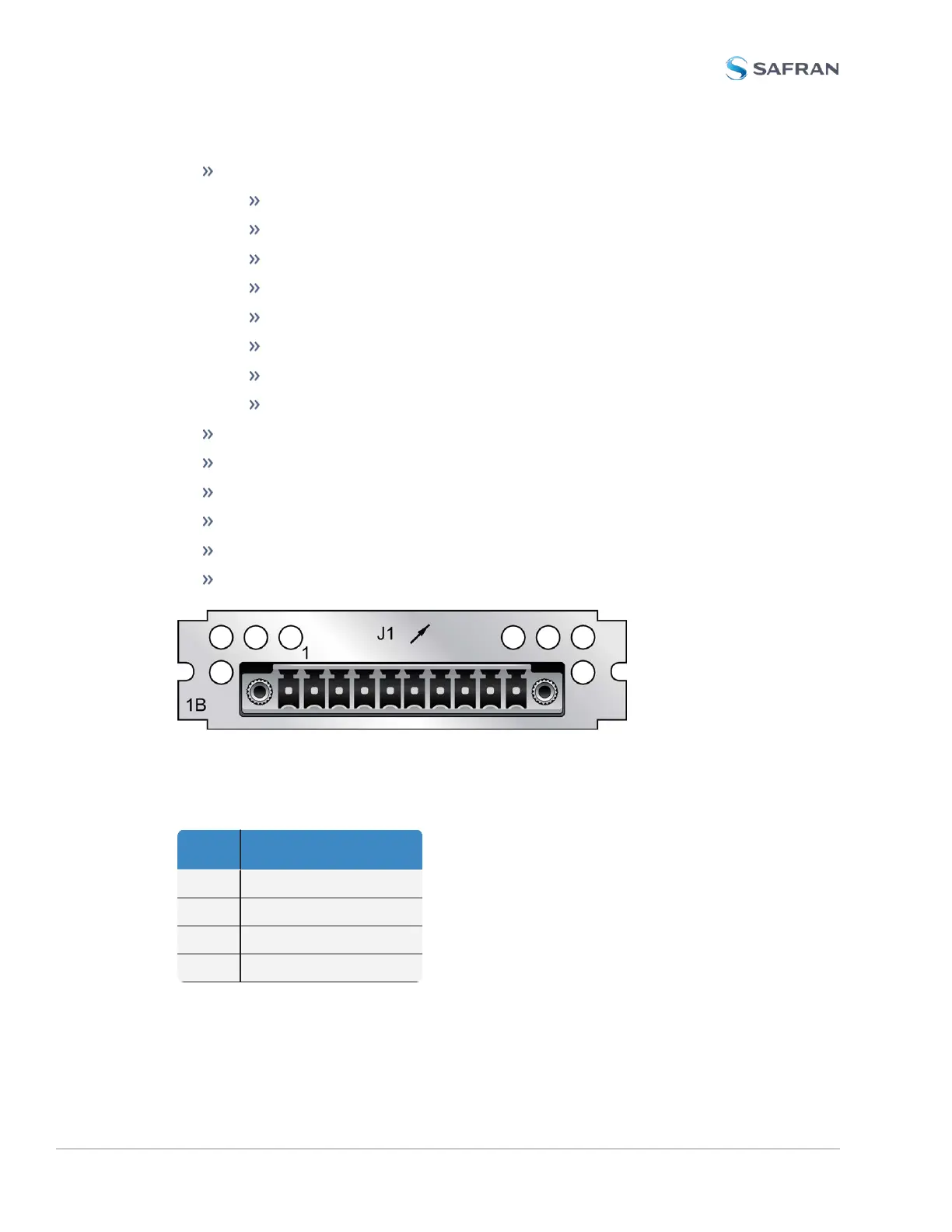

Figure 5-48: Model 1204-1B option card rear plate
Pin Assignments
Pin No. Function
1 HAVE QUICK Output 1 +
2 HAVE QUICK Output 1 -
3 GND
4 HAVE QUICK Output 2 +
