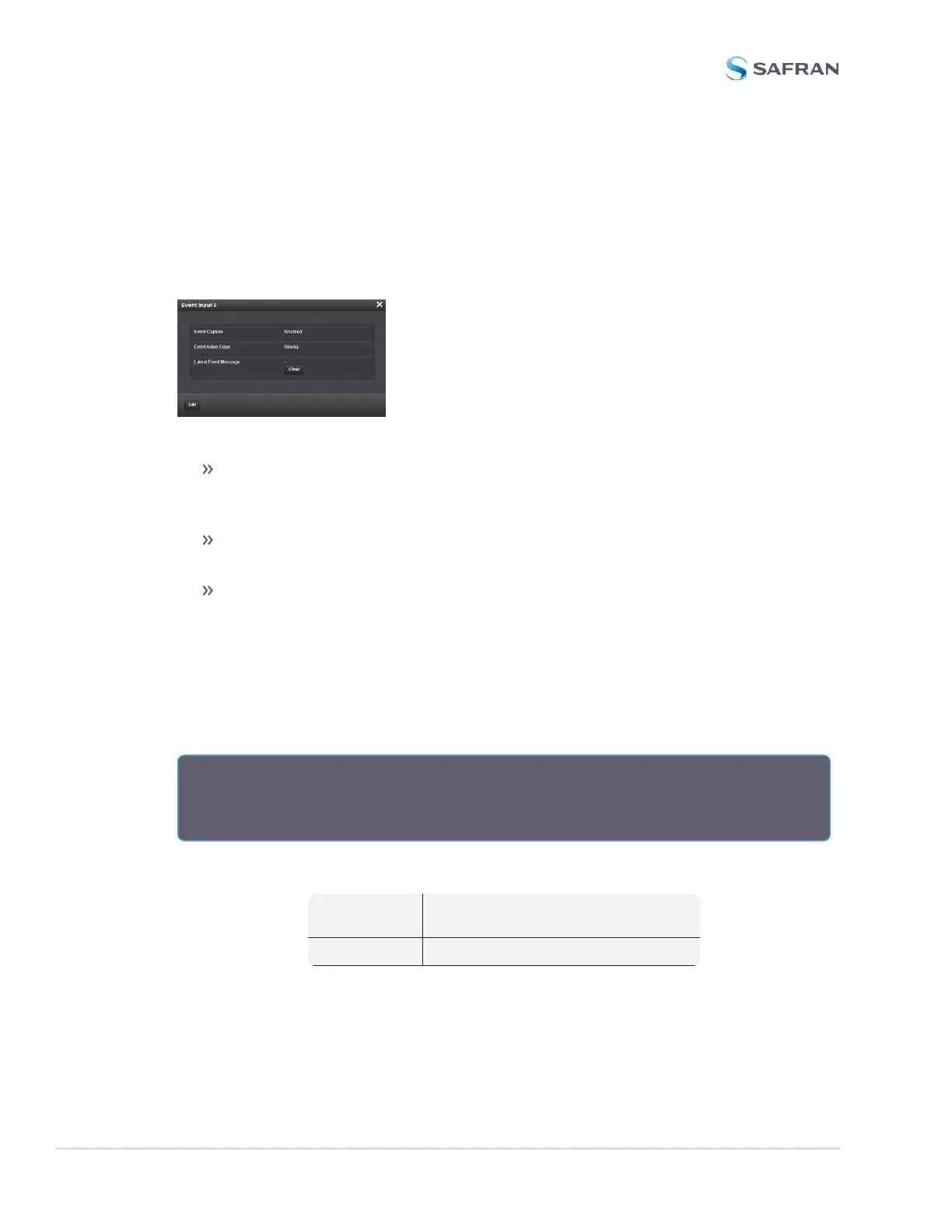

Event Broadcast Input: Status Window
To view the current settings of the Event Broadcast Input, (also referred to as
‘Reference’), go to its Status window. For instructions, see: "Viewing Input/Out-
put Configuration Settings" on page363.
The Web UI list entry for this card is: Event Broadcast.
The Status window displays the following settings:
Event Capture: The processing of events on the Event Input port J2. When
set to “Disabled”, no event messages will be queued. When set to
“Enabled”, event messages will be triggered (if a valid Format is selected).
Event Active Edge: The signal edge used for triggering events on Event
Input port J2.
Latest Event Message: The last message sent. This can be cleared with the
Clear button.
Event Broadcast Time Code Formats
The following ASCII-based time code formats are available:
Event Broadcast Format 0
E x a m p l e m e s s a g e :
SSSSSSSSSS.XXXXXXXXX<CR><LF>
Where:
SSSSSSSSSS 10-digit Seconds Time (references
from January 1
st
, 1970)
. Decimal Point Separator
