6.6.3 Interfaces

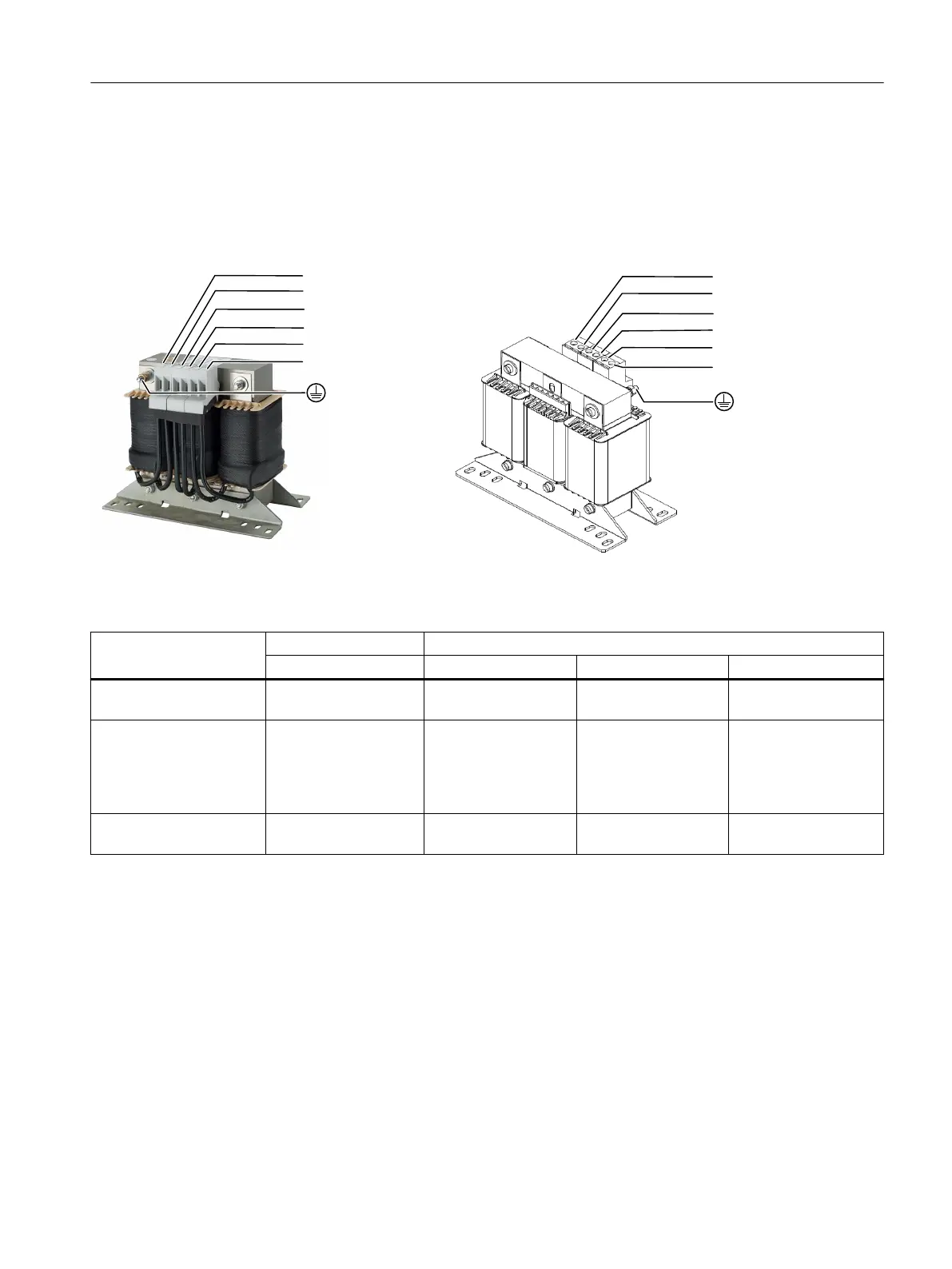

Overview diagram
8
8
9
9
:
:
6SL3100-0EE21-6AA0
/
/
/
/
/
/
6SL5100-0EE21-6AD0, 6SL5100-0EE22-4AC0,6SL5100-0EE22-4AD0
Article number 6SL3100- 6SL5100-
0EE21-6AA0 0EE21-6AD0 0EE22-4AC0 0EE22-4AD0
Line connection
Load connection
1U1, 1V1, 1W1
1U2, 1V2, 1W2
L1, L2, L3
L1.2, L2.2, L3.2
L1, L2, L3
L1.2, L2.2, L3.2
L1, L2, L3
L1.2, L2.2, L3.2
Terminals
Line connection and load
connection
Screw terminals
2.5...10mm
2
(AWG20...AWG8)
1.5...1.8Nm
(15.9lbf in)
Screw terminals
2.5...16mm
2
(AWG20...AWG6)
2.5Nm (22.1lbf in)
Screw terminals
2.5...16mm
2
(AWG20...AWG6)
2.5Nm (22.1lbf in)
Screw terminals
2.5...16mm
2
(AWG20...AWG6)
2.5Nm (22.1lbf in)
Protective conductor con‐
nection
1)
Screw M6
6Nm (53.1lbfin)
Screw M6
6Nm (53.1lbfin)
Screw M6
6Nm (53.1lbfin)
Screw M6
6Nm (53.1lbfin)
1)
For ring cable lugs without insulation
Line-side power components
6.6Line reactors
Booksize power units
