8.3.10.7 Connecting the cable shield
Overview
The motor connection cable shield is attached to the shield connection plate of the Motor
Module using the shield connection clamp supplied.
Requirement
Note
Ensuring twist protection
For the shield connection clamp, twist protection of the pressure plate is only ensured when
completely swung back (state when delivered). After the shield connection clamp has been
tted in the shield connection plate, the shield connection plate prevents twisting.
The connection plug and/or the 2 connection plugs for a Double Motor Module are inserted
in connection sockets X1 and/or X2 at the Motor Module.
Procedure

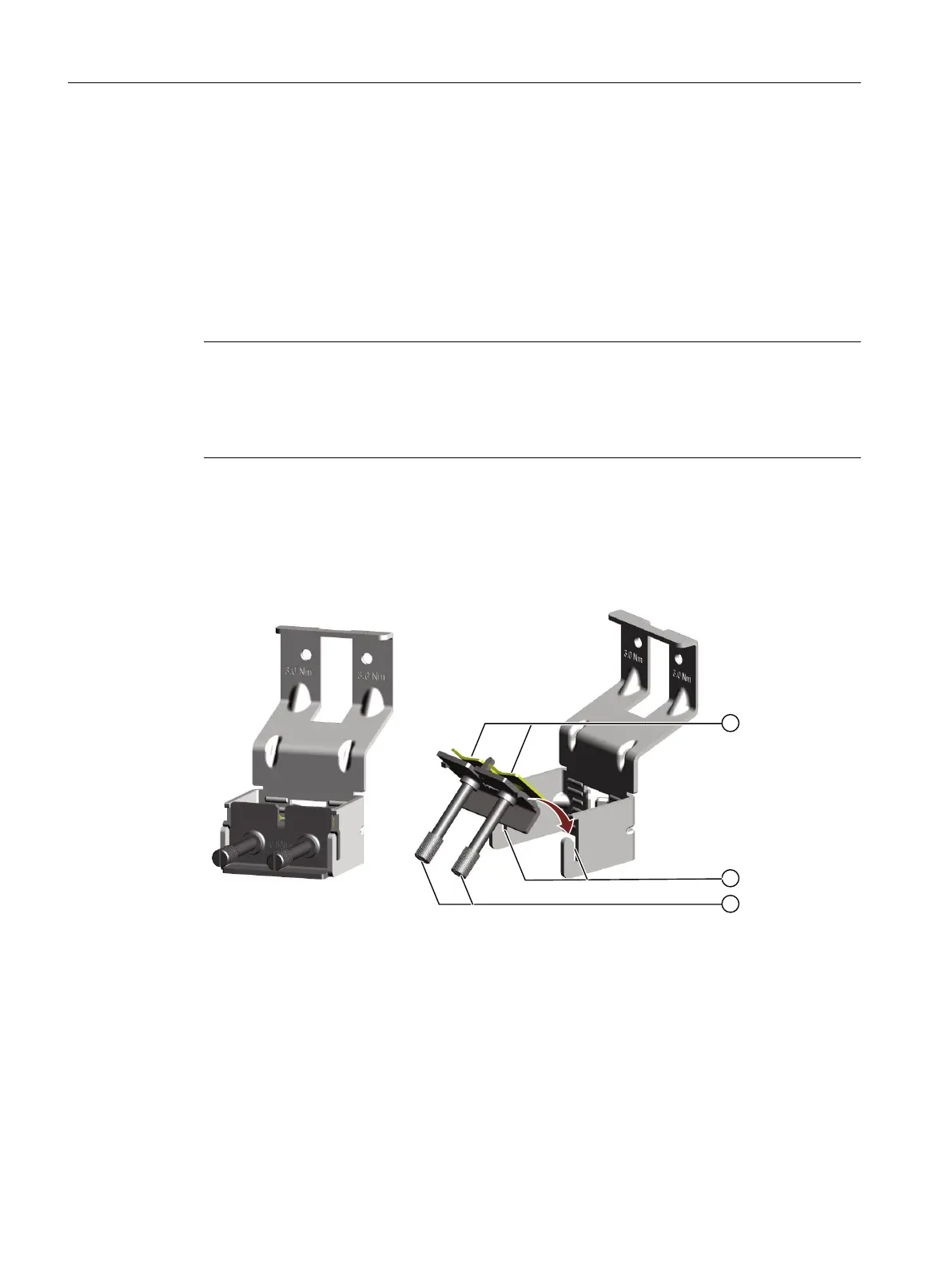

① Knurled screws
② Slots to hook the shield connection clamp into the shield connection plate
③ Pressure plates
Figure8-31 Shield connection - example for a Double Motor Module with two pressure plates
Proceed as follows to x the motor connection cable or the motor connection cables:
1. Route the cable or both cables through the shield connection plate.
2. Hook the shield connection clamp into the shield connection plate.
3. Fix the cable using the pressure plate. To do this, tighten the knurled screws. Tightening
torque: 0.8 Nm (7.08lbfin)
Motor Modules
8.3Motor Modules 3 ... 30 A and 2x3 ... 2x18 A
Booksize power units
184 Equipment Manual, 09/2023, A5E53307519B AA
