Siemens SINAMICS S220

11.1.2 Order data DRIVE-CLiQ signal cables
Pre-assembled DRIVE-CLiQ signal cables
Name Degree of protec‐
tion
Connector type Article number
DRIVE-CLiQ signal ca‐
bles
without 24 V cores IP20 and IP67 avail‐
able
with RJ45 plug 6SL3060-4A..
6FX2002-1DC..
MOTION-CONNECT with 24 V cores IP20 and IP67 avail‐
able
with RJ45 plug 6FX5002-2DC00.. to .. -2DC20..
6FX8002-2DC00.. to .. -2DC20..
Converting over from an RJ45 plug (IP20)
to an M12 socket (IP67)
6FX5002-2DC30..
6FX8002-2DC30..
11.2 DRIVE-CLiQ coupling
11.2.1 Description

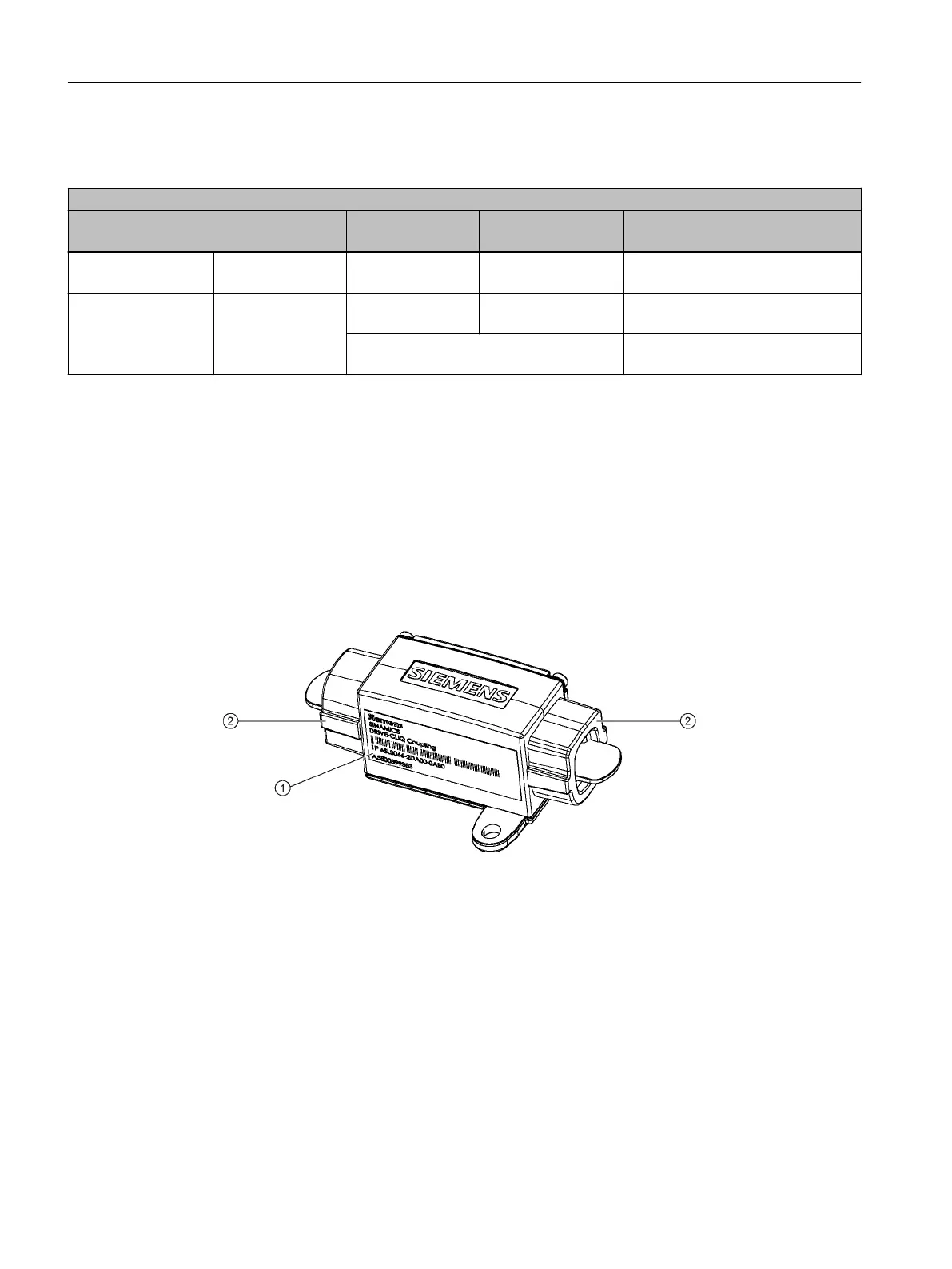

Overview diagram
① Nameplate
② Protective cap, Yamaichi, Article No.: Y-ConAS-24-S
The DRIVE-CLiQ coupling (6SL3066-2DA00-0AB0) is used to connect 2 DRIVE-CLiQ cables in
accordance with degree of protection IP67 acc. to IEC 60529.
In addition to the data cables, the power supply contacts of DRIVE-CLiQ are also routed via
the coupling.
Accessories
11.2DRIVE-CLiQ coupling
