Siemens SINAMICS S220

Overview of typical power losses at the rated operating point

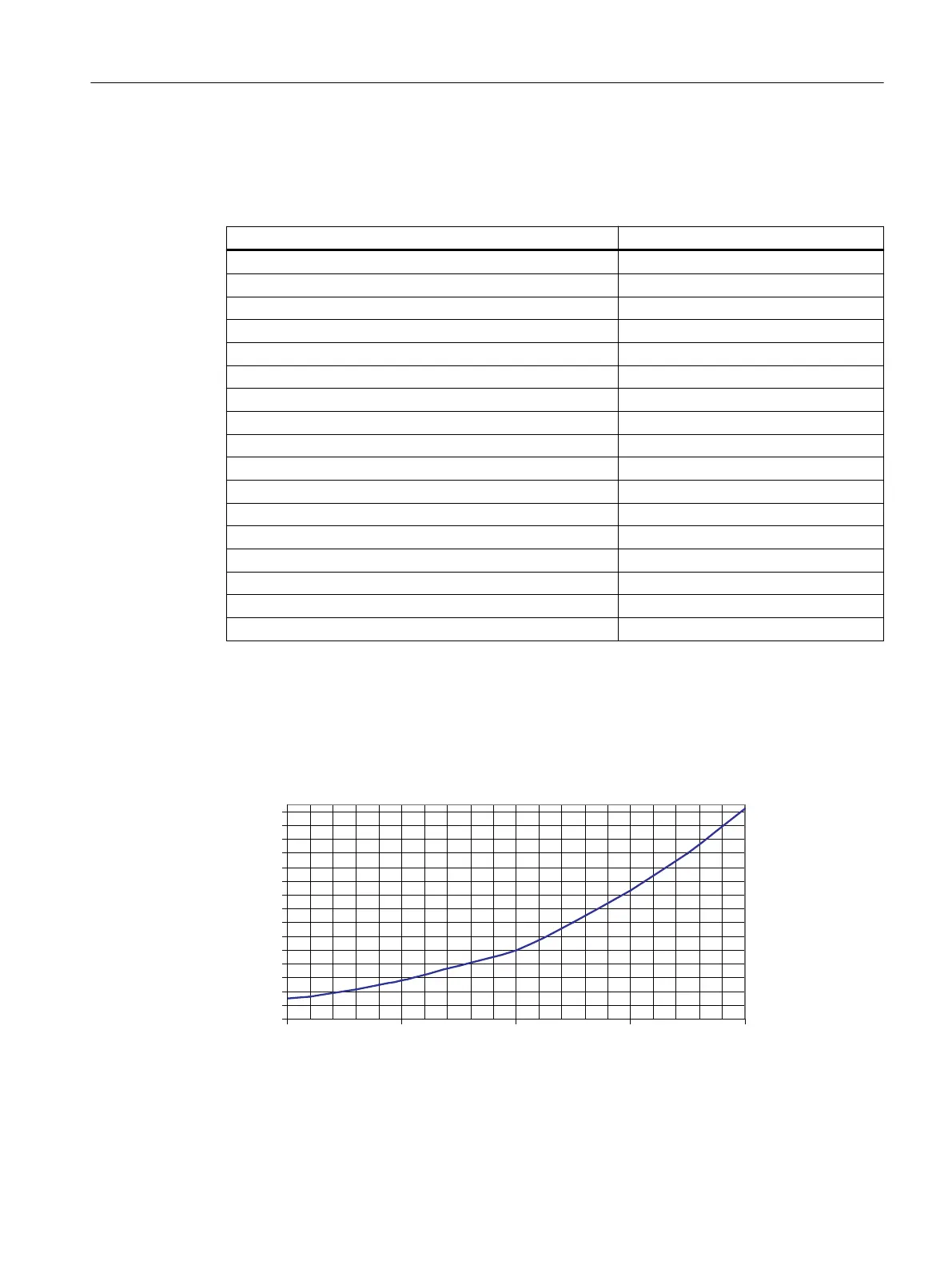

Table 4-18 Typical power losses in the control cabinet for operation at the rated operating point for
Motor Modules
Motor Module P
Vn
[W]
Single Motor Module 3A 29
Single Motor Module 5A 40
Single Motor Module 9A 65
Single Motor Module 18A 150
Single Motor Module 24A 189
Single Motor Module 30A 261
Single Motor Module 30A (slim) 272
Single Motor Module 45A 344
Single Motor Module 60A 462
Single Motor Module 85A 760
Single Motor Module 132A 1215
Single Motor Module 200A 2010
Double Motor Module 2x3A 59
Double Motor Module 2x5A 88
Double Motor Module 2x9A 159
Double Motor Module 2x18A 282
Double Motor Module 2x18A (slim) 291
4.13.3 Losses in the partial load range for power units
Technical data
3Y3YQ
33Q



















Figure4-5 Losses in the partial load range for Smart Line Modules
Application planning
4.13Power losses
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 63
