8.5.12 Connecting the motor
8.5.12.1 Connectable cable cross-sections
Description
Table 8-40 Conductor cross-sections of the motor cable for Motor Modules 85A, 132A and 200A
Output current [A] Cable cross-sections
1)
85A...200A Single core connection:
16...150mm
2
(AWG6...300kcmil)
Two-wire connection:
16...50mm
2
(AWG6...1/0)
1)
To ensure touch protection IPxxB according to IEC 60529, reduction collars must be used for cable cross-
sections of 16mm²- 95mm² (AWG6-AWG3/0).
8.5.12.2 Selecting cable lugs
Description
Here you can see the dimensions of the motor connection block for selecting the motor
connection cable and the ring or tubular cable lug.
G
E
B
DC
F

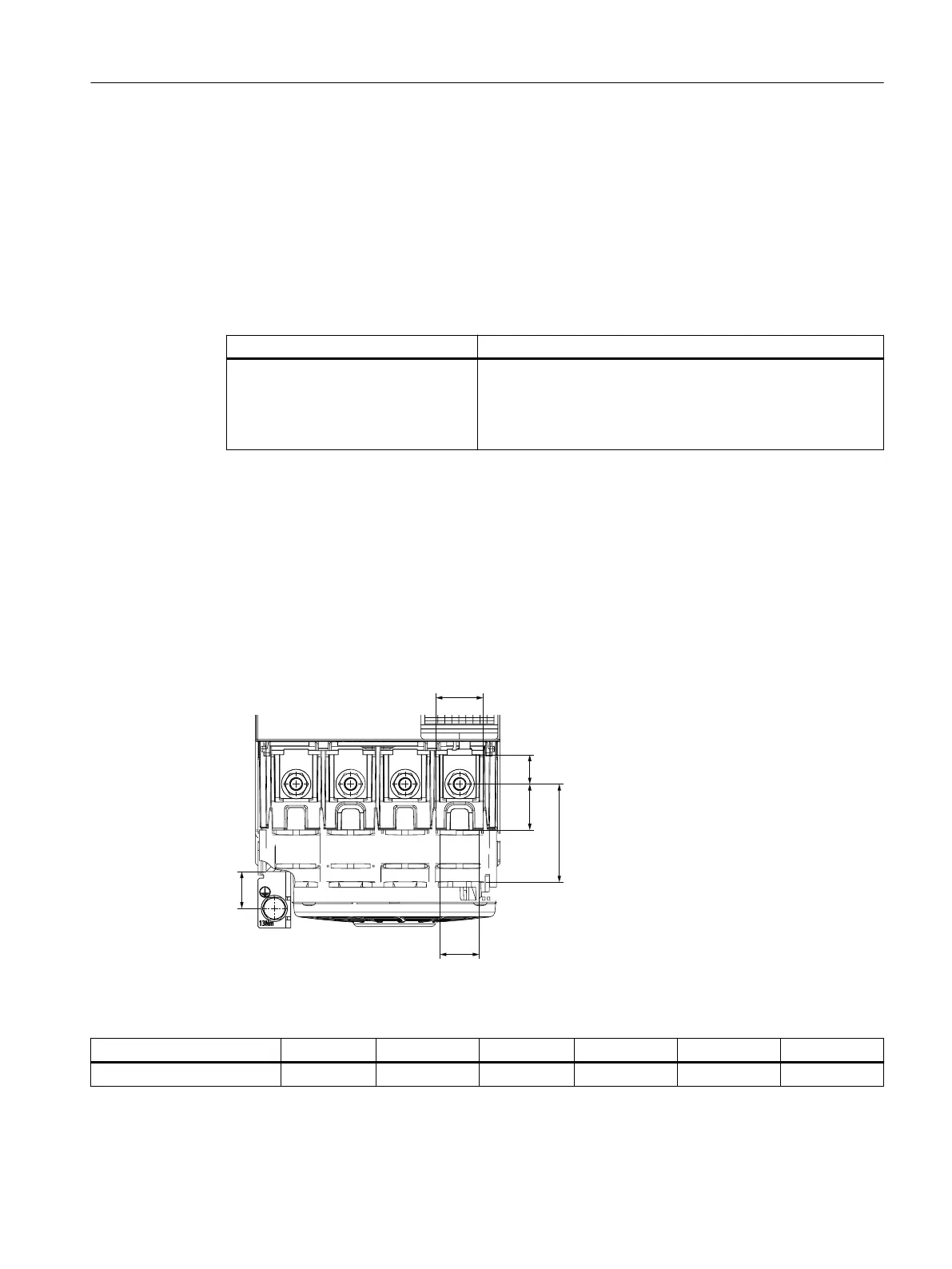

Figure8-81 Dimensions of the motor connection block for Motor Modules 85A, 132A and 200A
Table 8-41 Dimensions of the motor connection block in mm (inch)
 a b c d e f
Maximum dimensions 59.8 (2.35) 28.1 (1.1) 21.2 (0.83) 29.4 (1.16) 25.4 (1.0) 22.5 (0.88)
