Siemens SINAMICS S220

Motor reactors Article No. 6SL3000-2BE26-0AA0
Rated current [A] 60
d
1
36(1.41)
Lengths n
1
, n
2
, n
3
and n
4
correspond to the distances between holes.

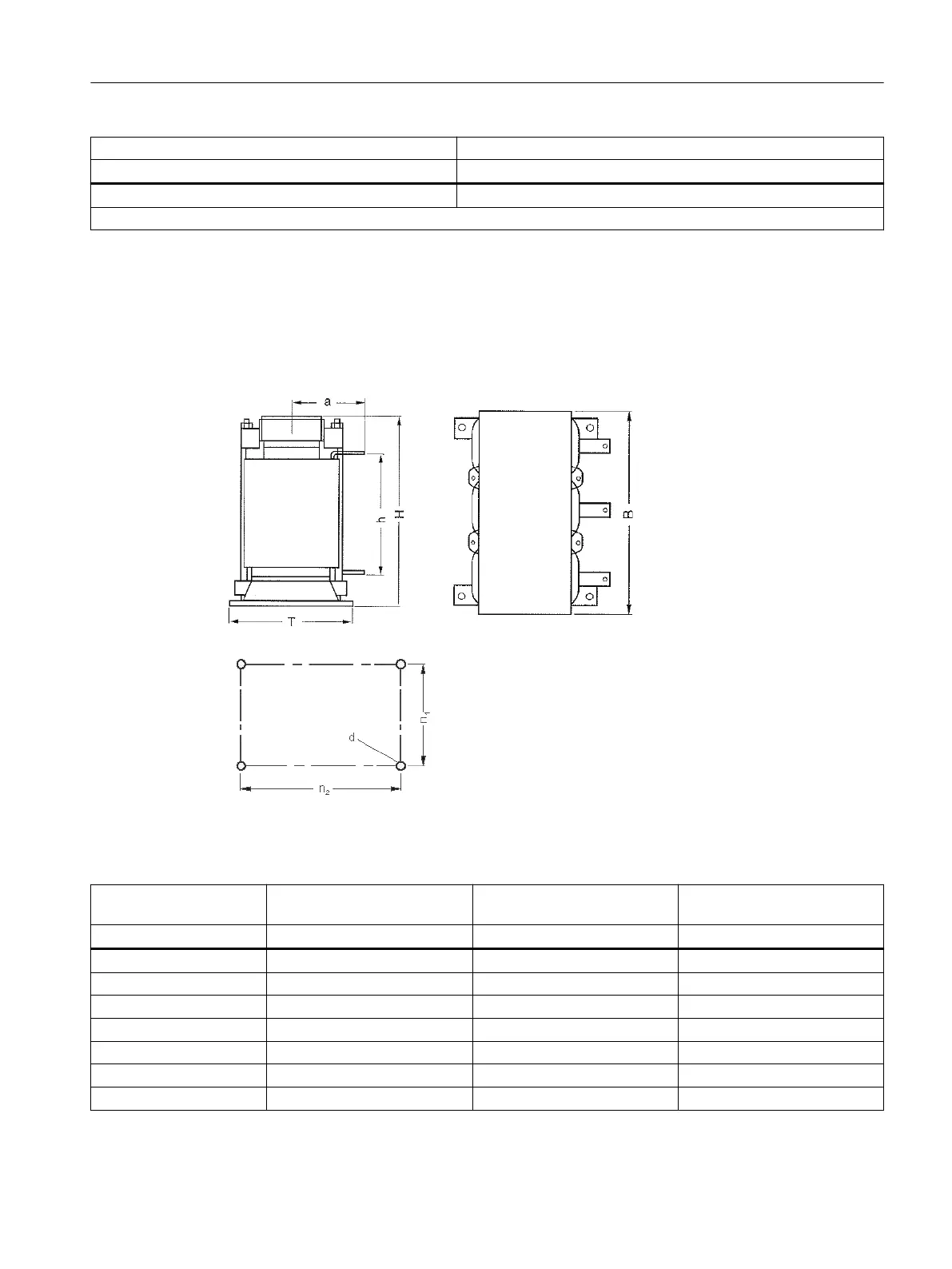

10.2.5.4 Dimension drawing, motor reactors 85 - 200 A
Overview diagram
Figure10-6 Dimension drawing, motor reactors 85-200A
Table 10-6 Dimensions of motor reactors, all dimensions in mm and (inches)
Motor reactors Article
No.
6SE7031-5ES87-1FE0 6SE7031-8ES87-1FE0 6SE7032-6ES87-1FE0
Rated current [A] 85 132 200
B 197(7.75) 281(11.06) 281(11.06)
H 220(8.66) 250(9.84) 250(9.84)
T 128(5.03) 146(5.74) 146(5.74)
a 81(3.18) 98(3.85) 111(4.37)
h 100(3.93) 119(4.68) 121(4.76)
n
1
94(3.70) 101(3.97) 101(3.97)
n
2
176(6.92) 200(7.87) 200(7.87)
Motor-side power components
10.2Motor reactors
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 263
