5.2.4 Con󹪝guration examples
5.2.4.1 Single-tier con󹪝guration with infeed to the right

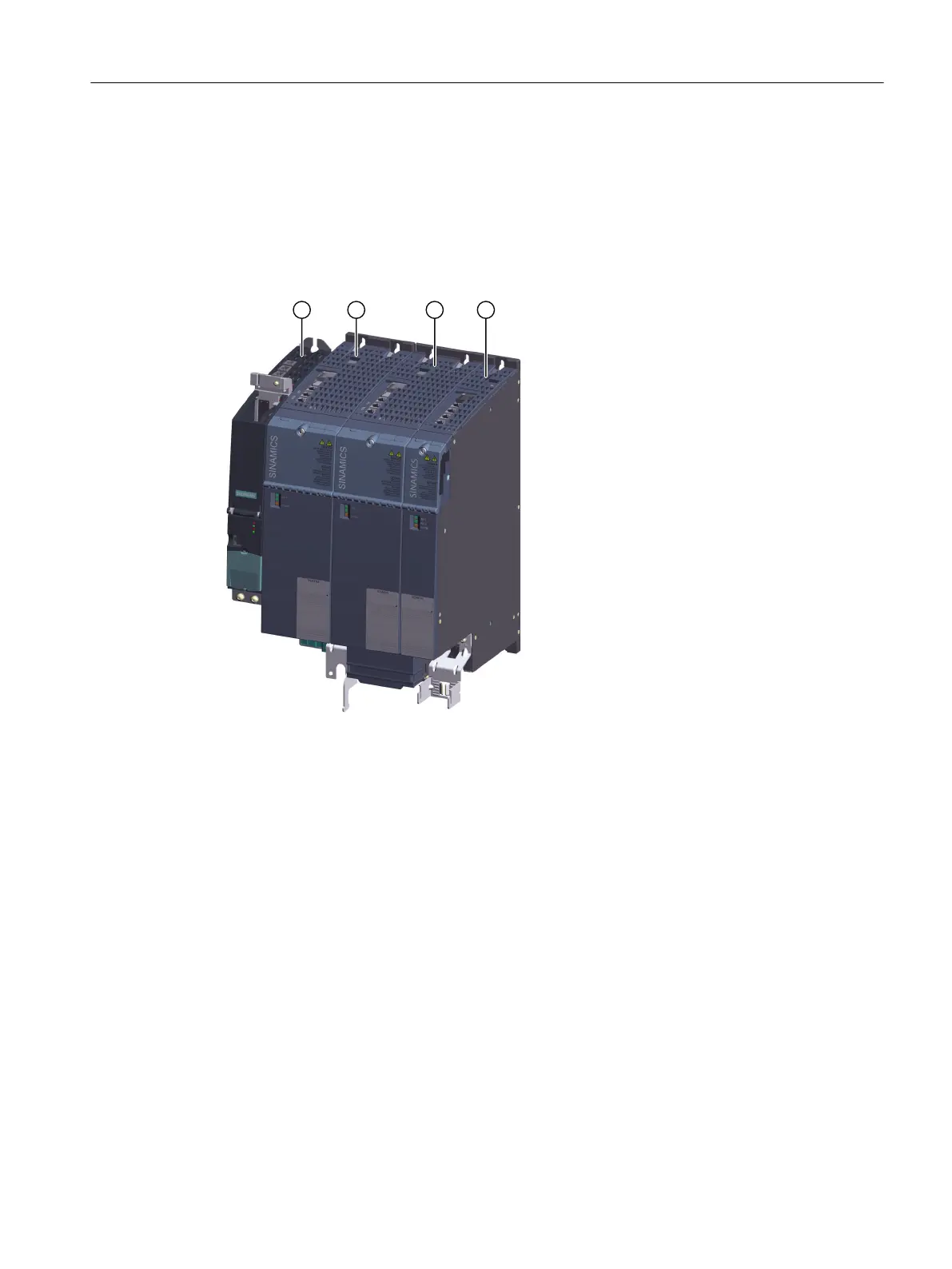

Overview diagram

① SINAMICS S120 Control Unit 320-2
② SINAMICS S220 Smart Line Module 16kW
③ SINAMICS S220 Motor Module 60A
④ SINAMICS S220 Motor Module 2x9A
Figure5-3 Example of a single-tier drive line-up with the infeed to the right
The following arrangement rule applies from left to right within a drive line-up:
• Line Module
• Motor Modules in order of power from the highest power to the lowest power
• DC link components, e.g. Braking Module, Control Supply Module, Capacitor Module
