6.6.4 Dimension drawing
Overview image
$
&
%
'
)
(

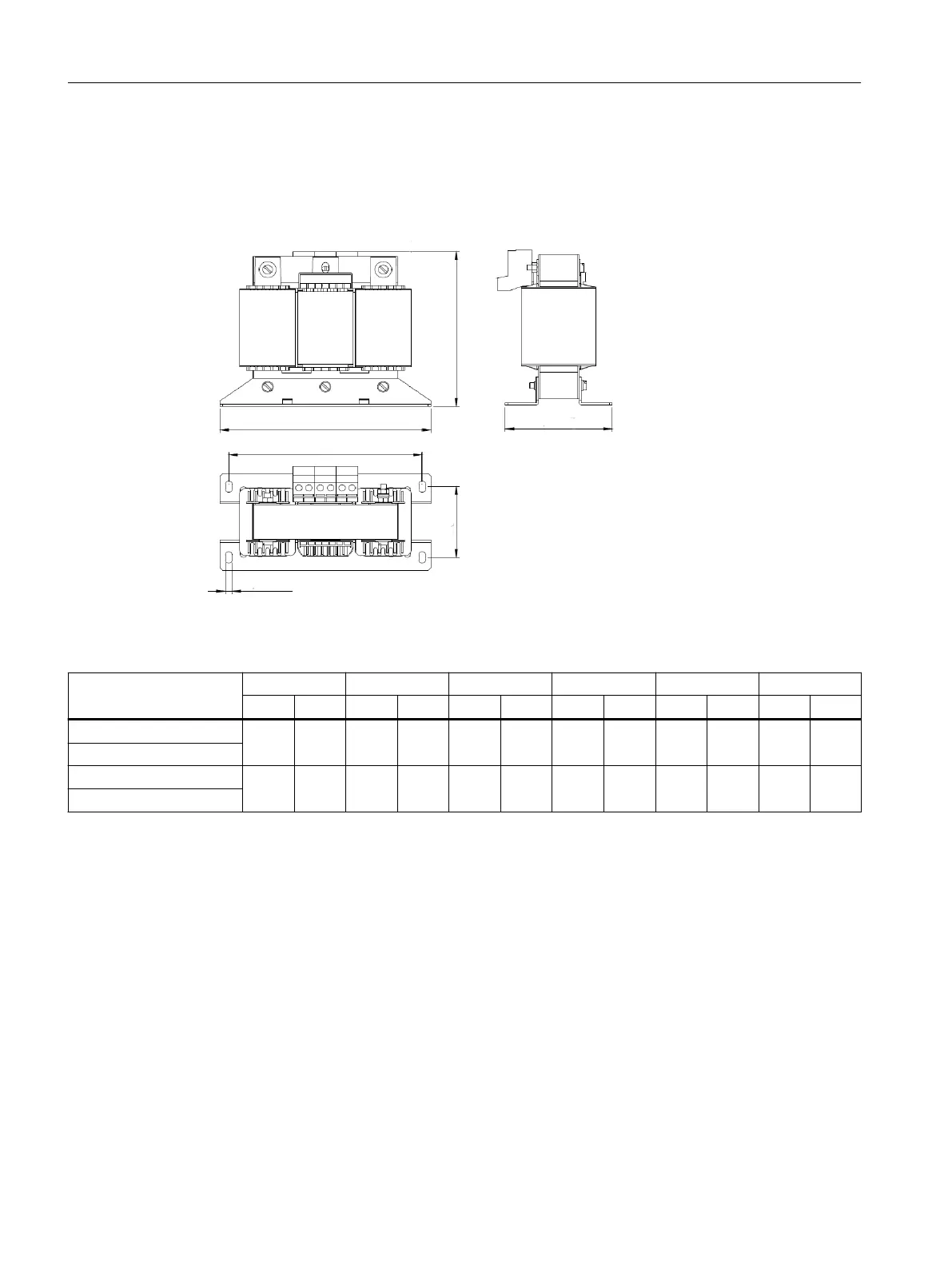

Figure6-5 Dimension drawing of line reactors for 16 kW and 24 kW Smart Line Modules, all
dimensions in mm and (inches)
Article number A B C D E F
mm in mm in mm in mm in mm in mm in
6SL3100-0EE21-6AA0 219 8.62 110.5 4.35 176 6.93 201 7.91 80.5 3.17 7.0 x
13
0.28
x 0.51
6SL5100-0EE21-6AD0
6SL5100-0EE22-4AC0 219 8.62 126 4.96 195 7.68 201 7.91 96 3.78 7.0 x
13
0.28
x 0.51
6SL5100-0EE22-4AD0
6.6.5 Mounting position
Description
Line reactors may be installed standing vertically or suspended horizontally.
