10.2.5 Dimension drawings
10.2.5.1 Dimension drawing, motor reactors 3 - 30 A
Overview diagram




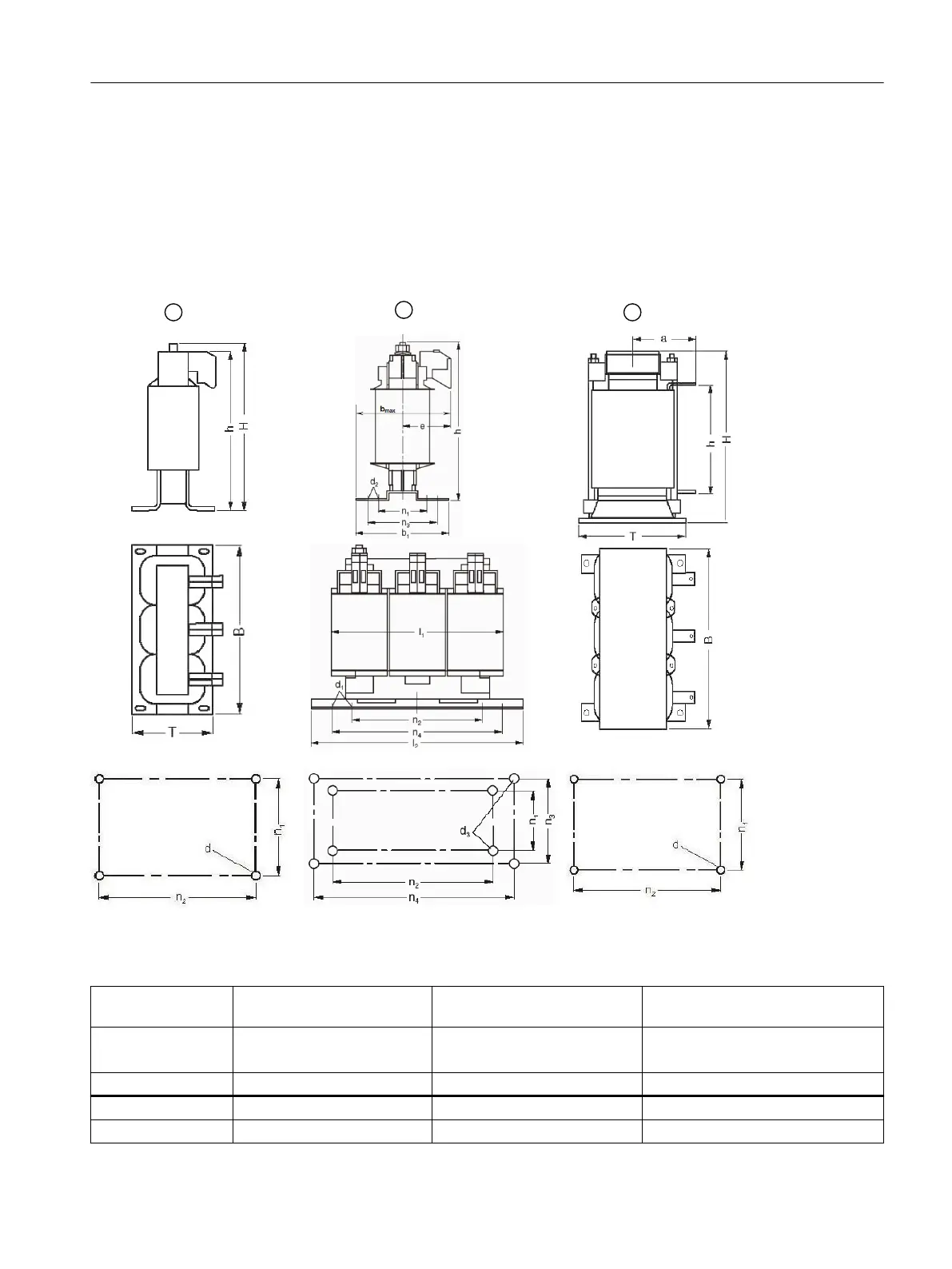

Figure10-3 Dimension drawing, motor reactors 3-30A
Table 10-2 Dimensions of motor reactors, all dimensions in mm and (inches)
Motor reactors Arti‐
cle No.
6SE7021-0ES87-1FE0 6SE7022-6ES87-1FE0 6SE7024-7ES87-1FE0
Rated current [A] 3
5
18 30
Figure ① ① ③
B 178(7.00) 219(8.62) 197(7.75)
H 153(6.02) 180(7.08) 220(8.66)
