11.3.4.2 Installing the DRIVE-CLiQ cabinet bushing for M12 plug
Requirement
WARNING
Risk of injury as a result of foreign bodies in the device
Parts (e.g.: drilling chips, end sleeves) falling into the device can cause short-circuits and
damage the insulation. This can result in severe injury (arcing, loud bang, parts that are ung
out).
• Only perform installation and other work when the devices are current-free.
• Cover the ventilation slots when mounting and installing the control cabinet and remove
the cover before switching on.
Installation wall thickness: max. 4.5mm
Procedure
Proceed as follows to install the DRIVE-CLiQ cabinet bushing in the cabinet panel:
1 x 45°
Ø15,9
(Ø0.626)
Ø16,1
(Ø0.634)
max. 4,5 (0.18)
1
① Through-hole with chamfer

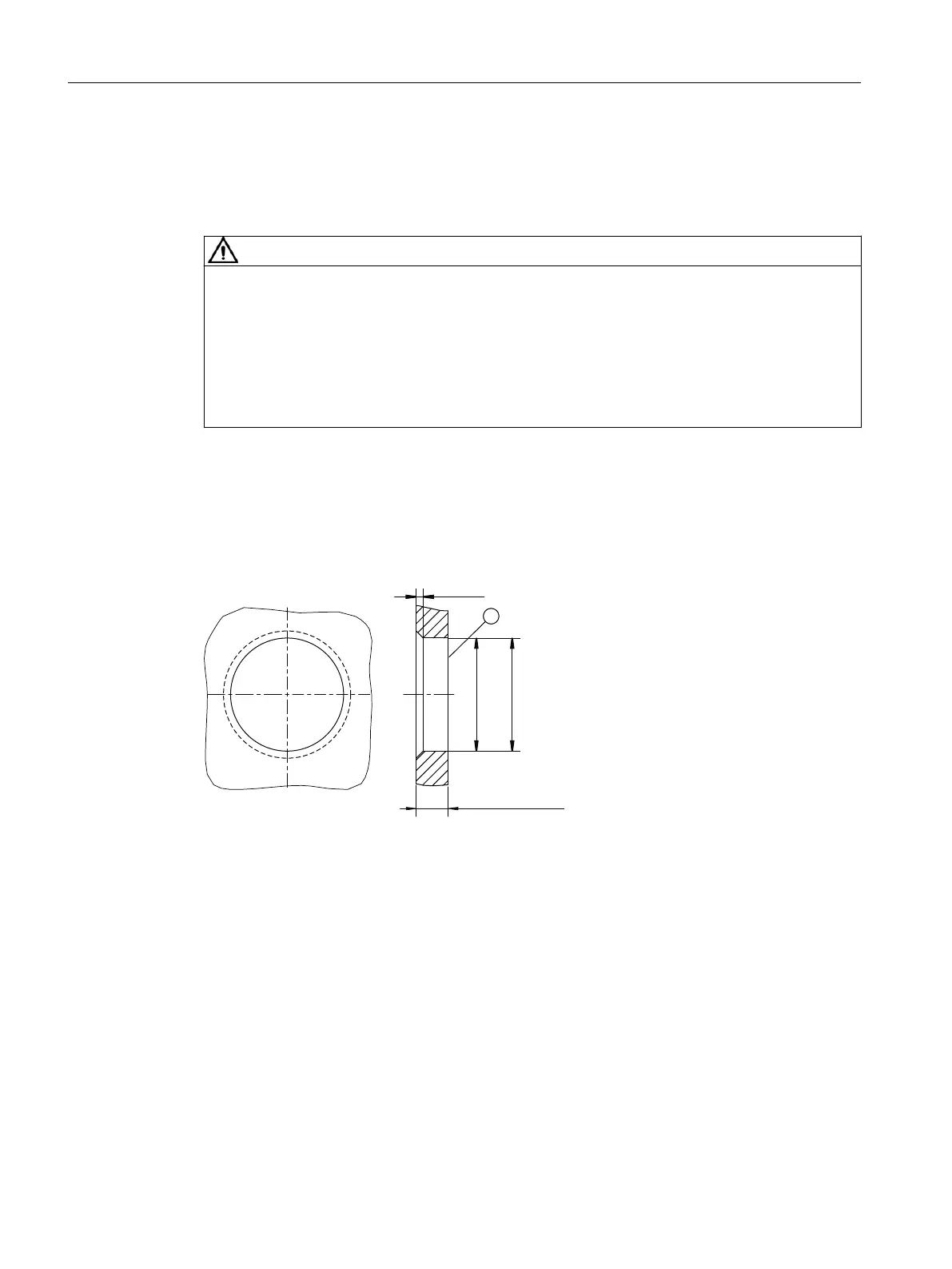

Figure11-5 Through hole with an O-ring that can be screwed in from the inside
Accessories
11.3DRIVE-CLiQ cabinet bushing
Booksize power units
276 Equipment Manual, 09/2023, A5E53307519B AA
