Siemens SINAMICS S220

8.1.2 Single Motor Modules
Overview diagram
NNNNNN

VOE"
"TMJN
"
"
NN
"
NN
"

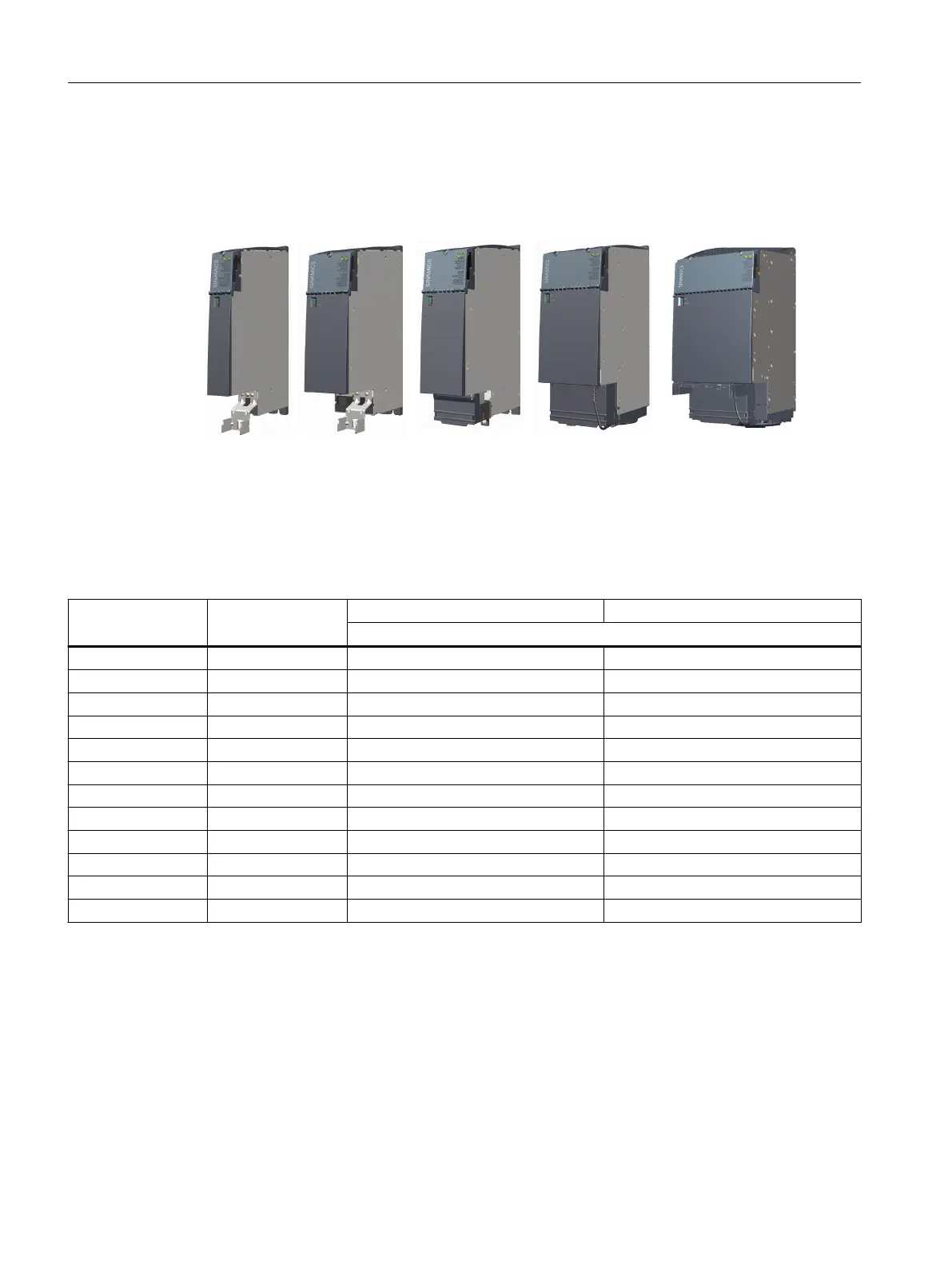

Figure8-1 Single Motor Modules 3 ... 200A
Table 8-1 Single Motor Modules
Output current [A] Width [mm] C type D type
Article No. 6SL5120-
3 50 - 1UE13-0AD0
5 50 - 1UE15-0AD0
9 50 - 1UE21-0AD0
18 50 1UE21-8AC0 1UE21-8AD0
24 50 1UE22-4AC0 1UE22-4AD0
30 50 1UE23-0SC0 1UE23-0SD0
30 100 1UE23-0AC0 1UE23-0AD0
45 100 1UE24-5AC0 -
60 100 1UE26-0AC0 -
85 150 1UE28-5AC0 1UE28-5AD0
132 150 1UE31-3AC0 1UE31-3AD0
200 200 1UE32-0AC0 1UE32-0AD0
Motor Modules
8.1Description
Booksize power units
148 Equipment Manual, 09/2023, A5E53307519B AA
