Required tool:
• Size3 Allen key
• Shield connection clamp from Weidmüller, type KLBUE3-8SC
Procedure



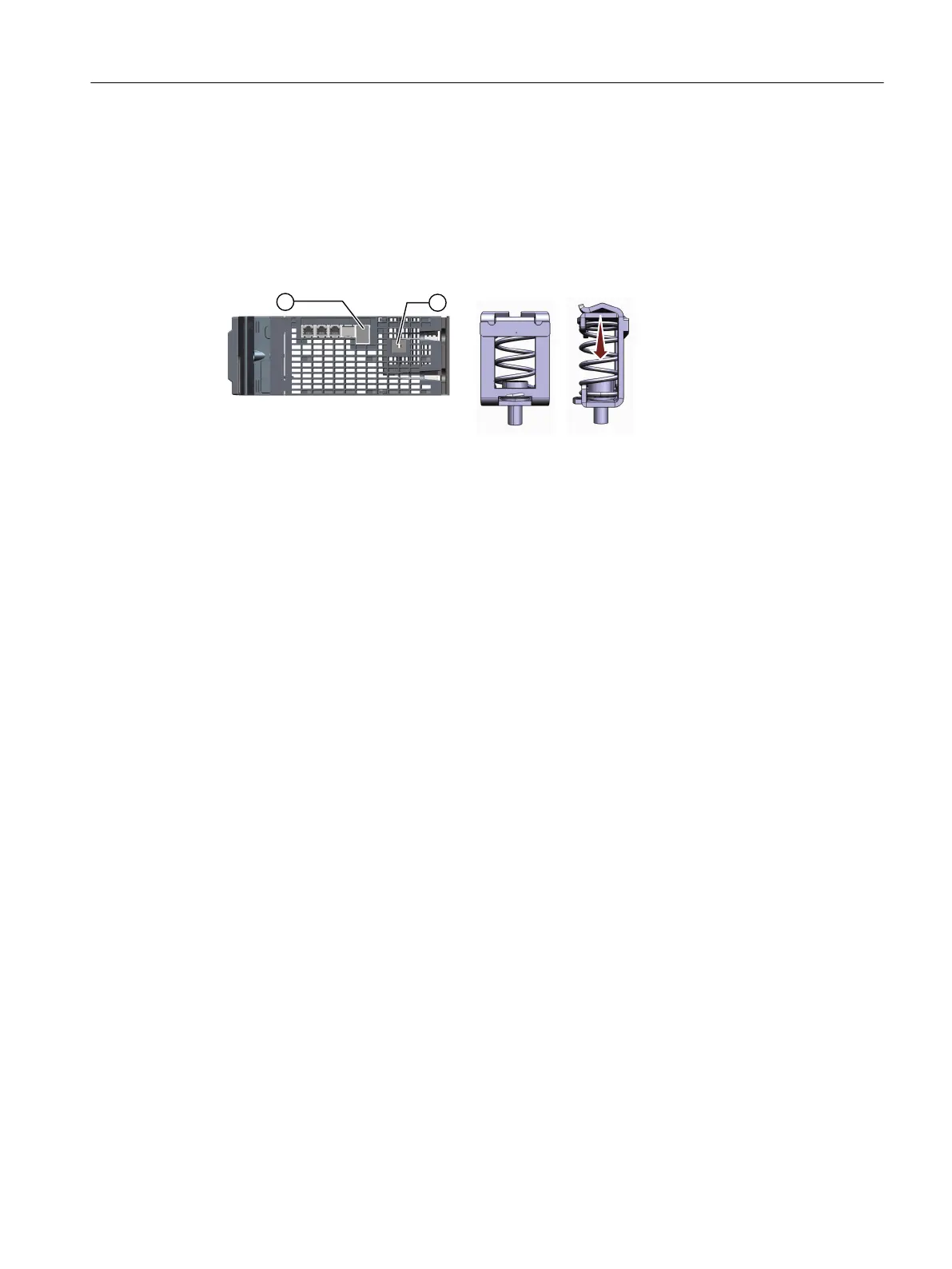

① Terminal X21/X22
② Position for 󹪝xing the shield connection clamp (M4 threaded socket)
Figure8-24 Shield connection for cables of terminal X21/X22
Proceed as follows to connect the shield of the cable(s) connected to terminals X21/X22:
1. Screw the shield connection clamp into the M4threaded socket next to the EP terminal.
Tightening torque: 1.8 Nm (15.93lbfin)
2. Remove the cable sheath and 󹪝x the cable in the shield connection clamp (stripped length of
the shield: 22mm).
More information
More detailed instructions are provided in the accessories pack sheet or in the online catalog of
the Weidmüller company for shield connection clamp, type KLBUE3-8SC.
8.3.9 Connect the protective conductor
Overview
Motor Modules are designed for use in control cabinets with a protective conductor connection.
The protective conductor is connected to the central PE busbar in the control cabinet.
Motor Modules
8.3Motor Modules 3 ... 30 A and 2x3 ... 2x18 A
