Table 11-3 DRIVE-CLiQ cabinet bushings
Description Degree of protection according to
IEC60529
Article number
RJ45 socket IP54 outside the control cabinet
IP20 inside the control cabinet
6SL3066-2DA00-0AA0
M12 plug/socket
Inside: Plug with male thread
Outside: Socket with female thread
IP67 outside the control cabinet
IP67 inside the control cabinet
6FX2003-0DT67
11.3.2 Interfaces and connections
11.3.2.1 DRIVE-CLiQ cabinet bushing for RJ45 plug

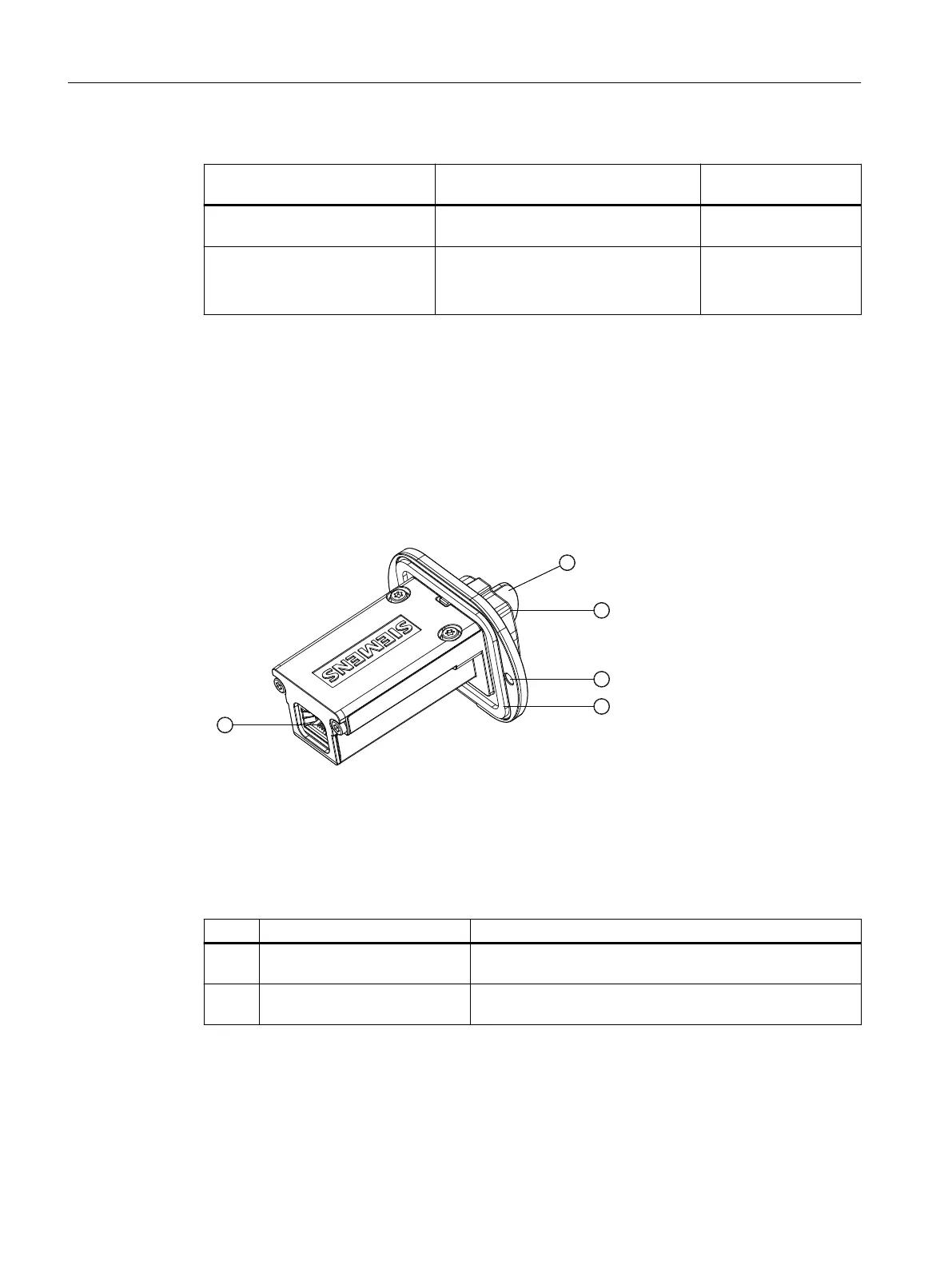

Description
1
2
5
4
3
① Protective cap, Yamaichi, Article No.: Y-ConAS-24-S
② DRIVE-CLiQ interface outside
③ Fastening holes
④ Flange-type seal to ensure degree of protection IP54 on the outside of the control cabinet
⑤ DRIVE-CLiQ interface on the inside
Figure Pin assignment Technical data
② DRIVE-CLiQ interface outside To connect DRIVE-CLiQ signal cables MOTION‑CONNECT with
degree of protection IP54
1)
⑤ DRIVE-CLiQ interface on the in‐
side
To connect DRIVE-CLiQ signal cables MOTION-CONNECT with
degree of protection IP20
1)
To ensure that the complete outside of the cabinet bushing, including the DRIVE-CLiQ interface, has
degree of protection IP54, a DRIVE-CLiQ cable must be used, which has at least degree of protection
IP54.
