Required tools:
• Hexagon size10 or Torx screwdriver TX25
Procedure
Proceed as follows to connect the protective conductor to the protective conductor connection
of the Motor Module:
1. Prepare the cable with an appropriate ring/tubular cable lug.
2. Open the motor connection block cover to connect the motor connection cable.
3. Connect the protective conductor to the component using the screw for the protective
conductor connection.
4. Tighten the screw. Hexagon size 10 or Torx screwdriver TX 25. Tightening torque: 6 Nm (53.1
lbf in)

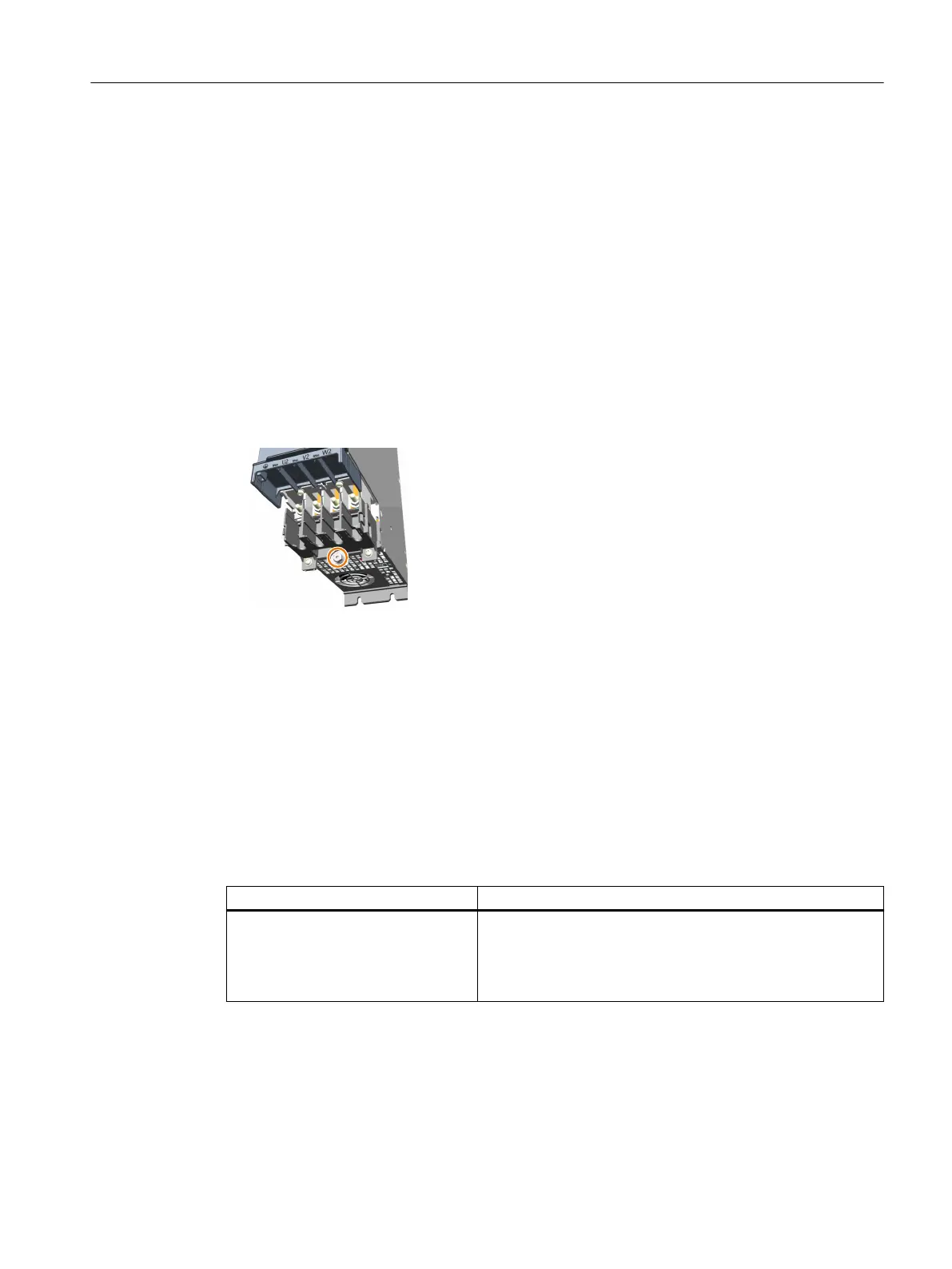

Figure8-48 Position of the protective conductor connection at Motor Modules 45A and 60A
8.4.11 Connecting the motor
8.4.11.1 Connectable cable cross-sections
Description
Table 8-25 Conductor cross-section of the motor cable for Motor Modules 45A and 60A
Output current [A] Cable cross-sections
45A and 60A Single core connection:
6...50mm
2
(AWG10...1)
Two-wire connection:
4...25mm
2
(AWG12...4)
