Siemens SINAMICS S220

Feature Unit Value
Maximum ambient temperature °C 55
DC link connection
Tightening torque

Nm (lbfin)
Slotted screwdriver 0.8x4.0
1.8(15.9)
DC link busbars
Fixing screw
Tightening torque


Nm (lbfin)

Torx-slotted screw TX20
1.8 (15.9)
DC link adapter
Fixing screw
Tightening torque


Nm (lbfin)

Torx-slotted screw TX10
0.8(7.1)
Weight kg 0.05
11.4.4 72A DC link adapter
11.4.4.1 Description
Overview
The 72A DC link adapter is used to directly supply the DC link voltage. It is preferably used for
supplying an individual component. For a direct infeed, each component is connected to the DC
link separately and the DC link busbars are not connected.
Overview diagram

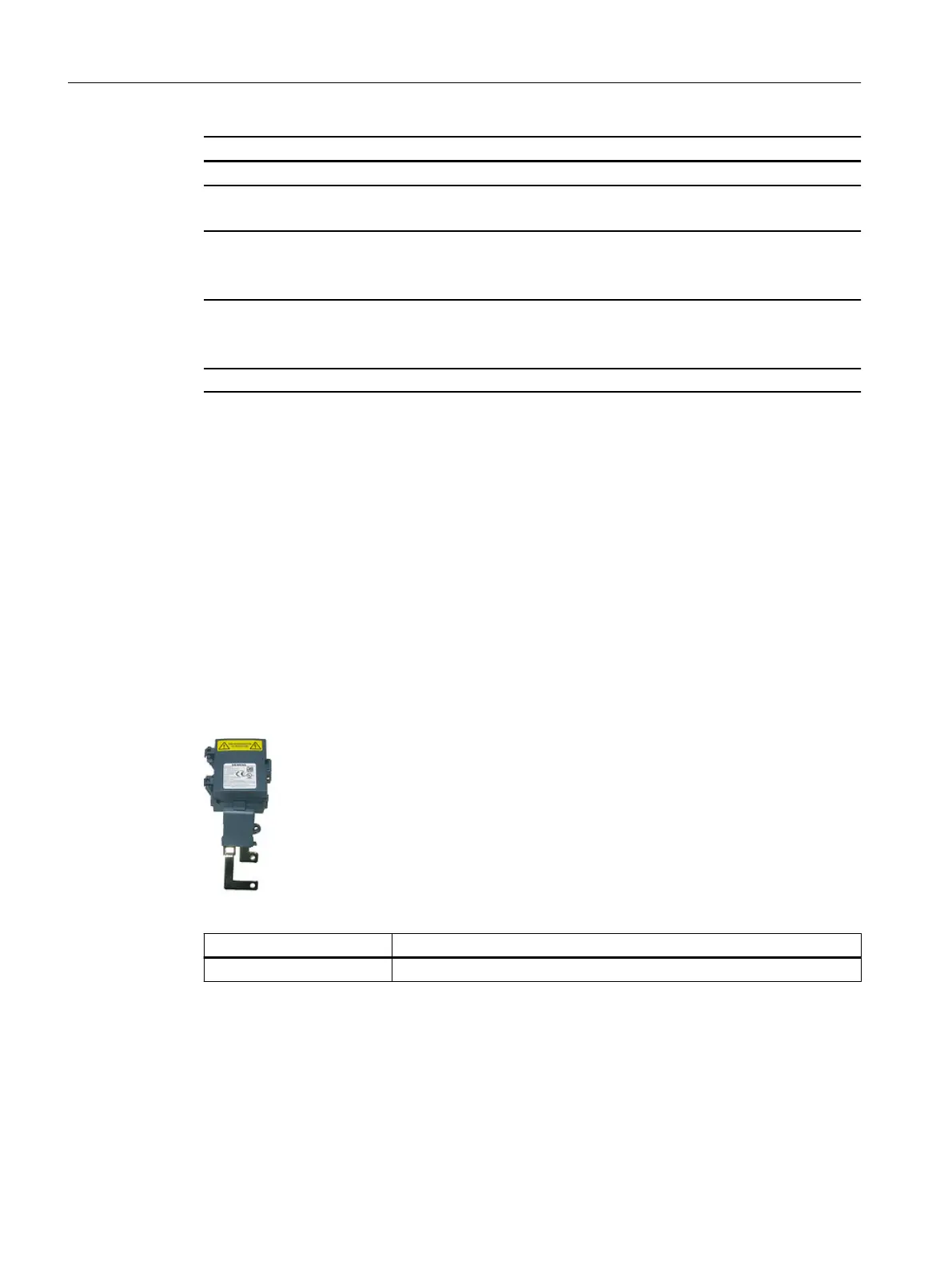

Figure11-12 72A DC link adapter
Article number Technical data
6SL3162-2BE00-0AA0 Rated current: 72A
Accessories
11.4DC link adapter
Booksize power units
