8.3.10.6 Attaching the connection plug
Requirement
Two identical connectors must be used on Double Motor Modules (both push-in connectors or
both screw connectors). It will not otherwise be possible to plug them into the module.
Procedure
The connection plug has a catch. This snaps into the opening provided on the Motor Module.

① Openings for catches at socket X1 for Single Motor Modules or X1 and X2 for Double Motor
Modules

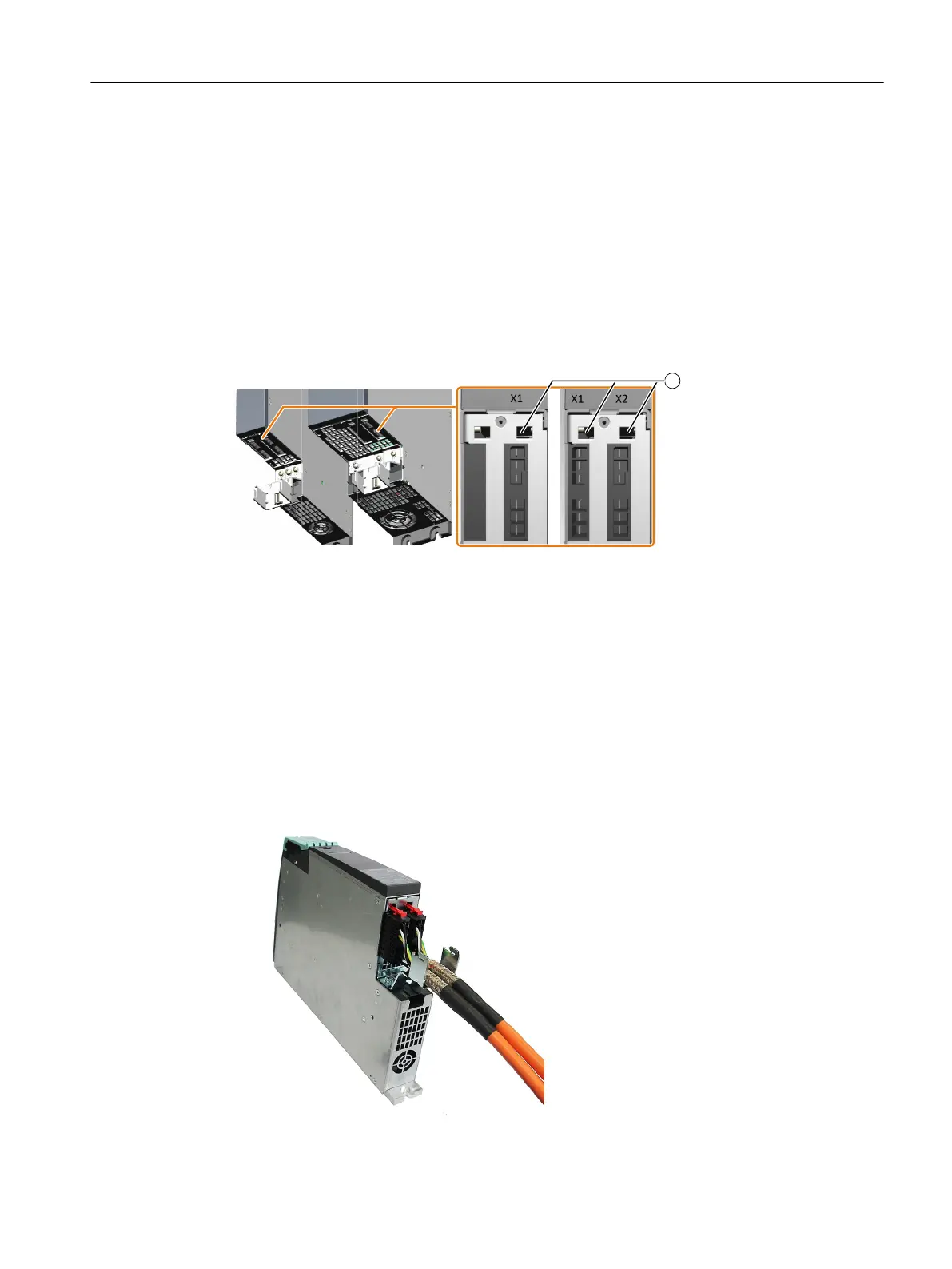

Figure8-29 Attaching connection plug to Motor Modules 3...30A and 2x3A...2x18A
Proceed as follows to attach the connection plug:
1. Route the power cables through the shield connection plate.
2. For Single Motor Modules insert the connection plug into socket X1 and for Double Motor
Modules, into sockets X1 and X2.
Result
The motor cable is connected at the Motor Module.
Figure8-30 Example: Motor cable connected to a Double Motor Module with 2connection plugs
