Procedure


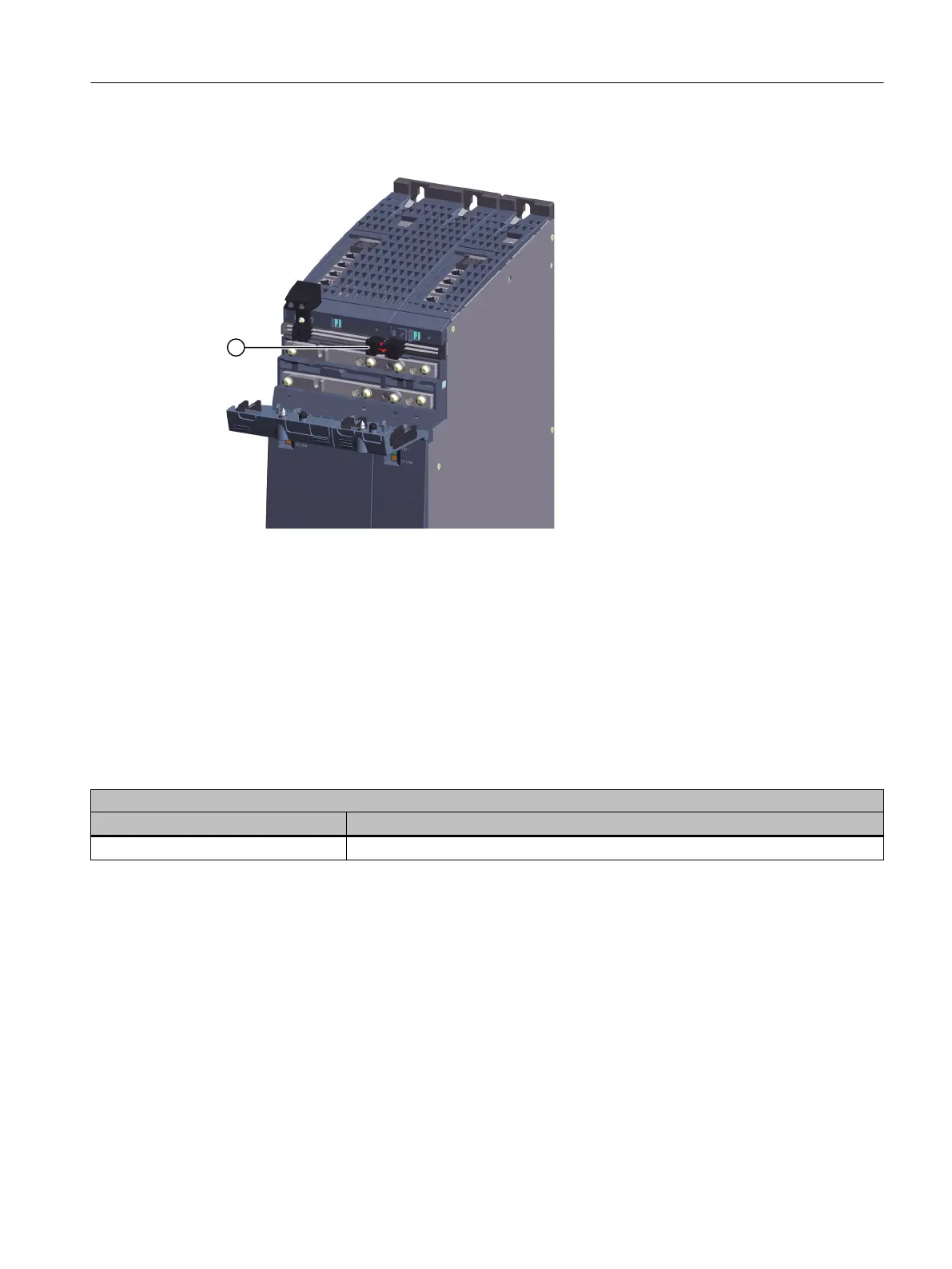

① Mounted 24V connector
Figure5-8 Connecting the 24 V busbars
Proceed as follows to insert the 24 V connector:
1. Place the 24V connectors on to the 24V busbars.
2. Press the 24V connectors down until they click into place.
5.5.2 Order data for the 24 V connector
24 V connectors can be ordered as replacement parts.
X24: 24V jumpers
Article number Description
6SL3162-2AA01-0AA0 24 V connectors for all Line Modules and Motor Modules in the booksize format
5.6 Information on routing cables 24 V conductors
Overview
Cables for the 24 V supply should be treated just like signal cables.
Mounting
5.6Information on routing cables 24 V conductors
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 93
