Result
You have secured the line supply cable shield to the Smart Line Module shield connection plate
using a hose clamp.

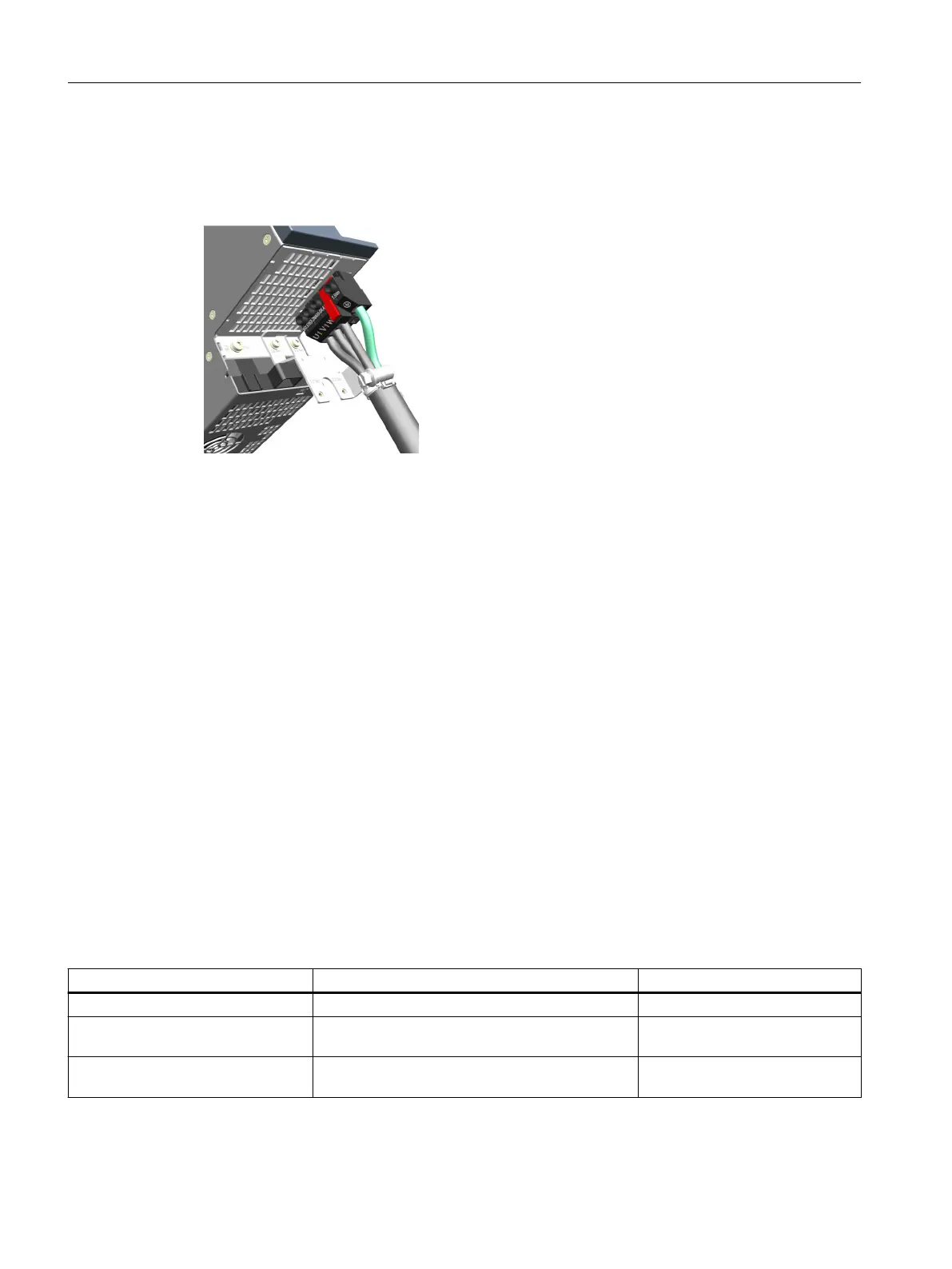

Figure7-17 Shield support with hose clamp
7.12.9 Connect the cable shield using the shield connection clamp
Overview
If a shielded line supply cable is used, it is also possible to connect the line supply cable shield
using an optional additional shield connection plate and a shield connection clamp.
This method has the advantage that it provides better contact and makes it easier to connect
the shield. It is therefore recommended that the line supply cable shield always be connected
using the optional additional shield connection plate.
The optional additional shield connection plate and the shield connection clamp are not
included in the scope of delivery and will need to be ordered.
Requirement
The following requirements must be satis󹪝ed:
• The line supply cable is connected at the Smart Line Module.
• Use the following shield connection plate and the shield connection clamp appropriate for
the cable diameter.
Designation Use Article number
Optional shield connection plate - 6SL5166-1BD00-0AA0
Shield connection clamp Phoenix
SK28
For shielded cables with a cable diameter of up to
20mm
8WH9130-0NA00
Shield connection clamp Phoenix
SK35
For shielded cables with a cable diameter of be‐
tween 20mm and 35mm
8WH9130-0PA00
