11.3.2.2 DRIVE-CLiQ cabinet bushing for M12 plug/socket

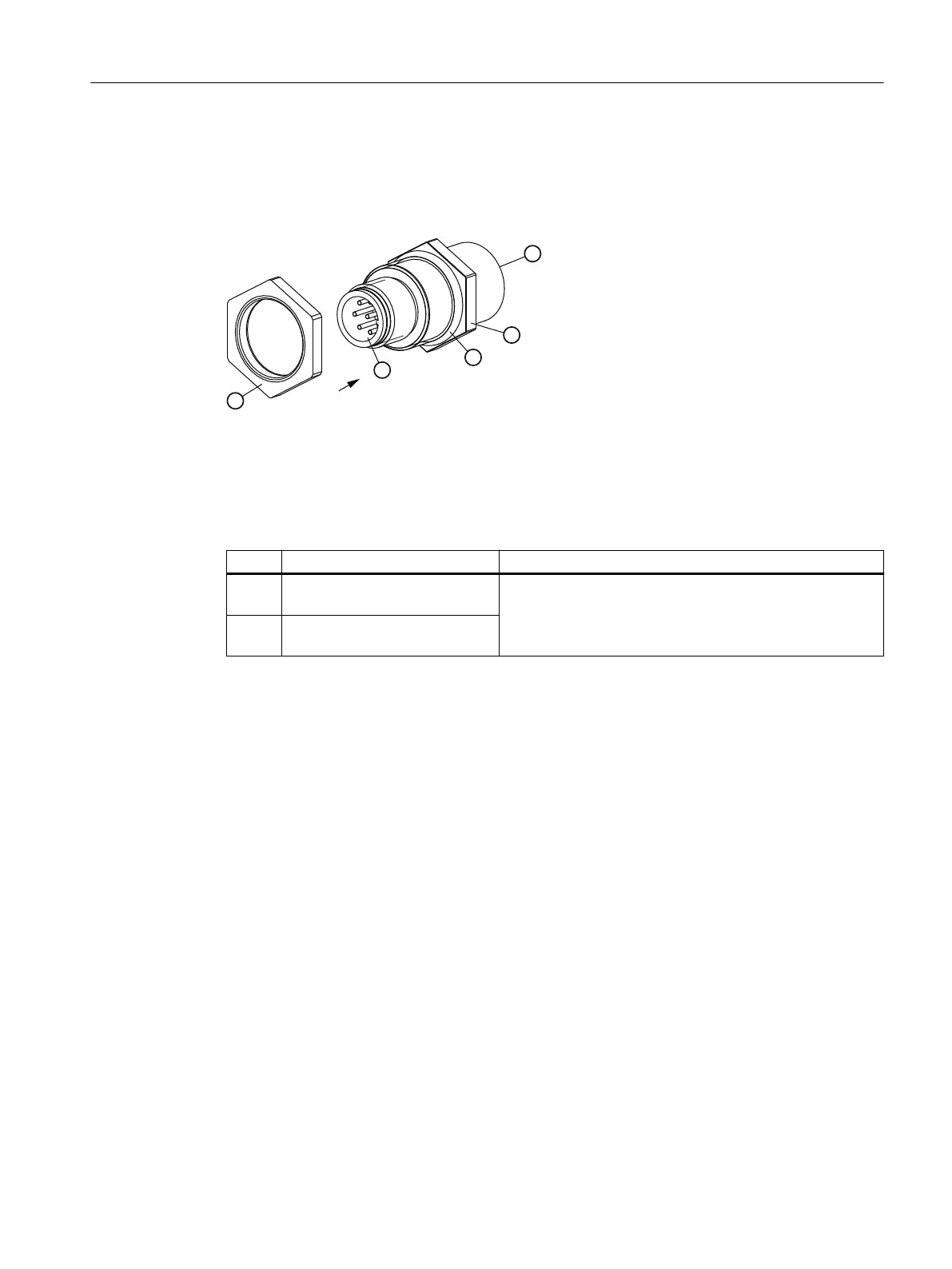

Description
4
2
3
5
1
① DRIVE-CLiQ interface with M12 socket (8-pin)
② Flange, size 18
③ Seal
④ DRIVE-CLiQ interface with M12 plug (8-pin)
⑤ Nut, size 20, tightening torque: 3...4Nm (26.6...35.4lbfin)
Figure Pin assignment Technical data
① DRIVE-CLiQ interface with M12
socket
8-pin to connect MOTION-CONNECT DRIVE-CLiQ signal ca‐
bles with degree of protection IP67
1)
④ DRIVE-CLiQ interface with M12
plug
1)
The IP67 degree of protection is only achieved with the DRIVE-CLiQ signal cables connected.
Accessories
