6. Using pliers, break out the cutout in the protective ap.
7. Close the protective ap until you hear it snap into place.
11.4.3.5 Connecting cables
Requirement
The following requirements must be satised to connect the cables to the DC link adapter:
• Dimension the cross-section of the connecting cables according to the current demand of all
connected components.
• The connecting cables must be appropriately protected.
Required tools:
• Slotted screwdriver 0.8x4.0mm
Procedure
[PP
1POEILQ

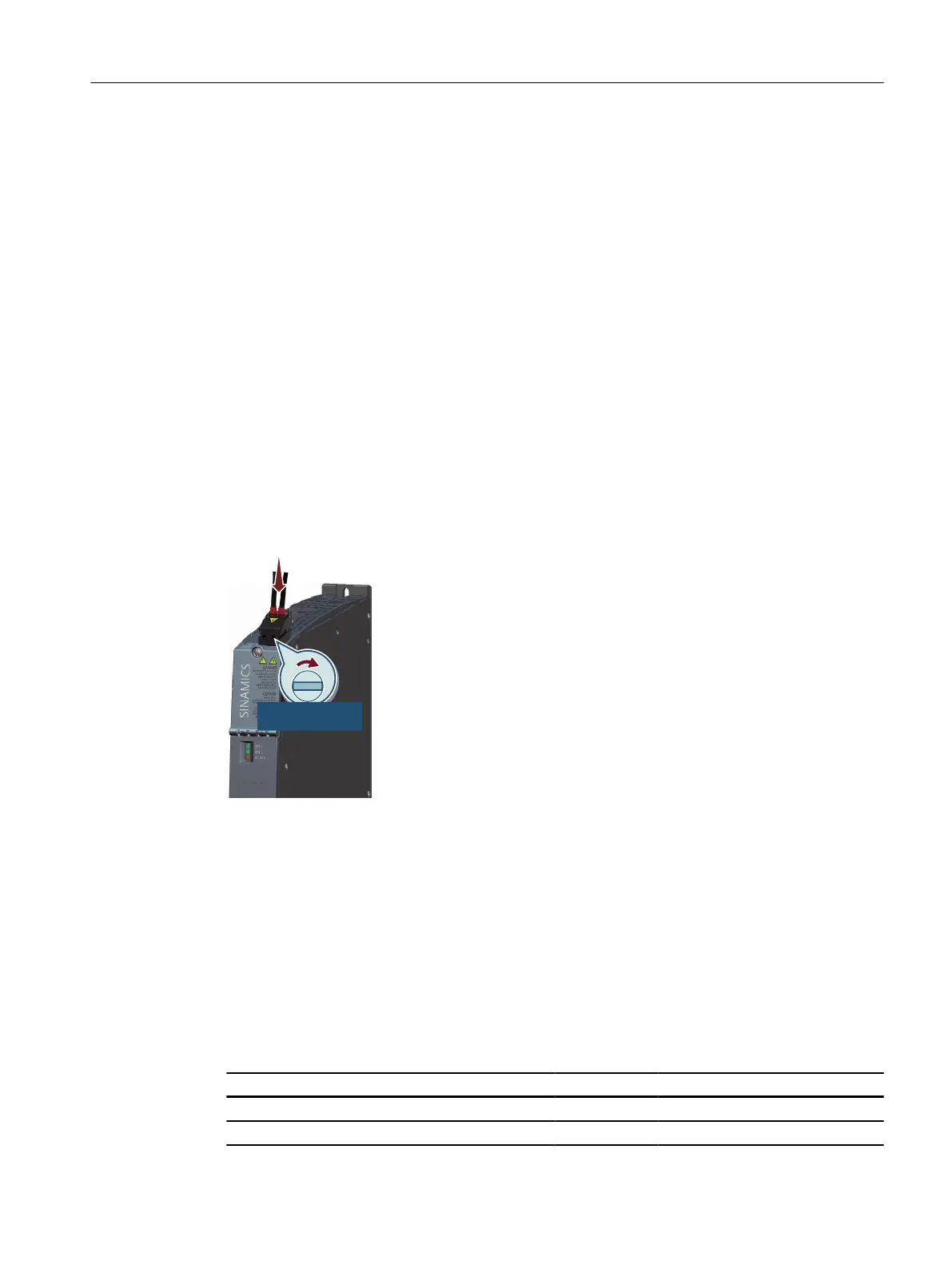

Figure11-11 Connecting cables to the 43A DC link adapter
Proceed as follows to connect the cables to the DC link adapter:
Attach the DC link connecting cables to the DC link adapter. Slotted screwdriver 0.8 x 4.0 mm.
Tightening torque: 1.8Nm (15.9lbfin)
11.4.3.6 Technical data
Technical data
Table 11-6 DC link adapter 43A (6SL3162-2BD00-0AA0)
Feature Unit Value
Supply voltage V 495...720
Continuous current-carrying capacity at 55°C A 43
Accessories
11.4DC link adapter
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 285
