Siemens SINAMICS S220

8.3 Motor Modules 3 ... 30 A and 2x3 ... 2x18 A
8.3.1 Interfaces and connections
8.3.1.1 Interfaces (front and upper side)
Overview diagram
;
;
;;;;






① X200 - X202: DRIVE-CLiQ interfaces for Single Motor Modules
X200 - X203: DRIVE-CLiQ interfaces for Double Motor Modules
② X21 (Single Motor Modules) or X21/X22 (Double Motor Modules): EP terminal/temperature sen‐
sor
③ Connection for the 24 V adapter (optional)
④ 24 V busbar
⑤ DC link busbars
⑥ Releasing the protective 󹪞ap

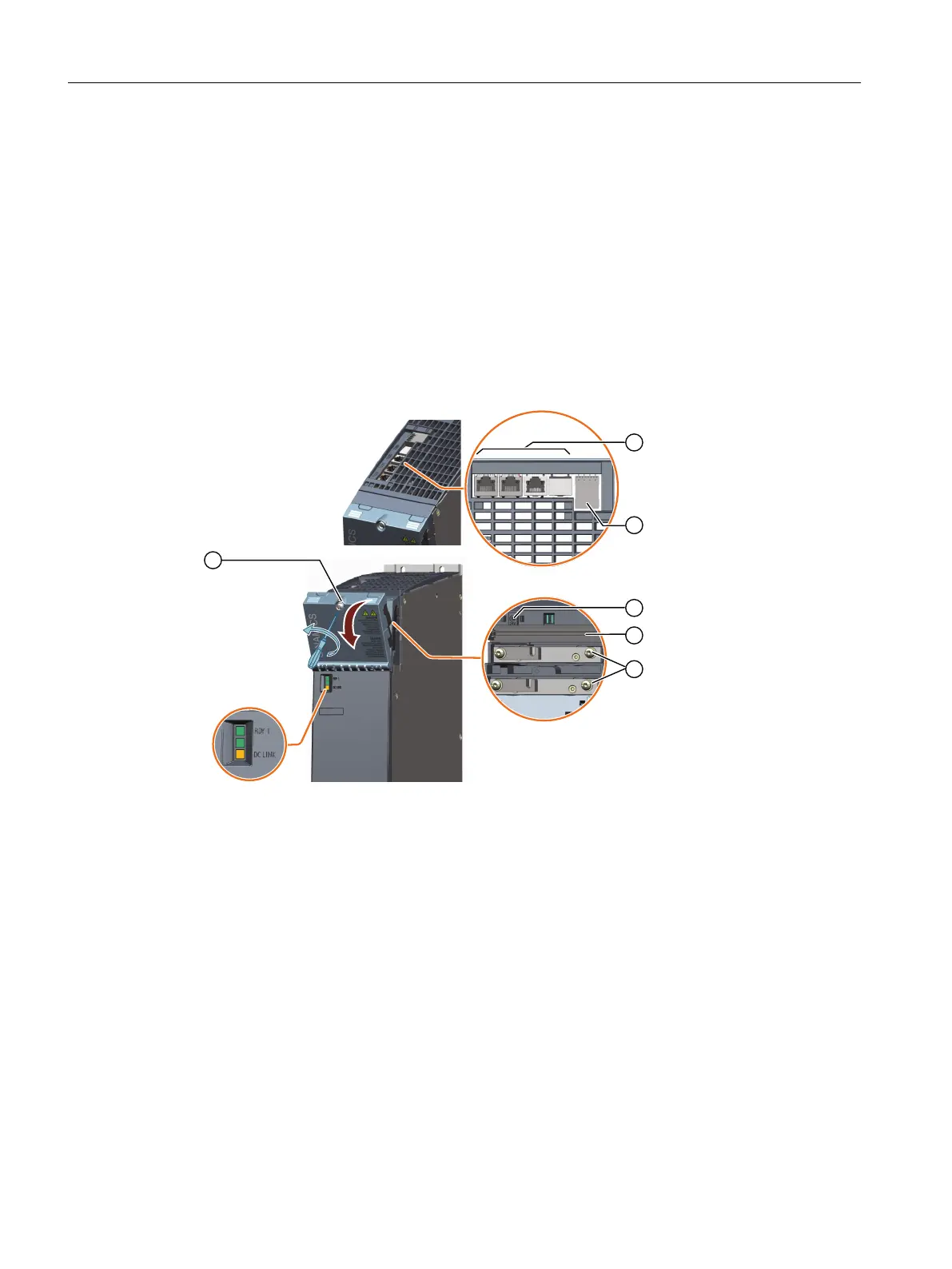

Figure8-3 Interface overview of Motor Modules 3 ... 30 A, 2x3 ... 2x18 A (front and upper sides)
Motor Modules
8.3Motor Modules 3 ... 30 A and 2x3 ... 2x18 A
Booksize power units
154 Equipment Manual, 09/2023, A5E53307519B AA
