Siemens SINAMICS S220

Proceed as follows to mount the shield connection plate:
1. Prepare the mounting panel.
2. Fasten the shield connection plate to the mounting panel using screws at the prepared
distance.
3. Tighten the screws. Tightening torque: 6Nm (53.1lbfin)
8.5.9 Mounting the fan
Overview
The fan must also be mounted when mounting Motor Modules 85A...200A.
Install the fan module provided with the Motor Module.
Requirement
Note the following before installing the fan module in the Motor Module:
• The shield connection plate is mounted.
Required tool:
• T20 torx screwdriver
Procedure



1P
OEILQ


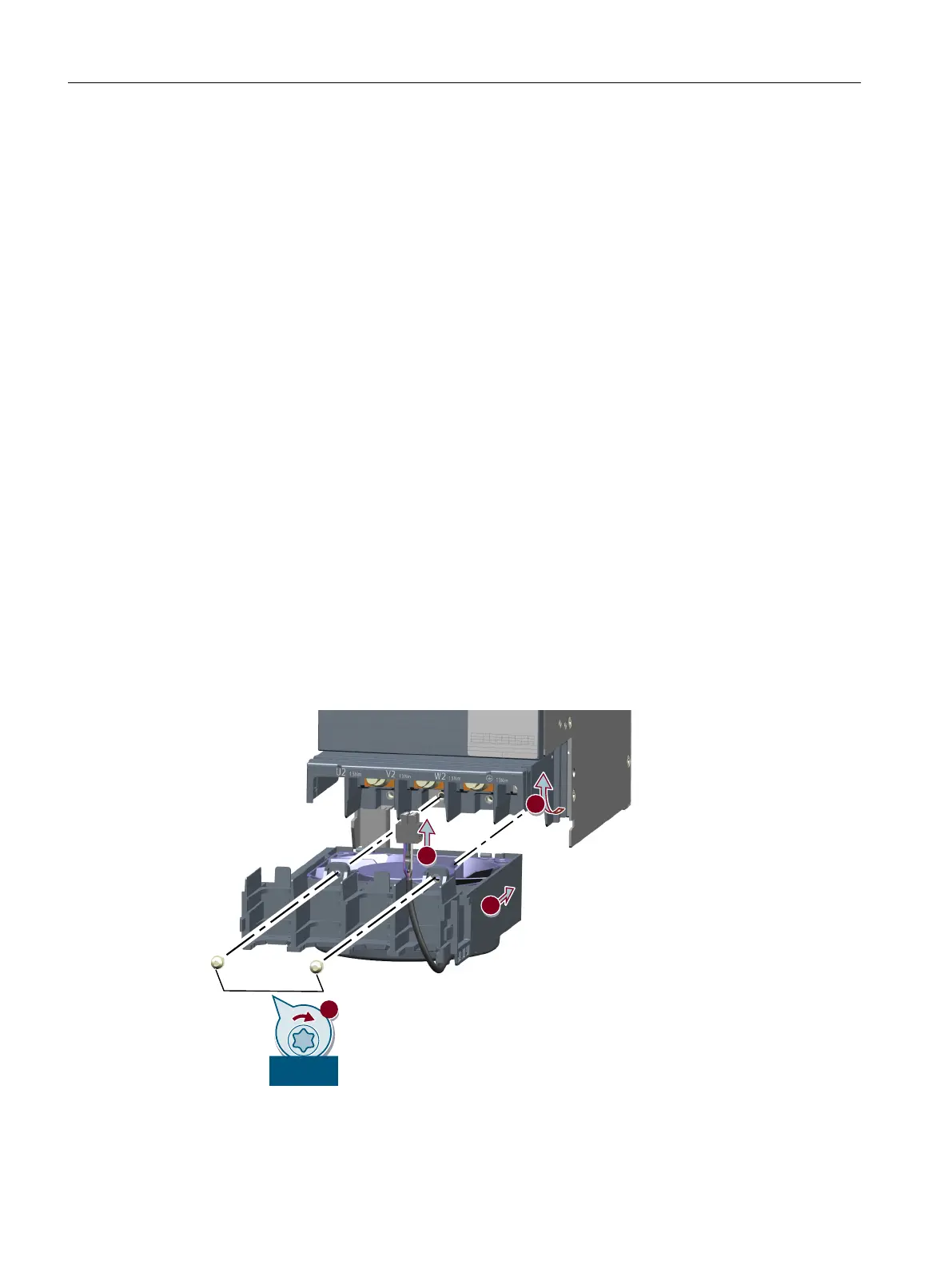

Figure8-79 Mounting the fan
Motor Modules
8.5Motor Modules 85 A, 132 A and 200 A
Booksize power units
232 Equipment Manual, 09/2023, A5E53307519B AA
