7.12.3 Prepare end sleeves
Requirement
The following requirements must be satis󹪝ed in order to crimp the end sleeves:
• You will need a crimping tool. We recommend the following crimping tool from Weidmüller
(www.weidmueller.com):
– Type PZ 6/5, article number 9011460000
• Use end sleeves compliant with DIN46228.
Procedure
Fit end sleeves on the line supply cable as follows:
1. Match the cross-sections of the end sleeves and the line supply cable according to the
following table.
2. Crimp the end sleeves.

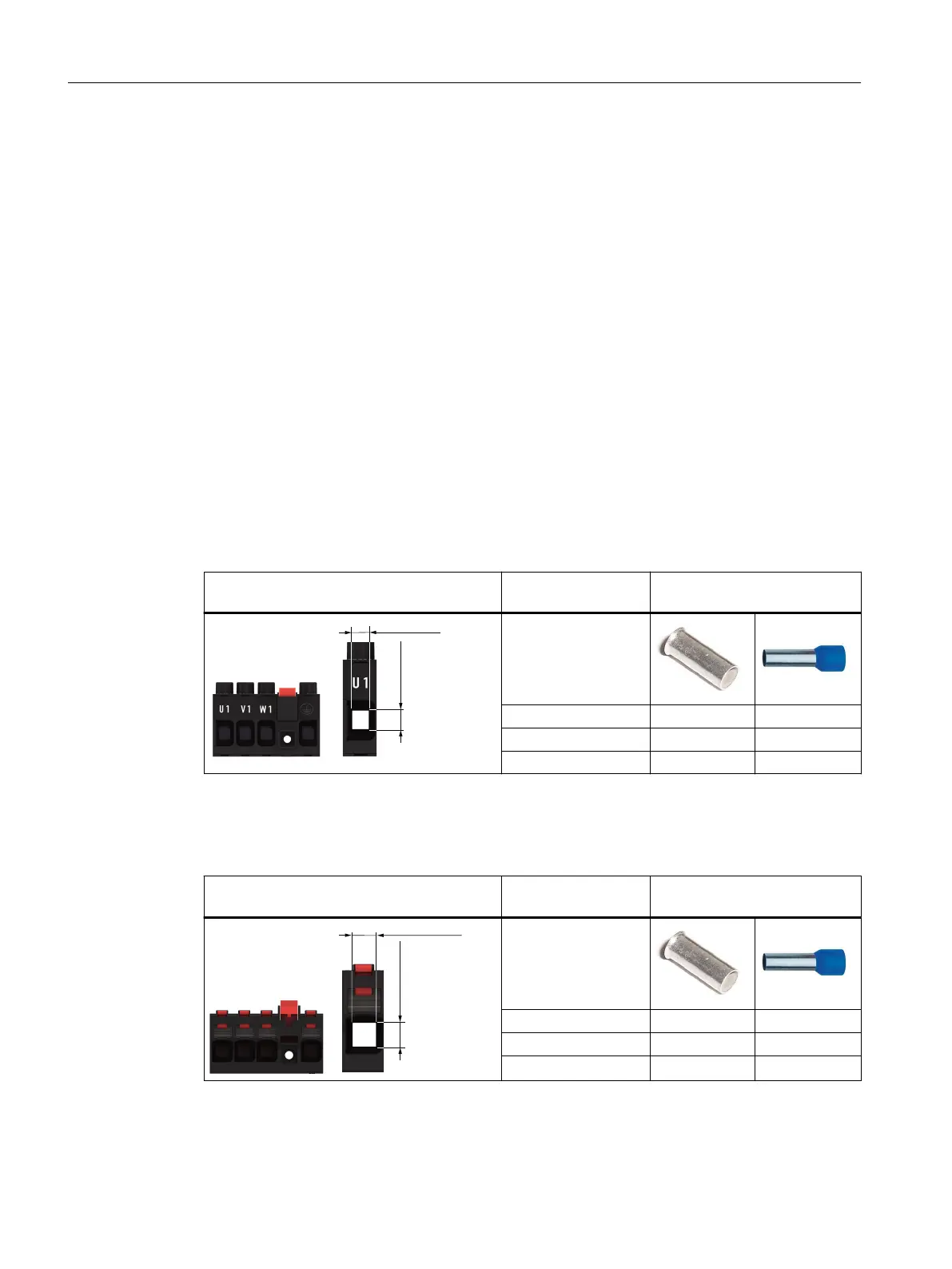

Table 7-11 Connection plug with screw terminal (6SL5166-2NA00-0AA0)
Dimensions of the terminal openings Permissible conduc‐
tor cross-sections
End sleeve
PPLQ
PPLQ

6mm
2
(AWG 10) ✓ ✓
10mm
2
(AWG 8) ✓ ✓
16mm
2
(AWG 6) ✓
1)
✓
1)
1)
When crimped, end sleeves must not exceed the maximum dimensions of 5.3 x 5.3 mm (0.21 x 0.21 in).
Table 7-12 Connection plug with push-in connection (6SL5166-2NB00-0AA0)
Dimensions of the terminal openings Permissible conduc‐
tor cross-sections
End sleeve
PPLQ
PPLQ

6mm
2
(AWG 10) ✓ ✓
10mm
2
(AWG 8) ✓ ✓
16mm
2
(AWG 6) ✓
1)
✓
1)
1)
When crimped, end sleeves must not exceed the maximum dimensions of 6.5 x 5.47mm
(0.26x0.22in).
