11.4.4.3 Connectable cable cross-sections
Description
Table 11-7 Connection cross-sections of the cable for the DC link adapter 72A
Feature Cable cross-sections
Cable cross-sections Single core connection:
10...35mm
2
(AWG8...2)
Stripped length According to the cable lug
11.4.4.4 Selecting cable lugs
Description
Here you can see the dimensions of the DC link adapter for selecting the ring or pipe-type cable
lug.
C
B
DE

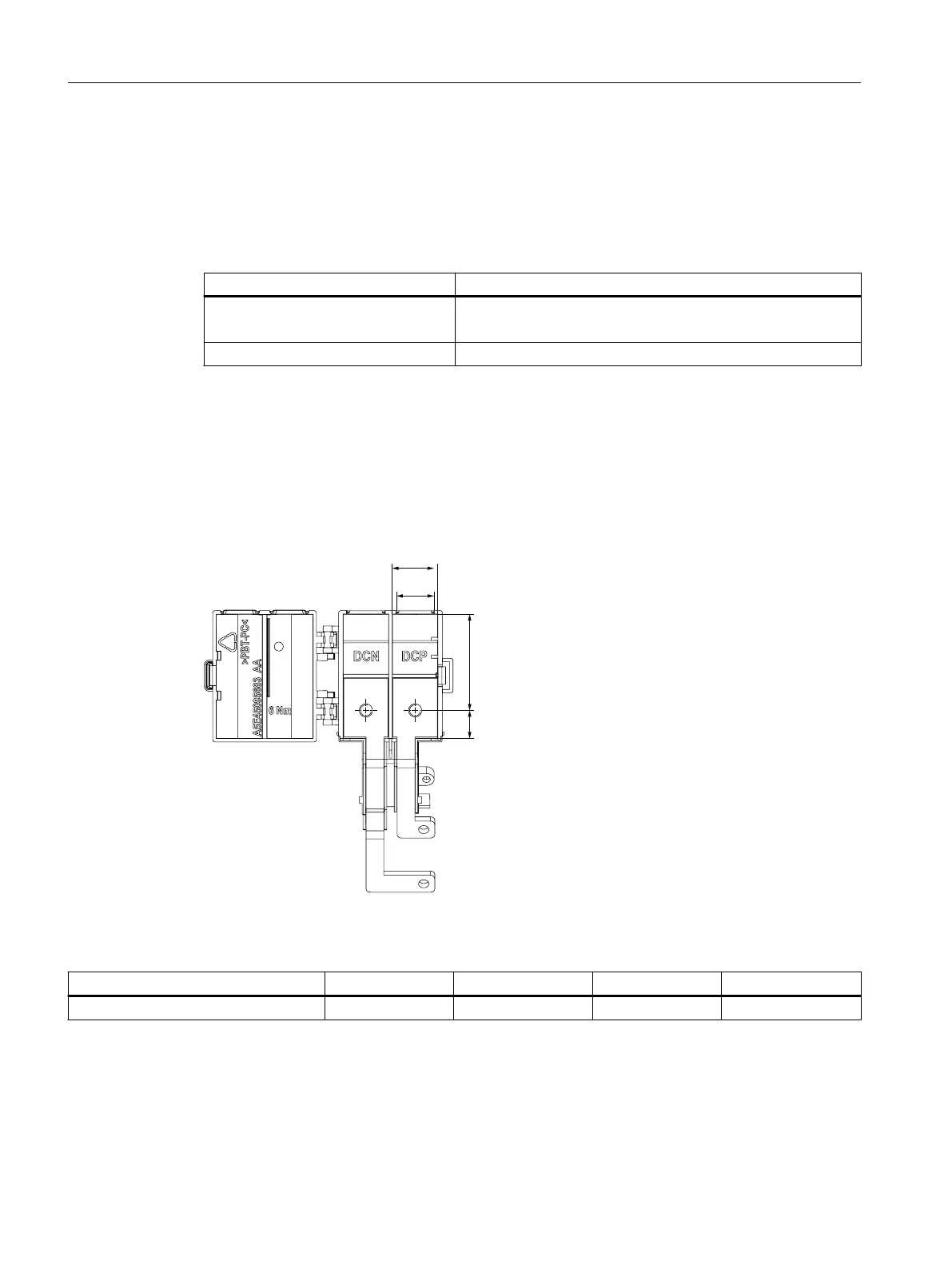

Figure11-14 Mounting the 72A DC link adapter
Table 11-8 Dimensions of the DC link adapter 72A in mm (inch)
 a b c d
Maximum dimensions 20.4 (0.8) 17 (0.67) 12.6 (0.5) 43.4 (1.71)
For UL applications, only use UL-approved ring or pipe-type cable lugs (ZMVV) certi󹪝ed for
the particular voltage. The permissible current must be at least 125% of the input or output
current. Use the higher value as basis.
