Siemens SINAMICS S220

11.4.5.5 Connecting cables
Requirement
The following requirements must be satis󹪝ed to connect the cables to the DC link adapter:
• Dimension the cross-section of the connecting cables according to the current demand of all
connected components.
• The connecting cables must be appropriately protected.
Required tools:
• Allen key size6
Procedure
1POEILQ

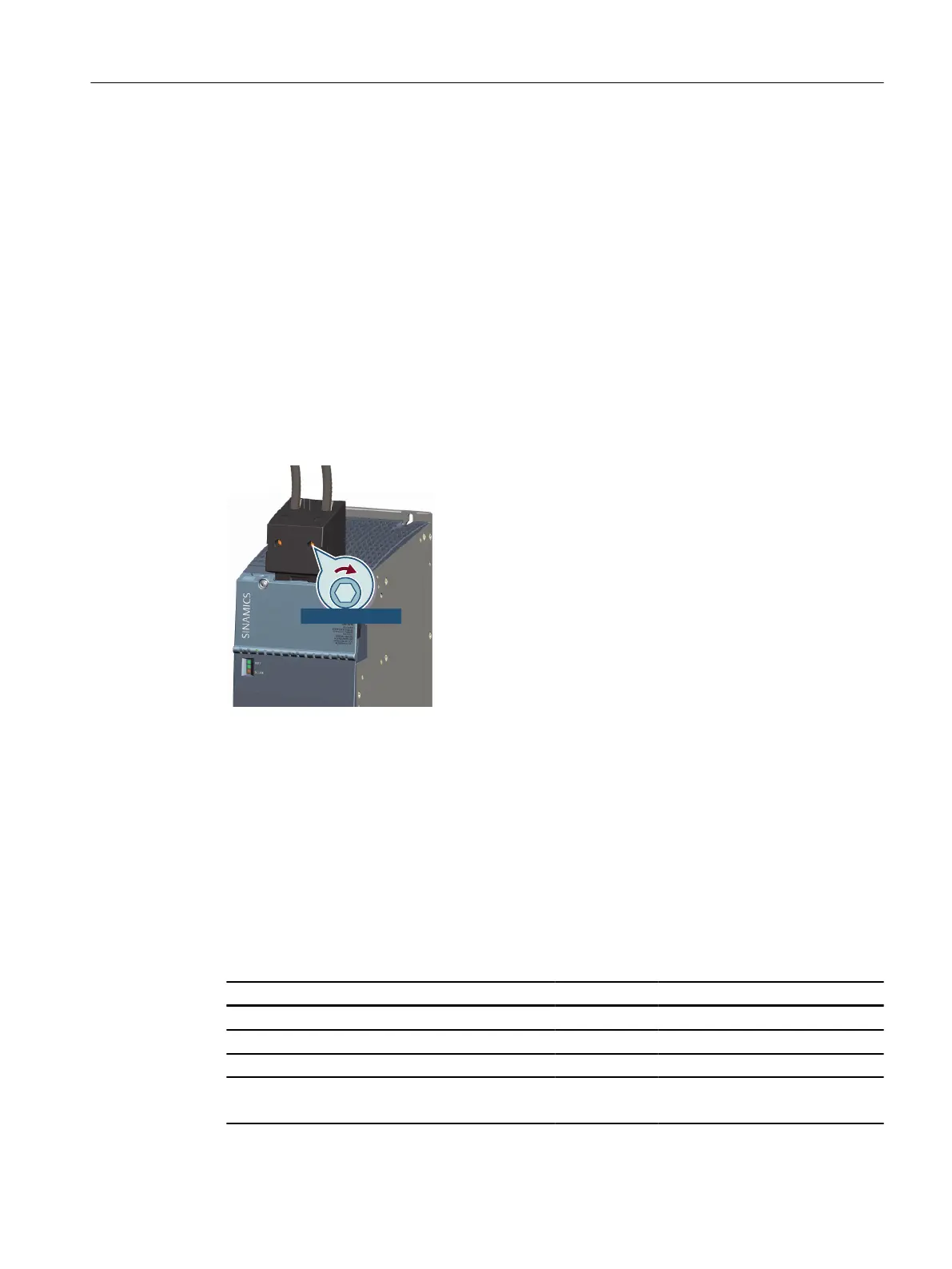

Figure11-20 Connecting cables to the 200A DC link adapter
Proceed as follows to connect the cables to the DC link adapter:
Attach the DC link connecting cables to the DC link adapter. Allen key size 6. Tightening
torque: 13Nm (115lbfin)
11.4.5.6 Technical data
Technical data
Table 11-11 DC link adapter 200 A (6SL3162-2BM00-0AA0)
Feature Unit Value
Supply voltage V 495...720
Continuous current-carrying capacity at 55°C A 200
Maximum ambient temperature °C 55
DC link connection
Tightening torque

Nm (lbfin)
Hexagon socket head screw size 6
13(115)
Accessories
11.4DC link adapter
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 297
